47. Crankshaft Rear Oil Seal and Housing Removal

Crankshaft Rear Oil Seal and Housing Removal

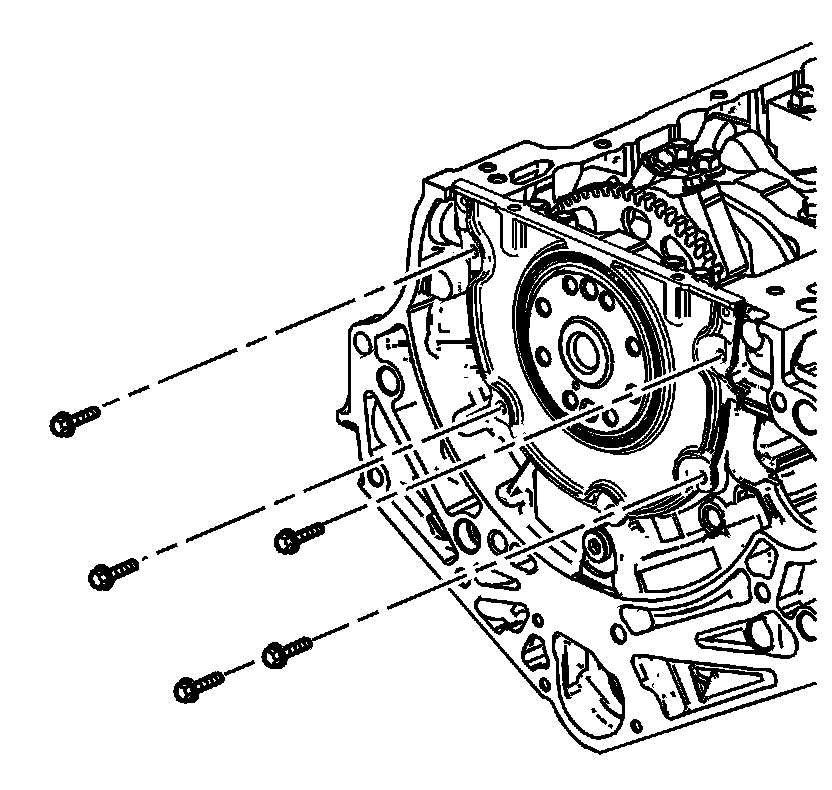

1. Remove the crankshaft rear oil seal housing bolts.

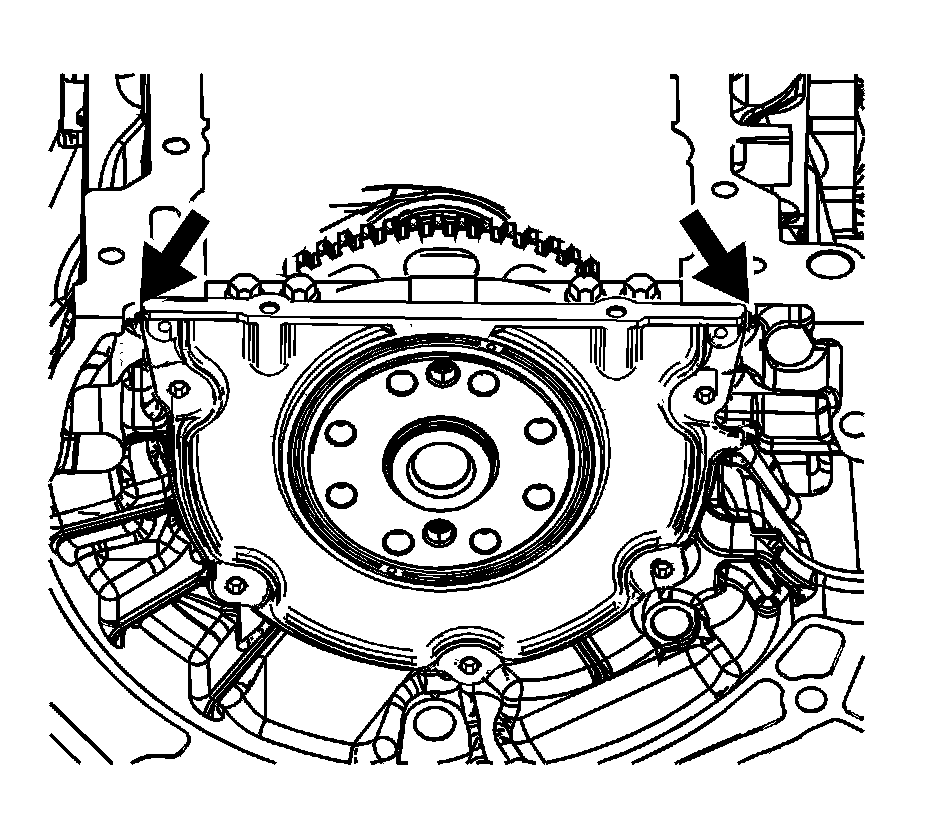

2. Using the pry points located at the edge of the crankshaft rear oil seal housing separate the RTV sealant.

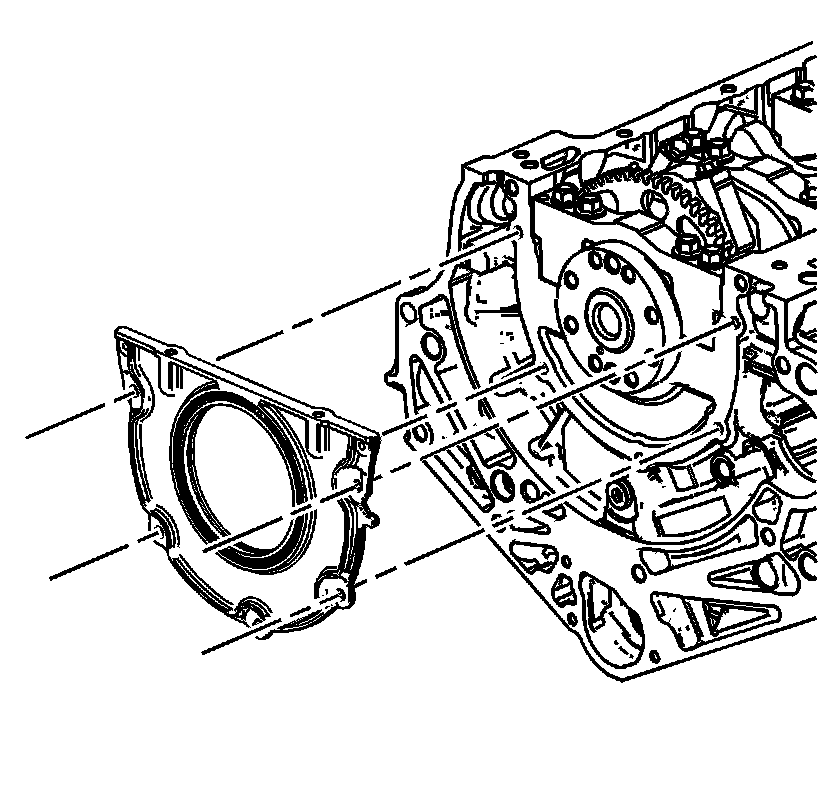

3. Remove and discard the crankshaft rear oil seal housing.
