Remote Switch: Locations




Luggage Compartment/Rear of Vehicle Component Views

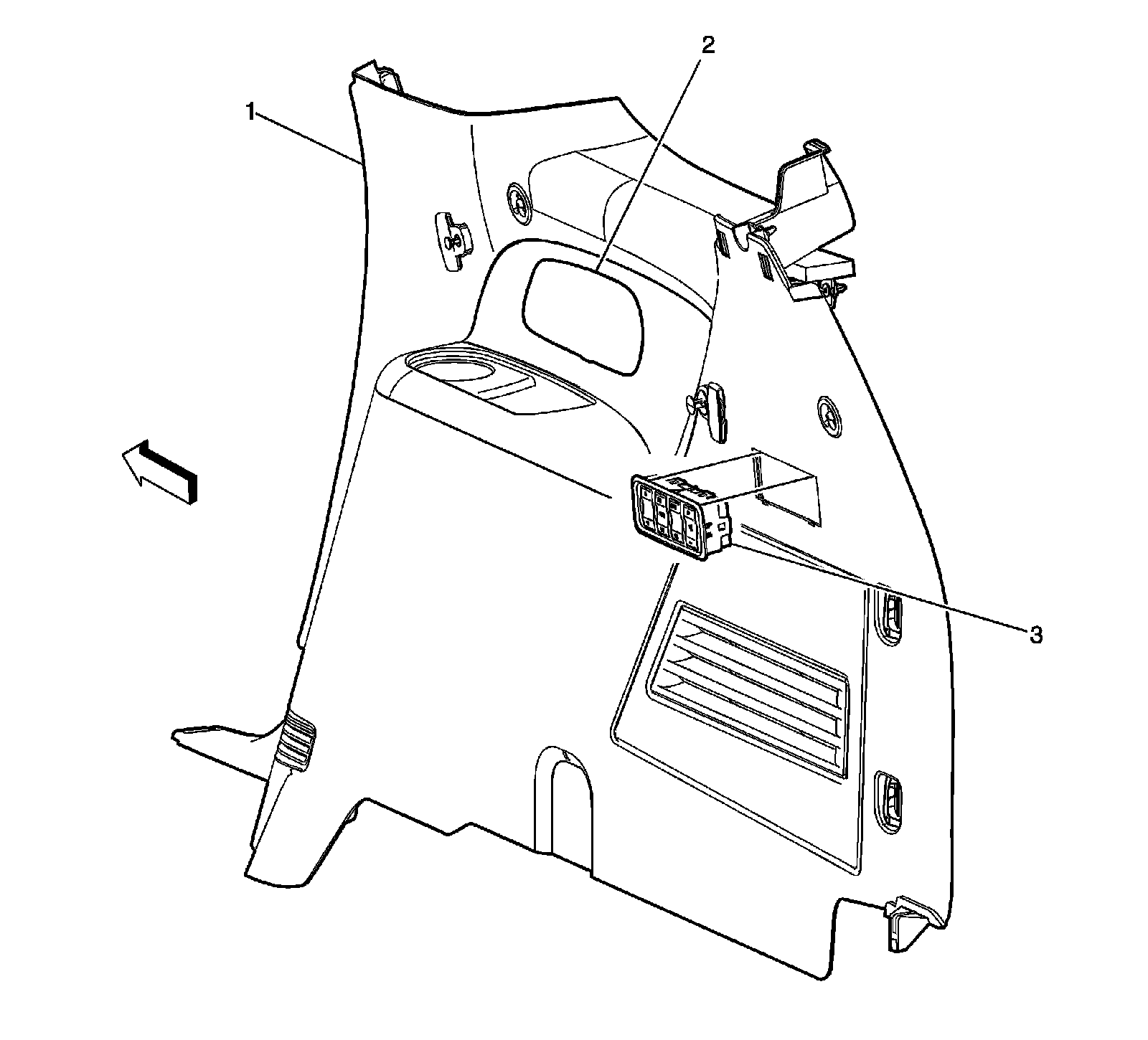

Right Rear Trim Panel





1 - Right Rear Trim Panel

2 - Speaker- Right Rear Compartment (UQA or UQS)

3 - Rear Seat Audio (RSA) Control (RCA)
