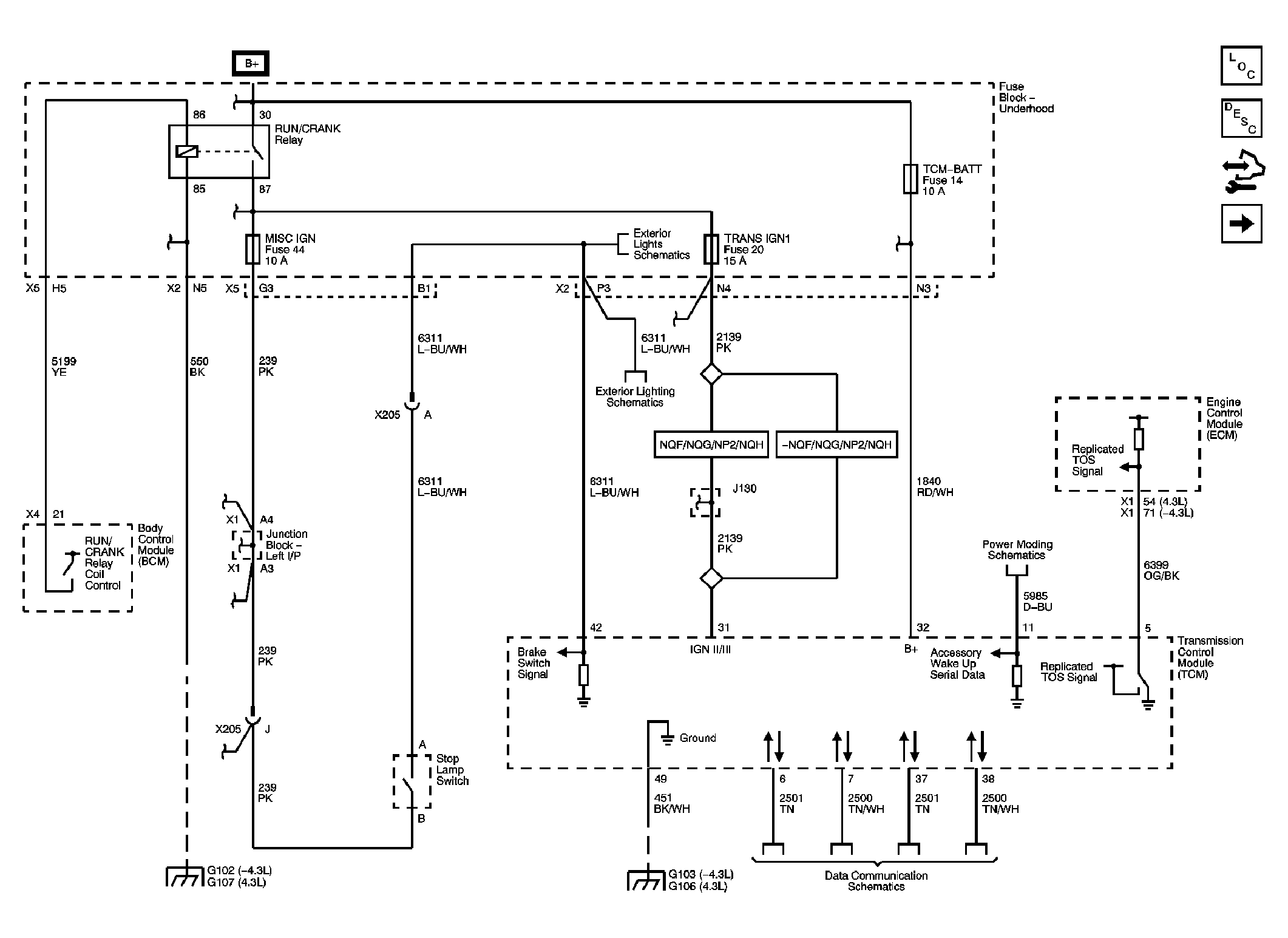

Fig 1: Module Power, Ground & Serial Data Schematic
Courtesy of GENERAL MOTORS CORP.

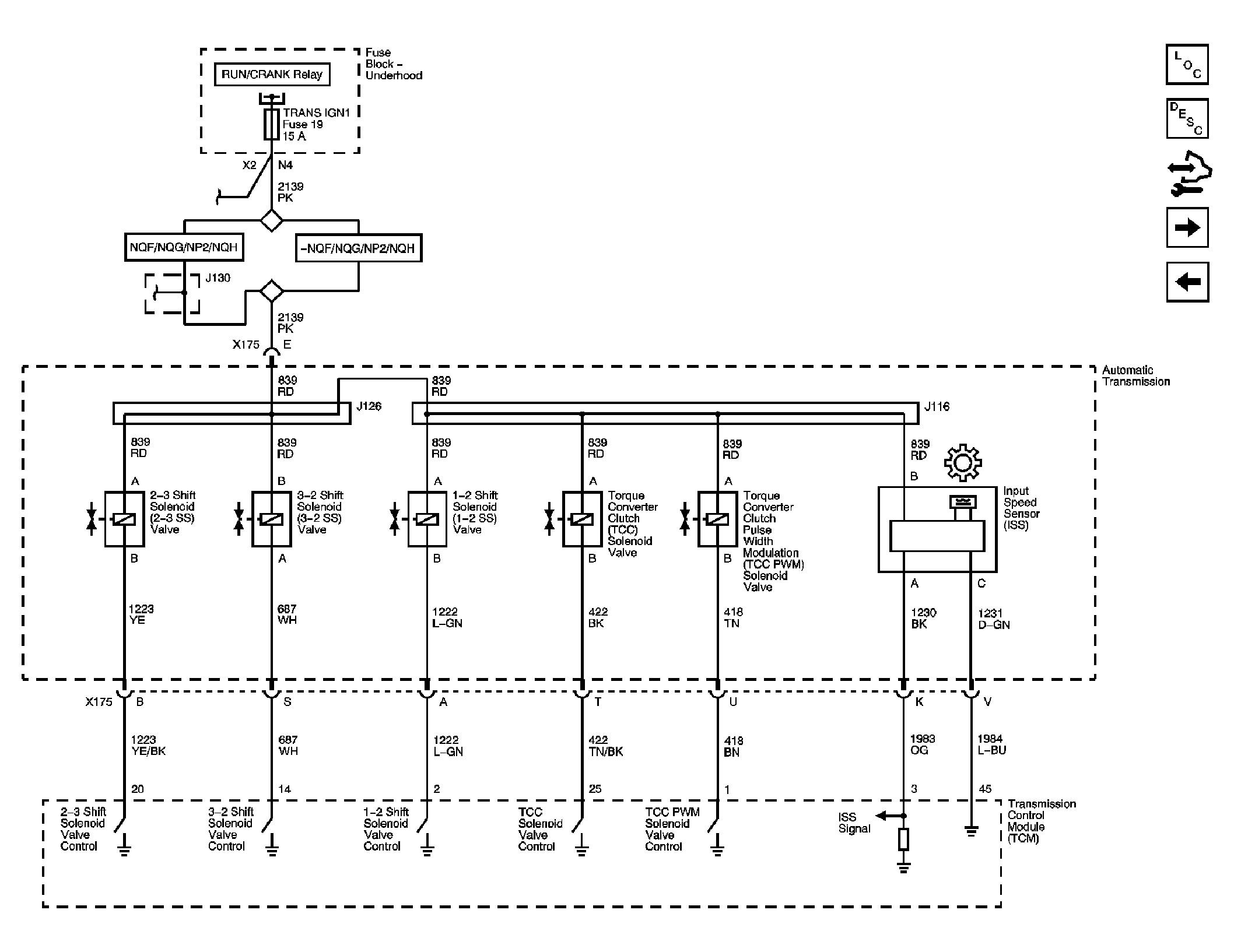

Fig 2: Shift Controls Schematic
Courtesy of GENERAL MOTORS CORP.

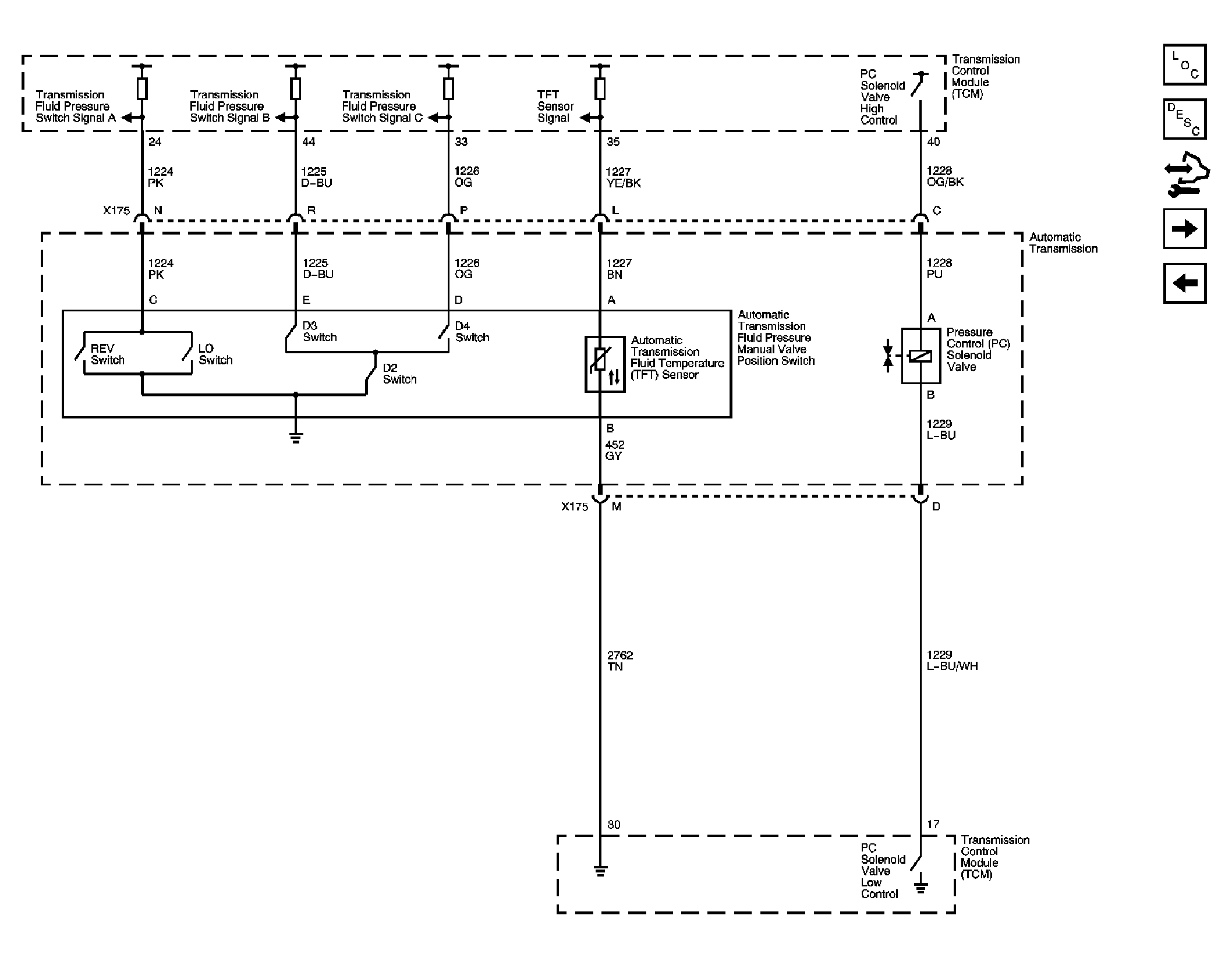

Fig 3: Pressure & Temperature Controls Schematic
Courtesy of GENERAL MOTORS CORP.

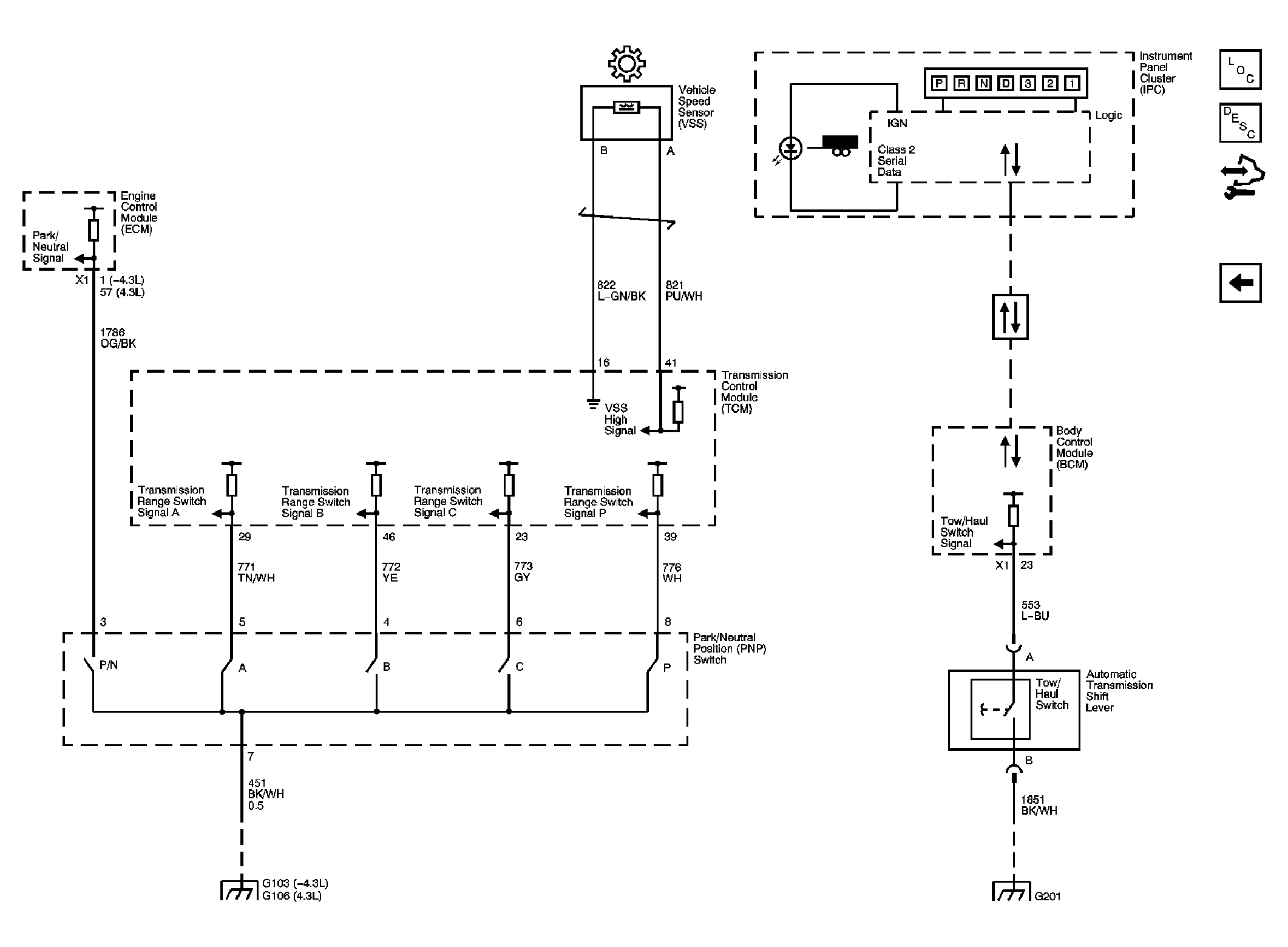

Fig 4: PNP Signals, VSS Signal & Tow/Haul Signal Schematic
