HVAC Schematics

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

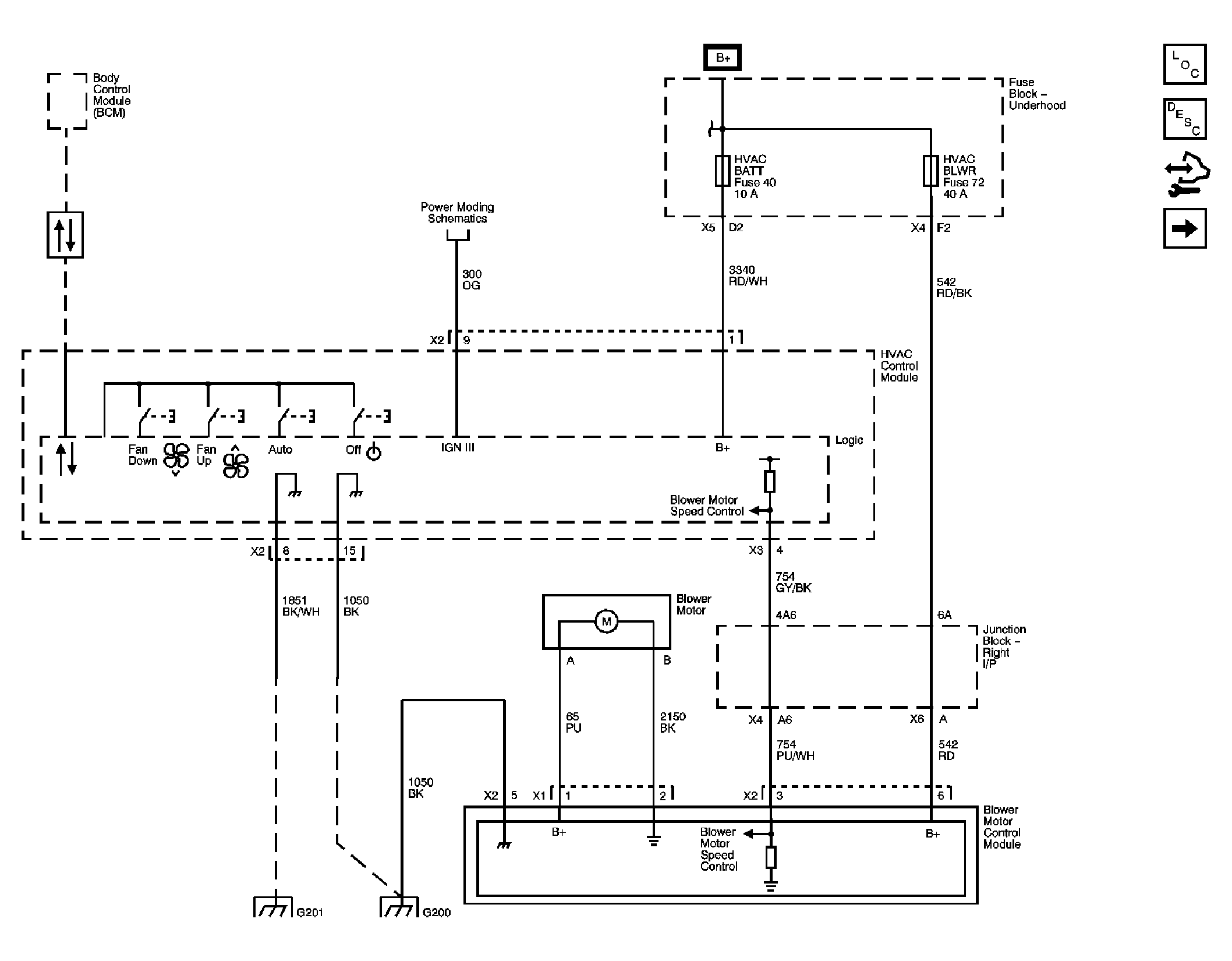

Fig 1: Module Power, Ground, Serial Data & Blower Controls Schematic

Courtesy of GENERAL MOTORS CORP.

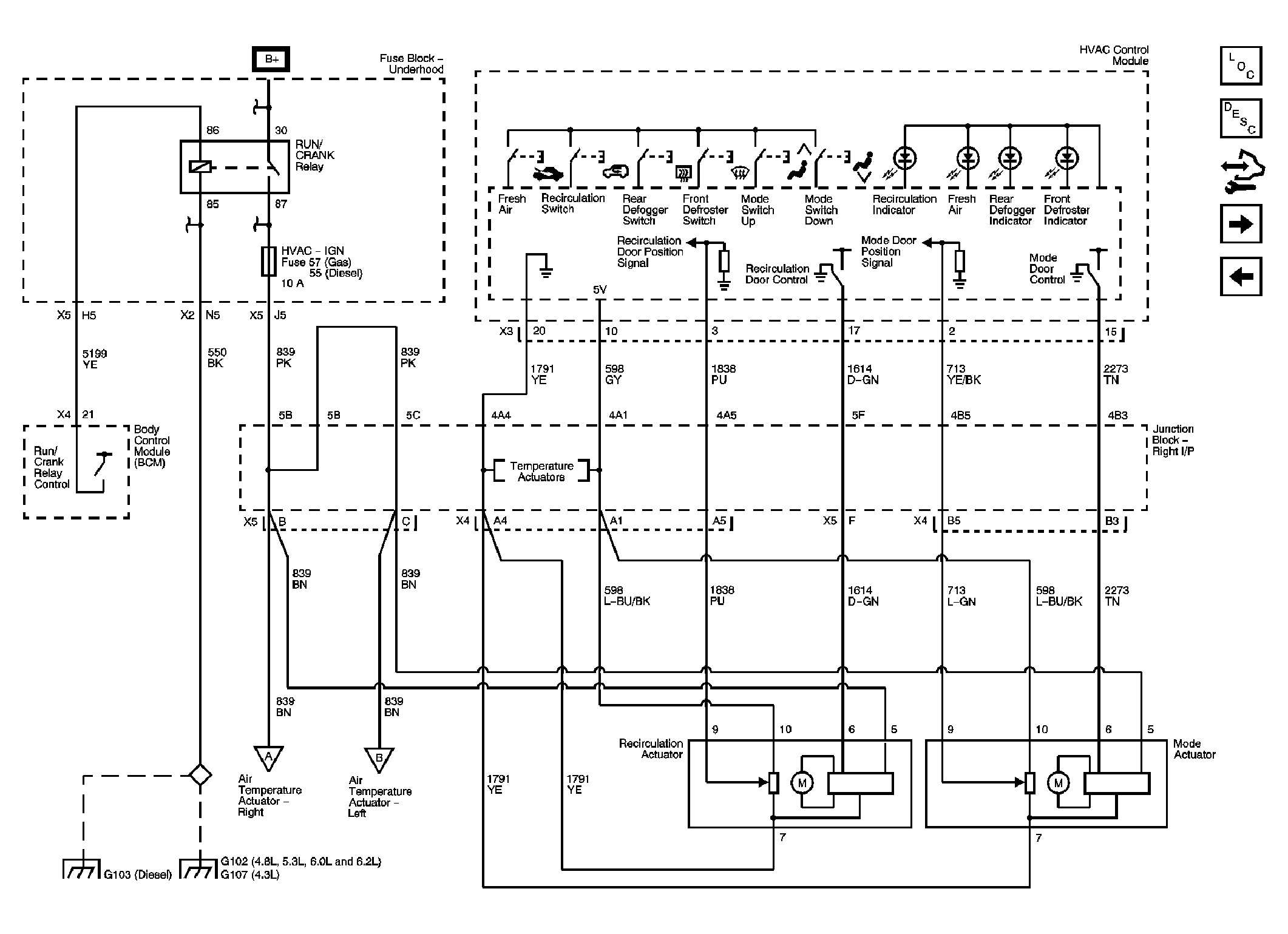

Fig 2: Mode Controls Schematic

Courtesy of GENERAL MOTORS CORP.

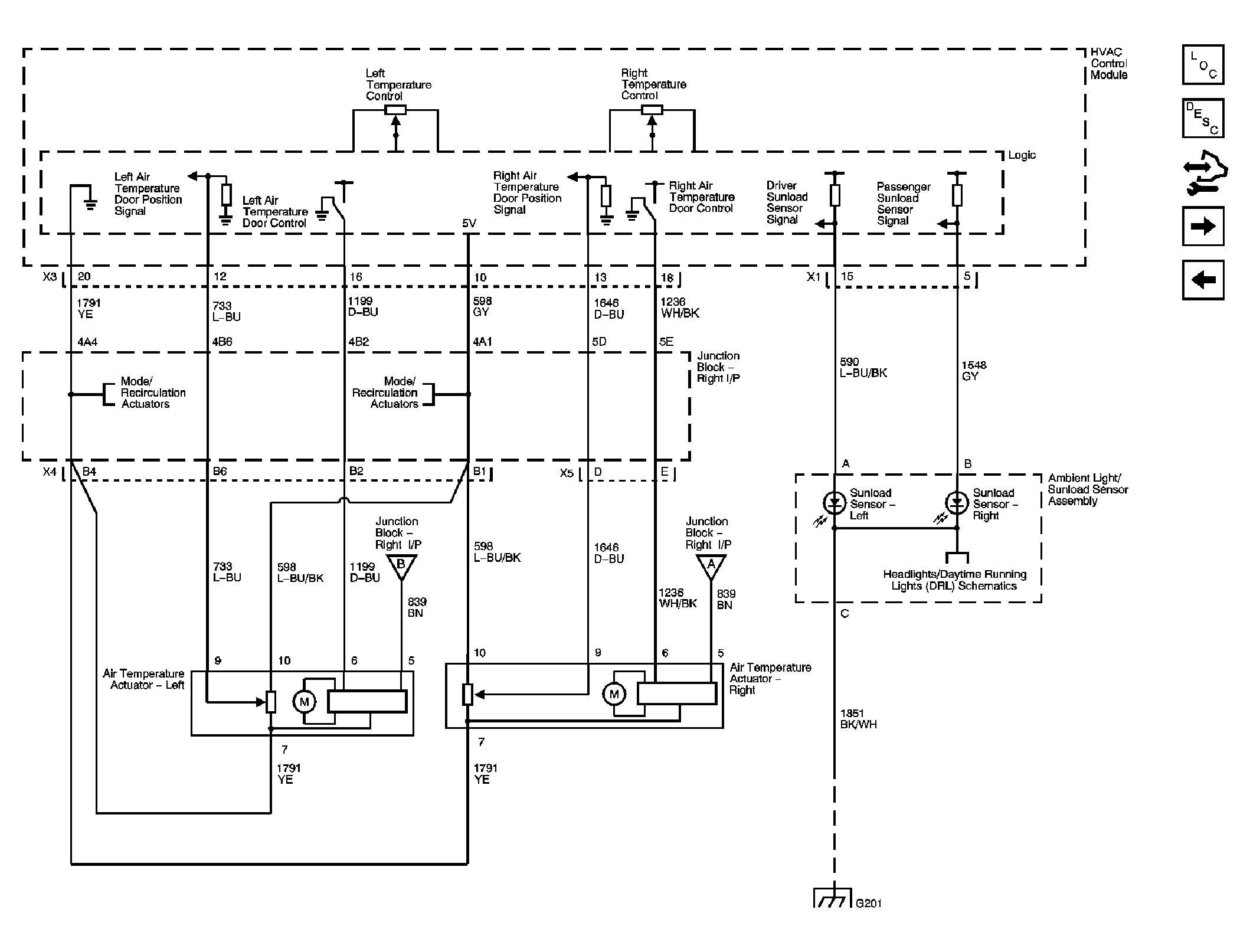

Fig 3: Temperature Controls Schematic

Courtesy of GENERAL MOTORS CORP.

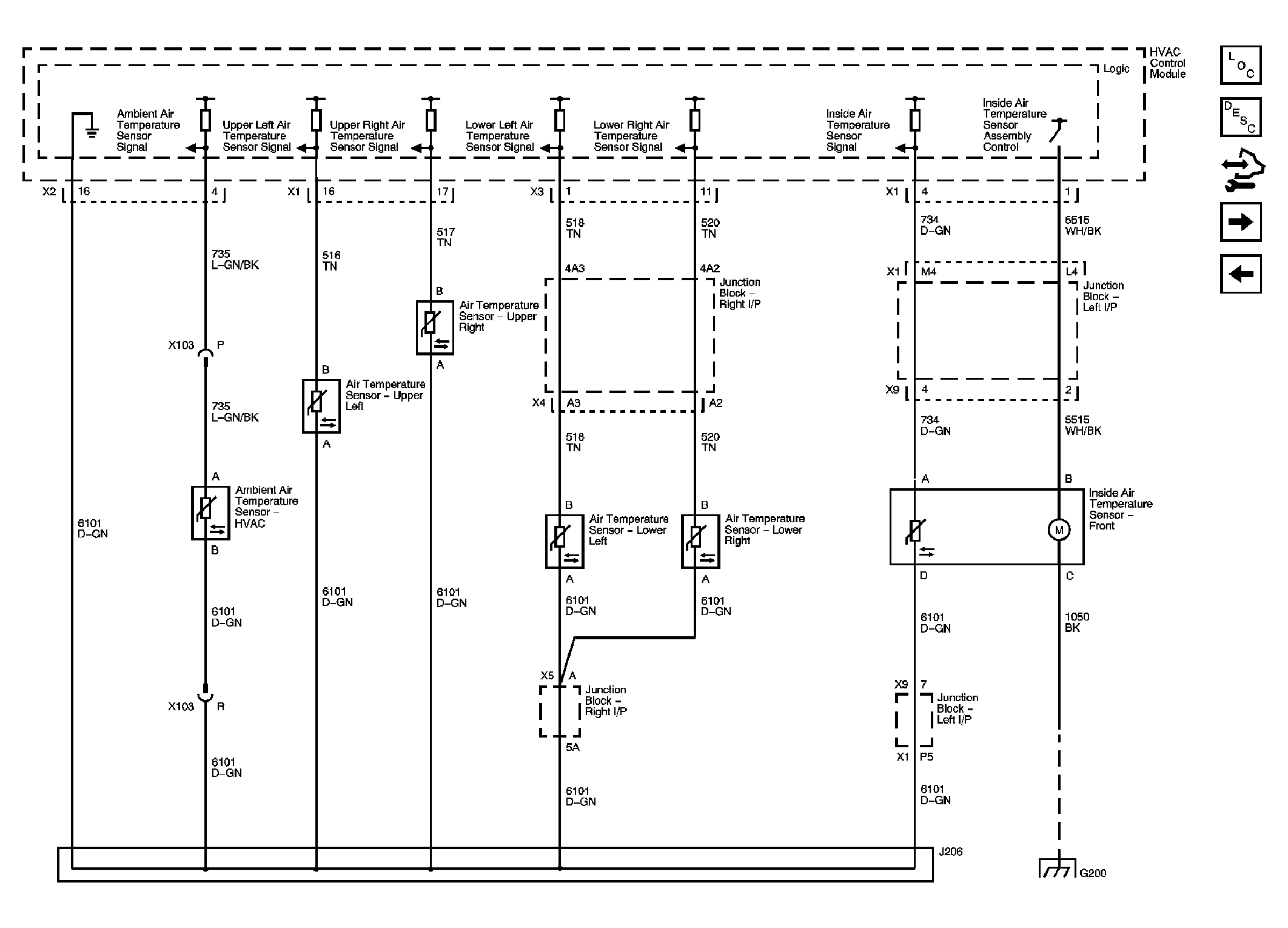

Fig 4: Temperature Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

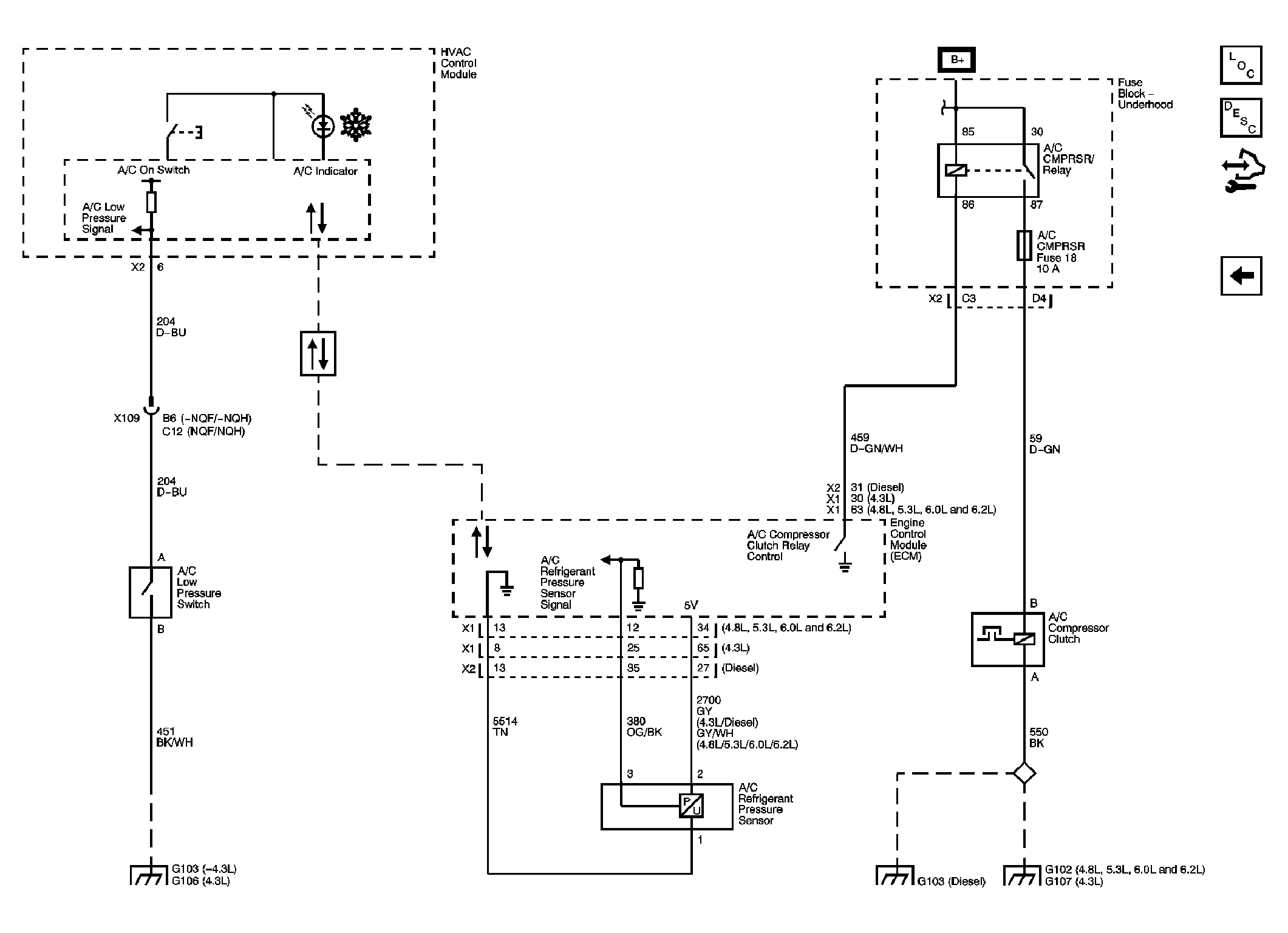

Fig 5: A/C Compressor Controls Schematic

Courtesy of GENERAL MOTORS CORP.
