Instrument Cluster Replacement (with RPO SLT)
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Instrument Cluster Replacement (with RPO SLT)

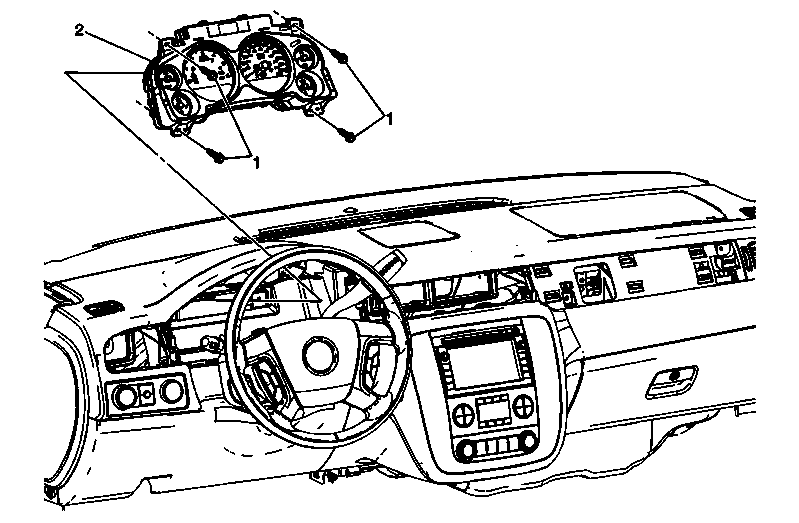

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel cluster trim plate. Refer to Instrument Cluster Trim Panel Replacement (Without RPO SLT) or Instrument Cluster Trim Panel Replacement (with RPO SLT) . |
|
| 1 | Instrument Panel Cluster Screws (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Cluster Assembly Tip: A replacement cluster must be programmed. Refer to Control Module References . |
