Instrument Panel Accessory Trim Plate Replacement (without RPO SLT)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

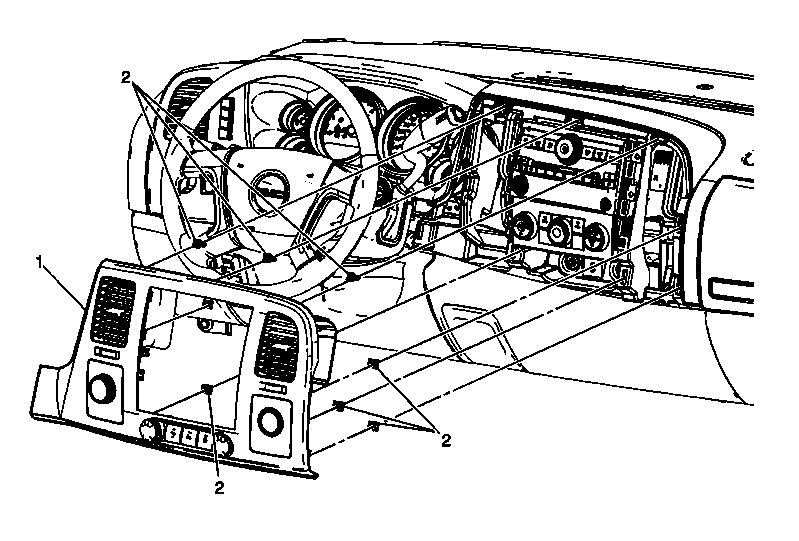

Fig 1: View Of Instrument Panel Accessory Trim Plate Assembly & Retainer Clips

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Accessory Trim Plate Assembly Procedure Disconnect the electrical connectors. When replacing the accessory trim plate, transfer all necessary components.
2	Retainer Clips (Qty: 14)

Callout

Component Name

Instrument Panel Accessory Trim Plate Assembly

Procedure

Disconnect the electrical connectors.
When replacing the accessory trim plate, transfer all necessary components.

Retainer Clips (Qty: 14)
