Transmission Control Module Replacement

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

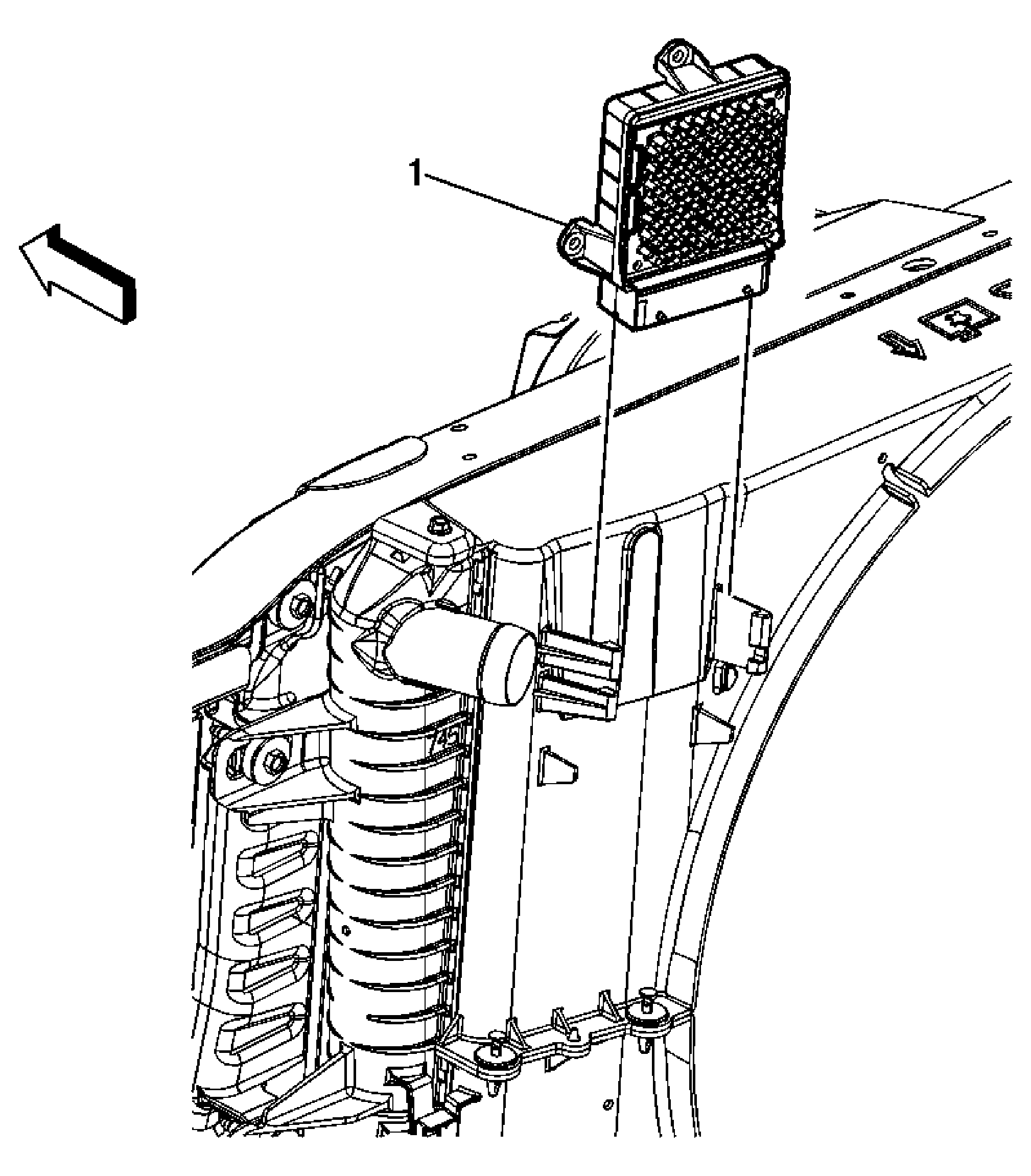

Fig 1: View Of Transmission Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Control Module (TCM) Procedure Disconnect the TCM electrical connector. A new TCM requires programming. Refer to Control Module References . Tip: Twisting or tilting of the transmission control module electrical connector while disconnecting may result in bent or misaligned electrical terminal pins.

Callout

Component Name

Transmission Control Module (TCM)

Procedure

Disconnect the TCM electrical connector.
A new TCM requires programming. Refer to Control Module References .

Tip: Twisting or tilting of the transmission control module electrical connector while disconnecting may result in bent or misaligned electrical terminal pins.
