WARNING: This page is about a different car, the 2009 GMC Sierra and 2009 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

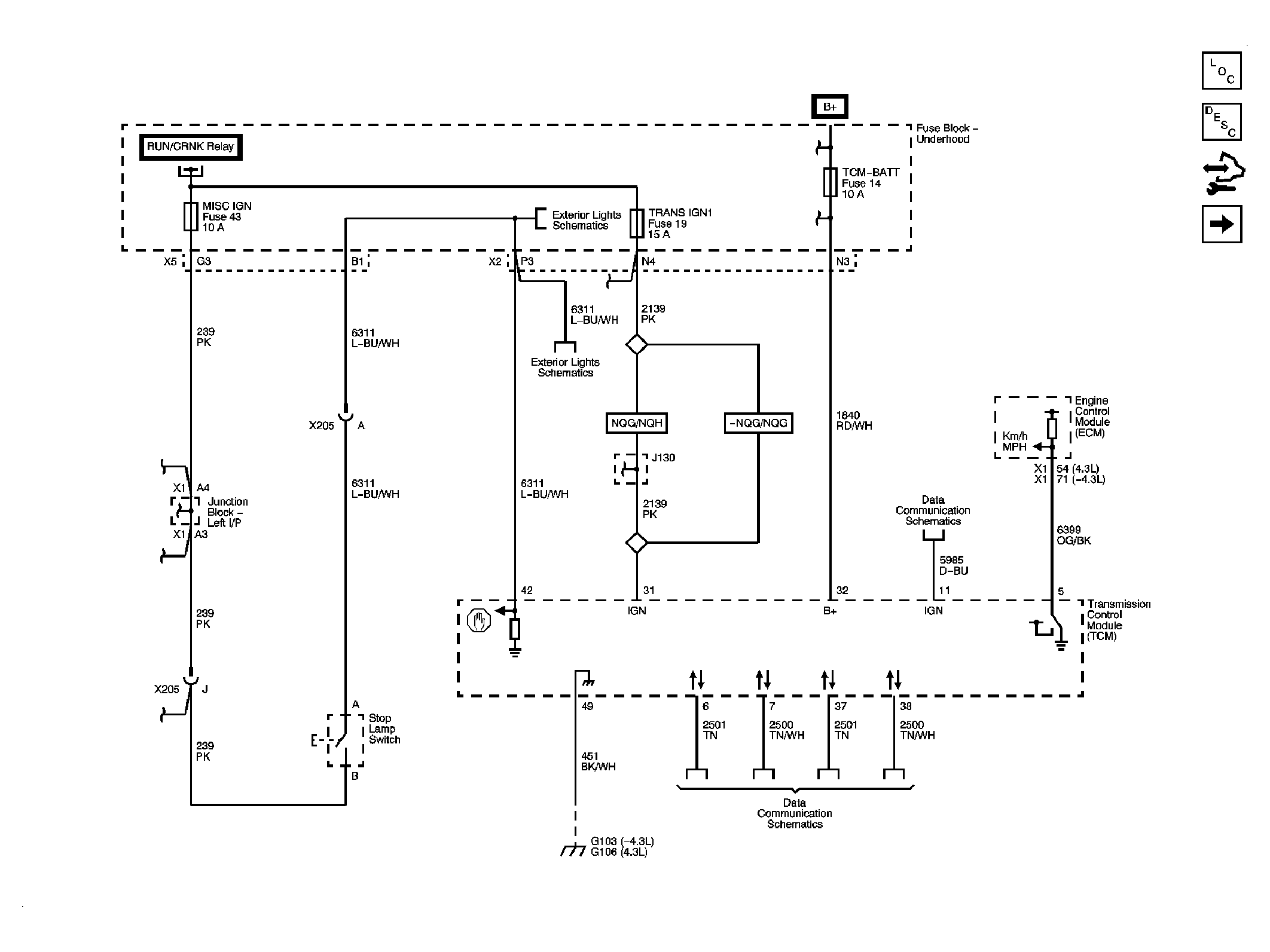

Fig 1: Module Power, Ground & Serial Data Circuit Schematic
Courtesy of GENERAL MOTORS CORP.

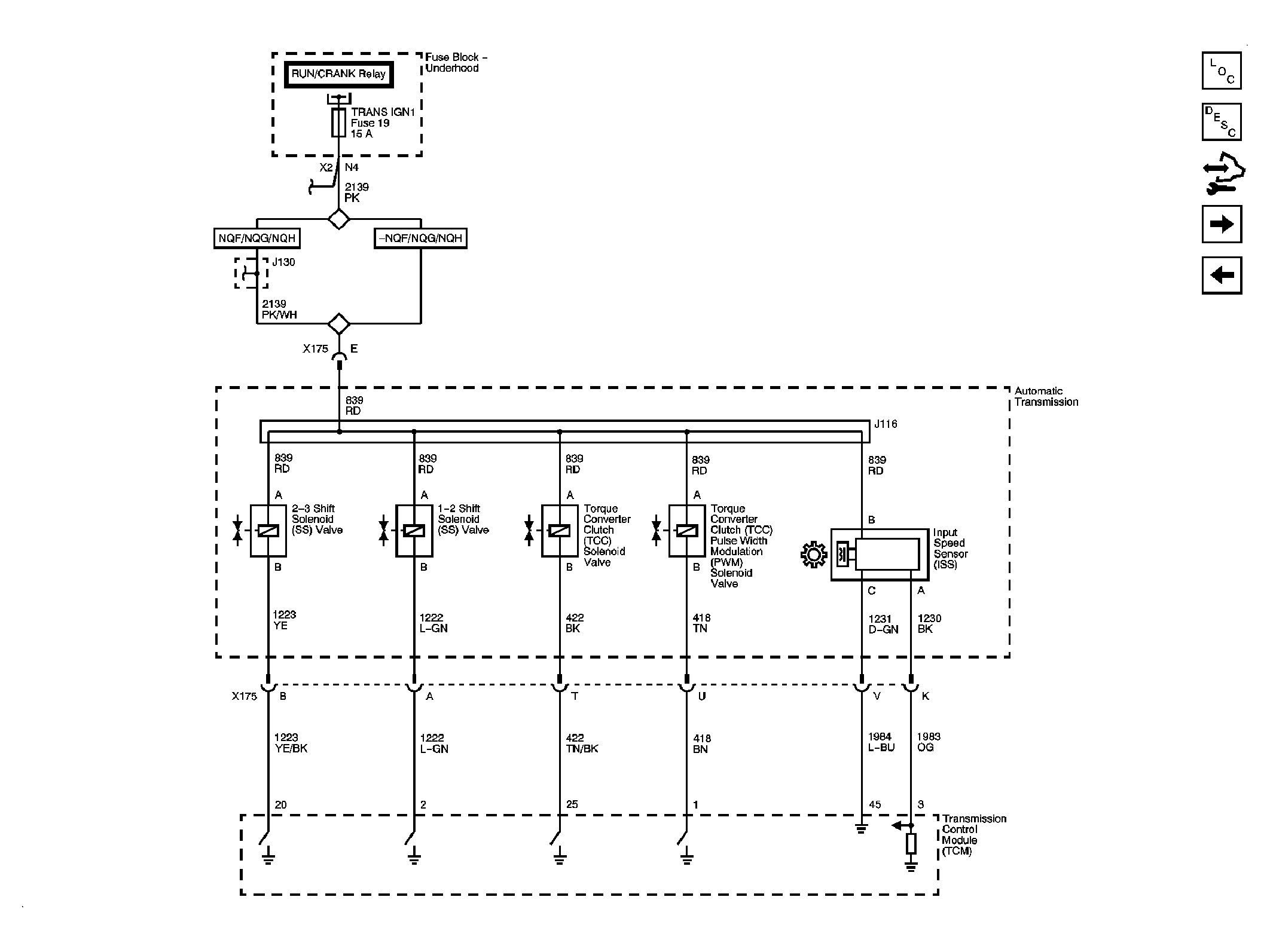

Fig 2: Shift Controls Circuit Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 3: Pressure & Temperature Controls Circuit Schematic
Courtesy of GENERAL MOTORS CORP.

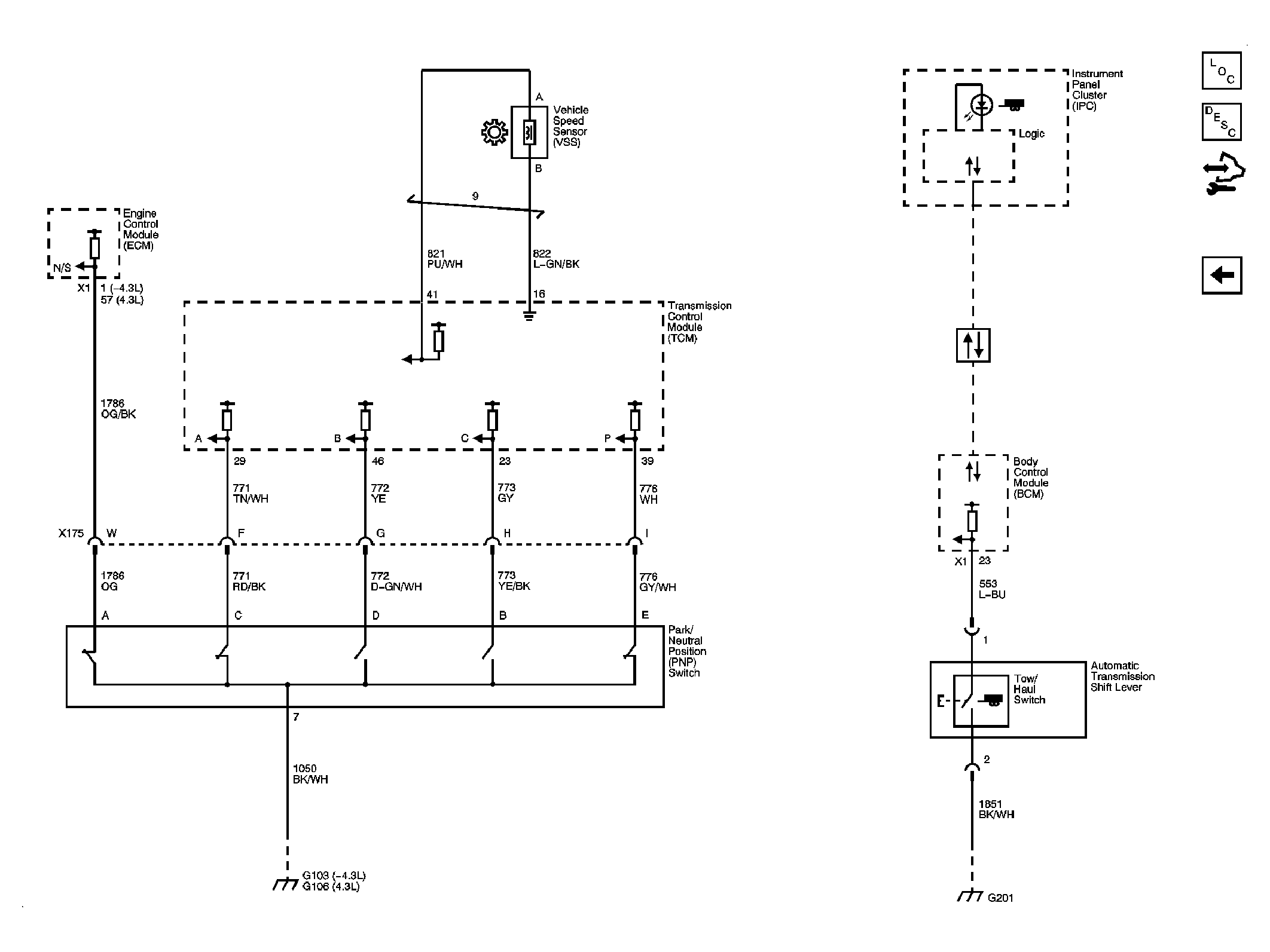

Fig 4: PNP Signals, VSS Signal & Tow/Haul Signal Circuit Schematic
