Power Distribution Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Battery Supply Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

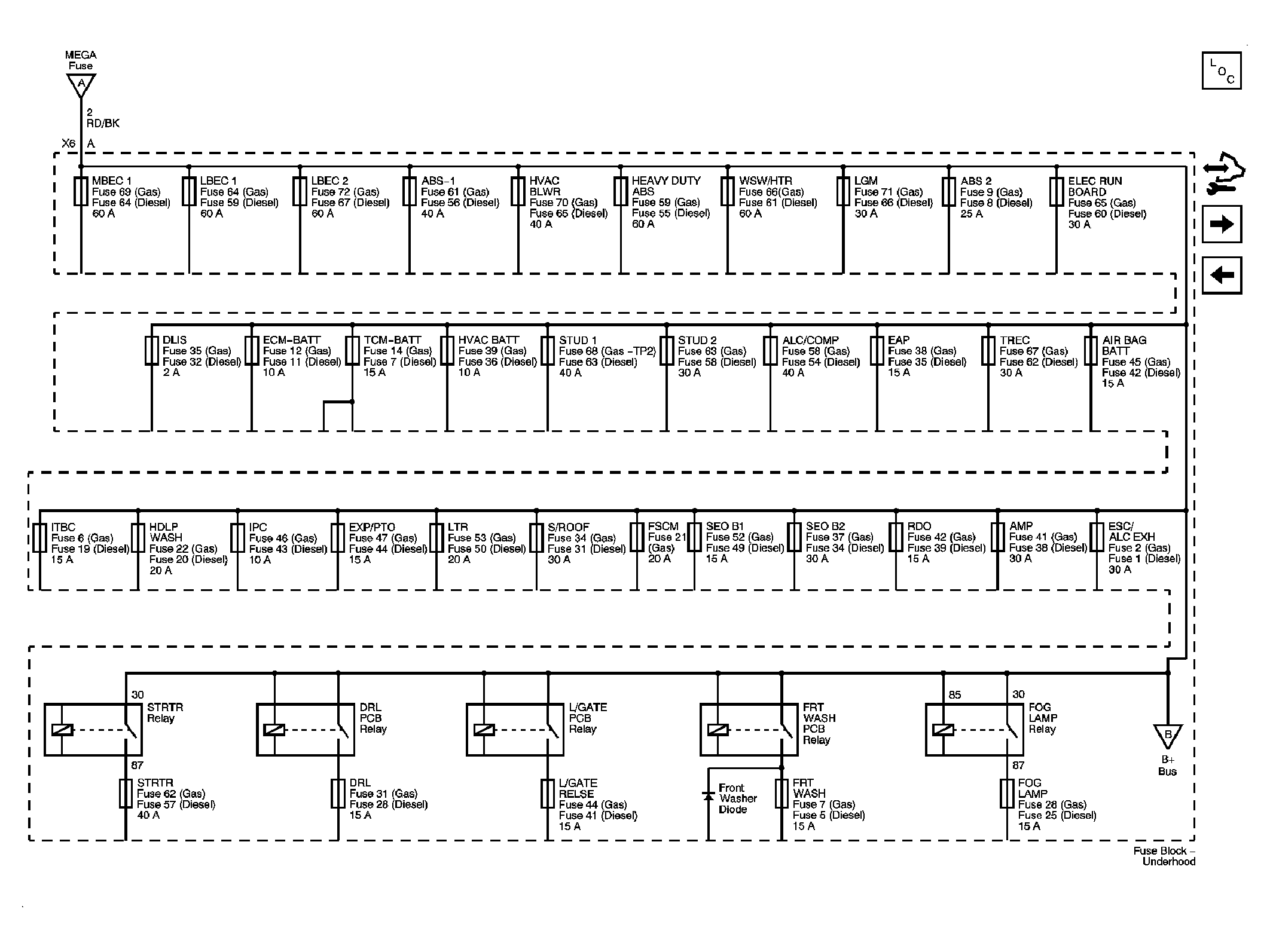

Fig 2: B+ Bus Circuit Schematic - 1 Of 3

Courtesy of GENERAL MOTORS CORP.

Fig 3: B+ Bus Circuit Schematic - 2 Of 3

Courtesy of GENERAL MOTORS CORP.

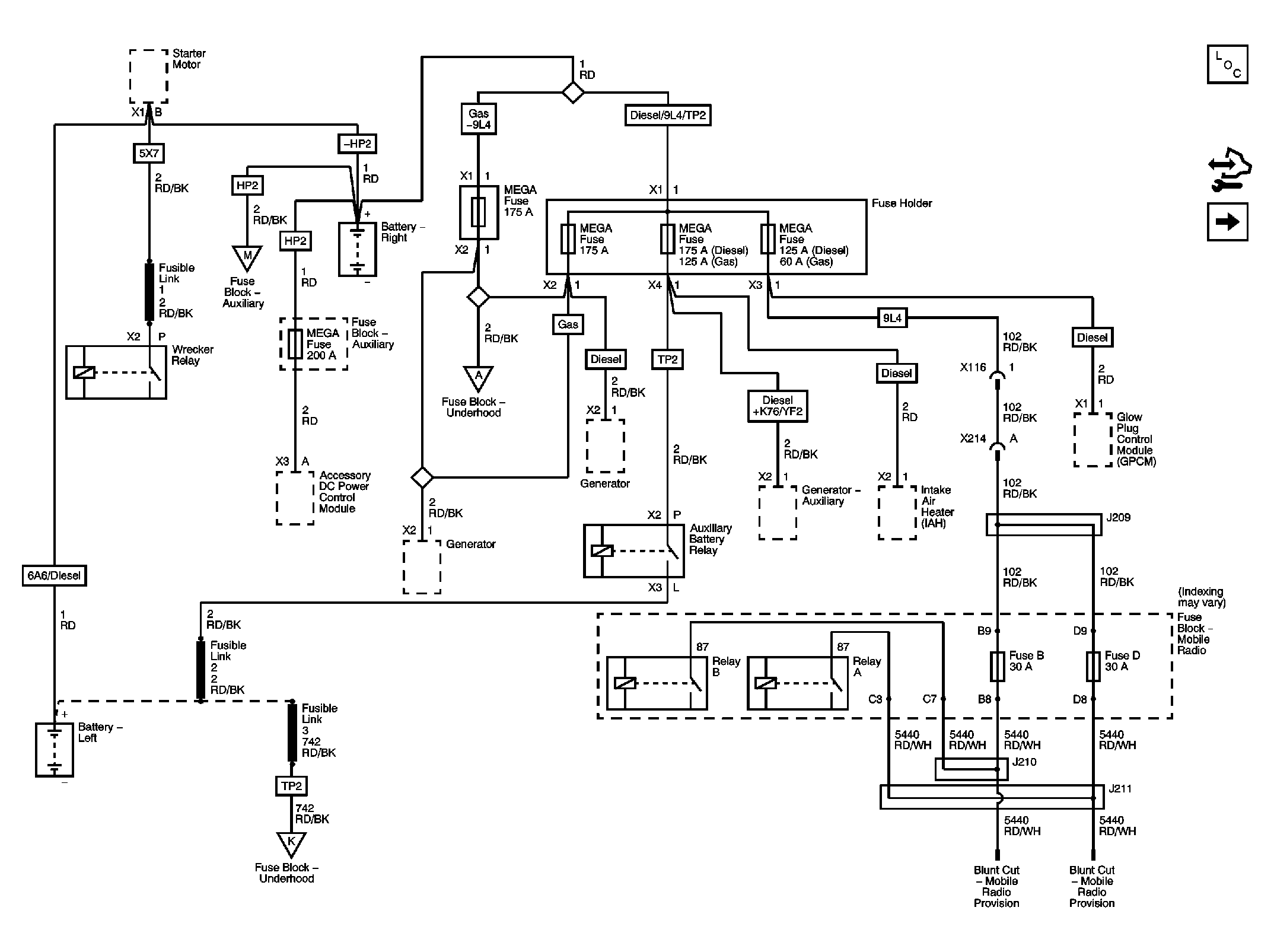

Fig 4: B+ Bus Circuit Schematic - 3 Of 3

Courtesy of GENERAL MOTORS CORP.

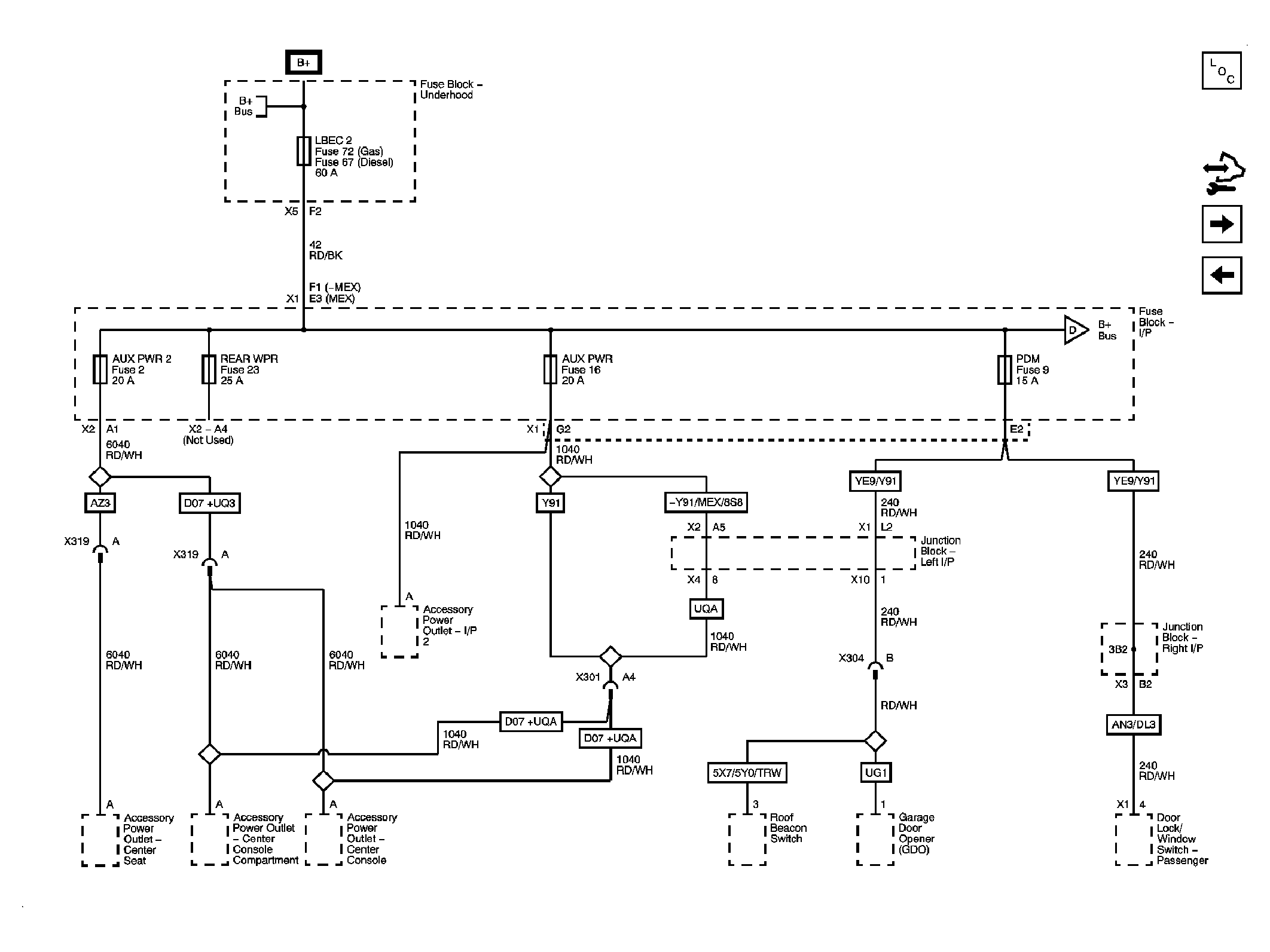

Fig 5: AUX PWR, AUX PWR 2, LBEC 2, PDM (YE9) & REAR WPR Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

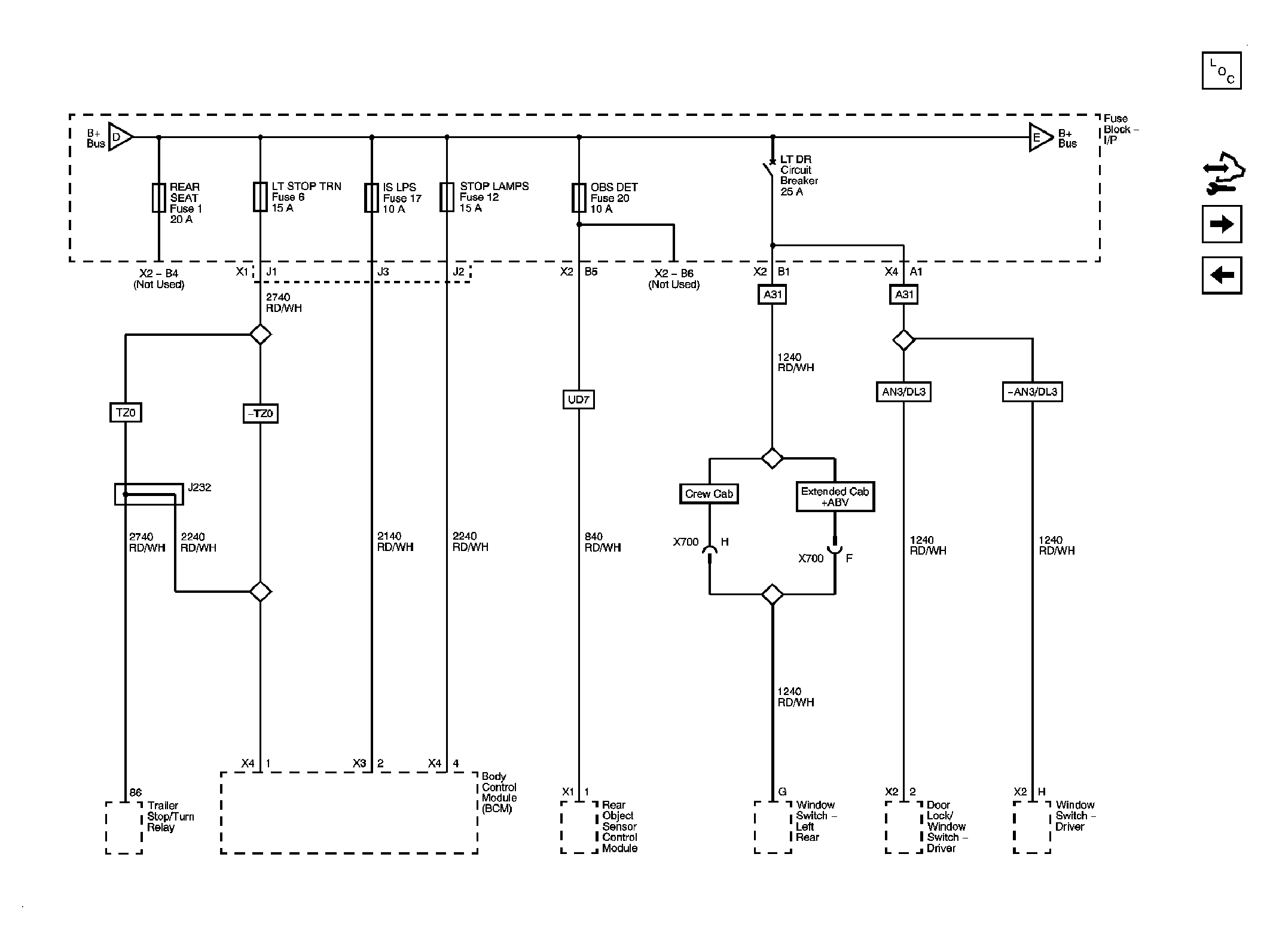

Fig 6: IS LPS, LT STOP TRN, OBS DET, REAR SEAT & STOP LAMPS Fuses, LT DR Circuit Breaker Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

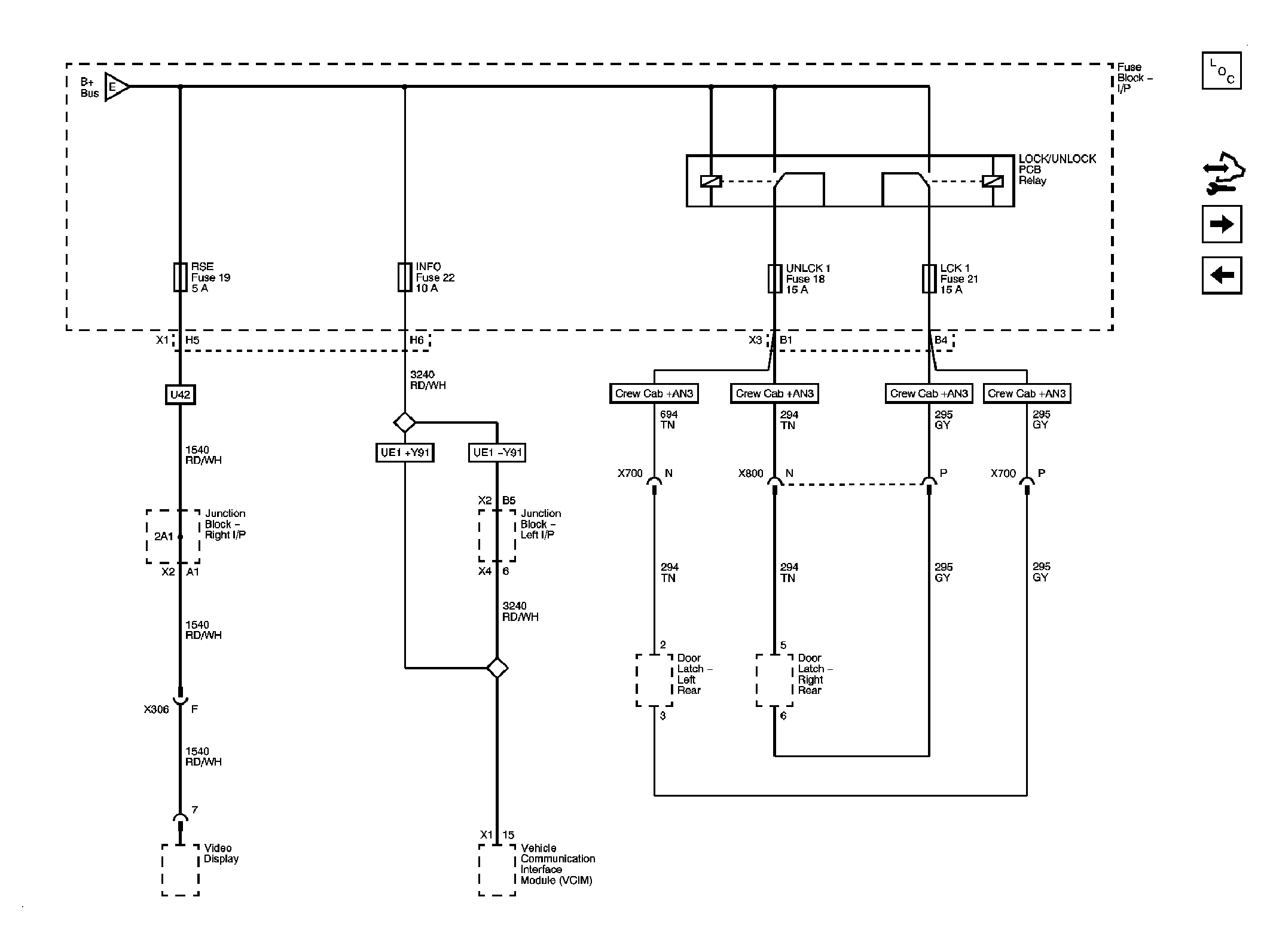

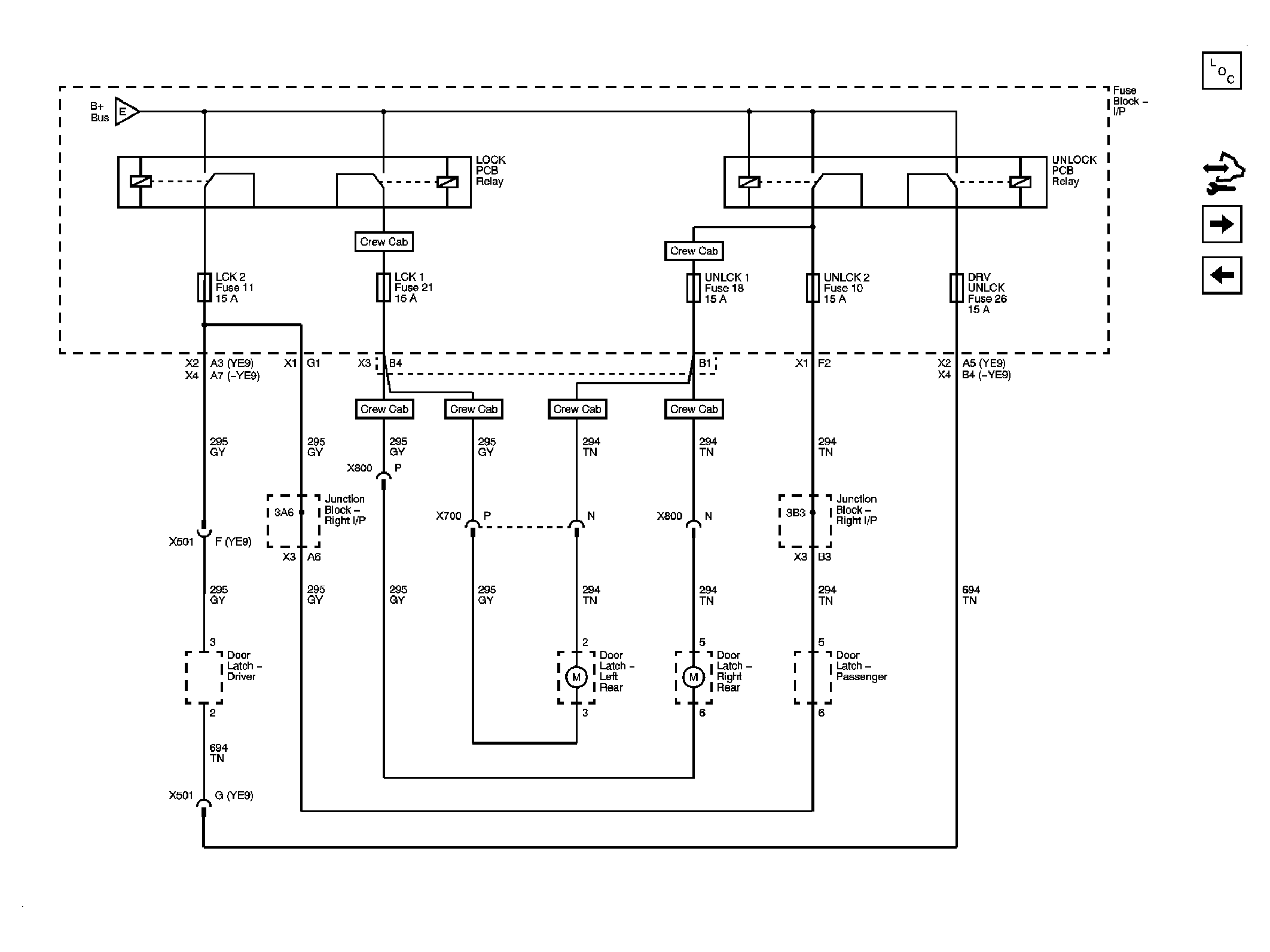

Fig 7: LCK 1 & UNLCK 1 Fuses (Crew Cab with AN3) & INFO & REAR SEAT ENT Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: DRV UNLCK (YE9), LCK 1, LCK 2, PDM (Except YE9), UNLCK 1 & UNLCK 2 Fuses (AU3 without AN3/DL3) Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

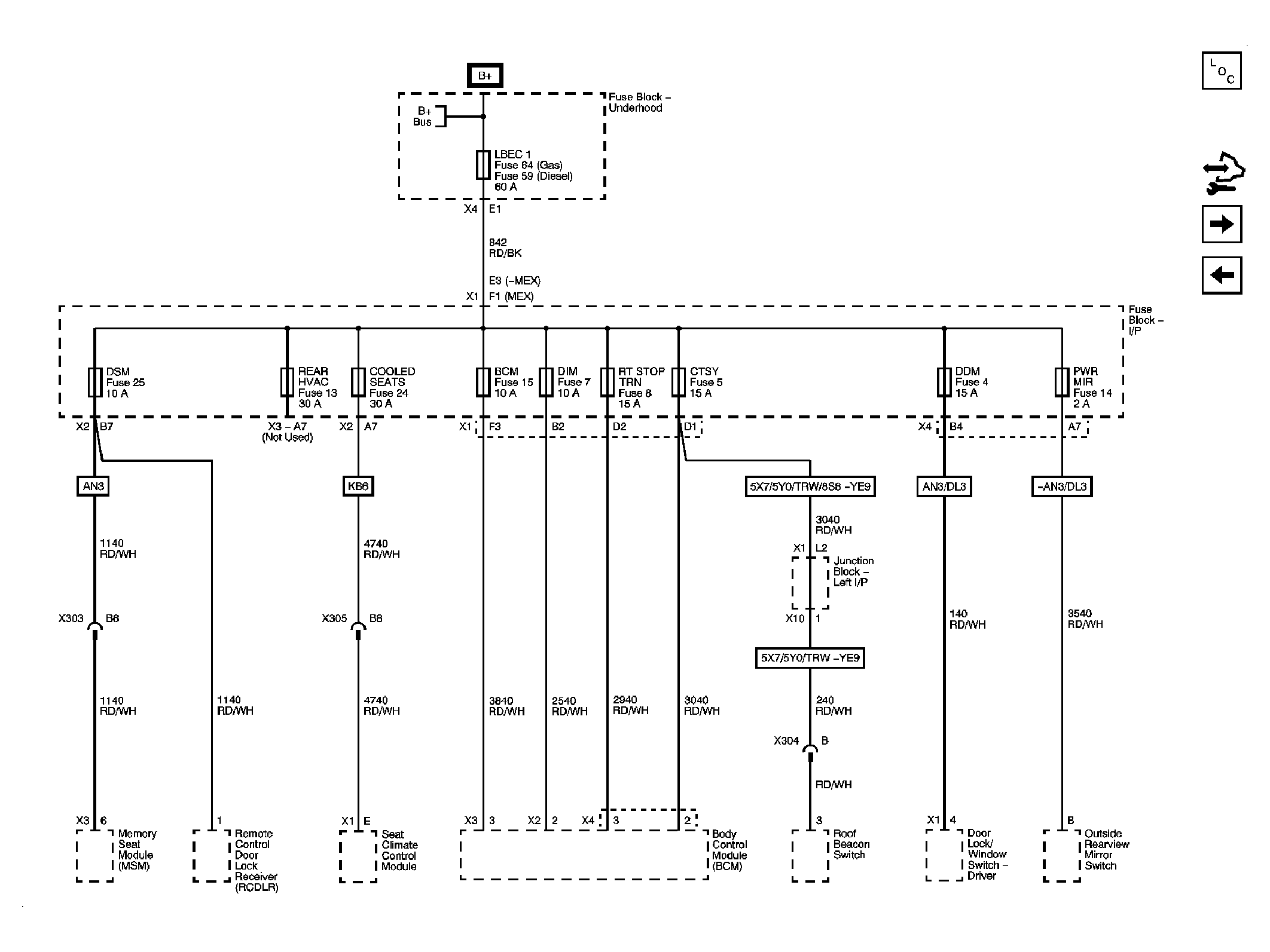

Fig 9: BCM, COOLED SEATS, CTSY, DDM, DIM, DSM, LBEC 1, PWR MIR, REAR HVAC & RT STOP TRN Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

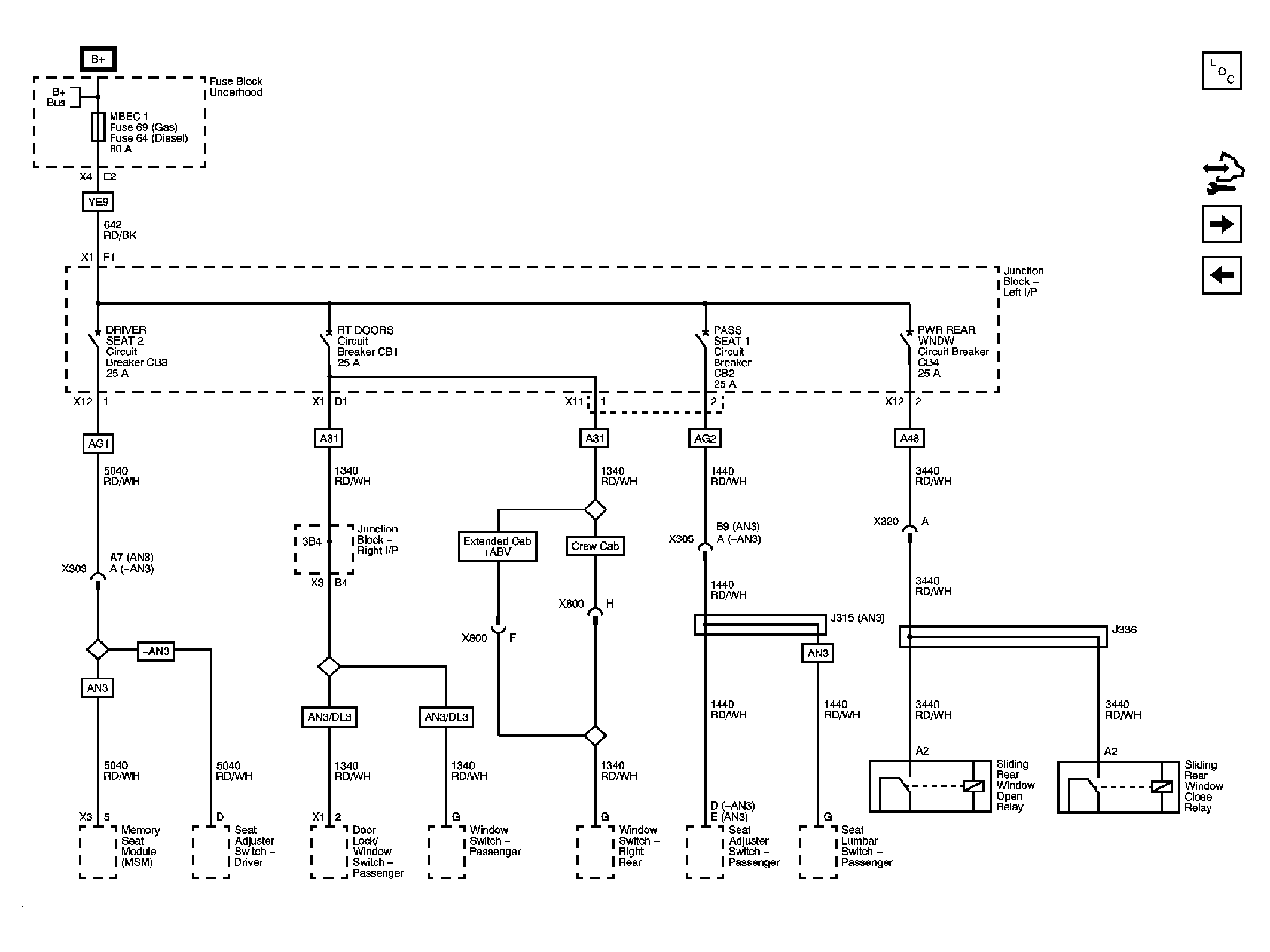

Fig 10: MBEC1 Fuse, DRIVER SEAT 2, PASS SEAT 1, PWR REAR WNDW & RT DOORS Circuit Breakers Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

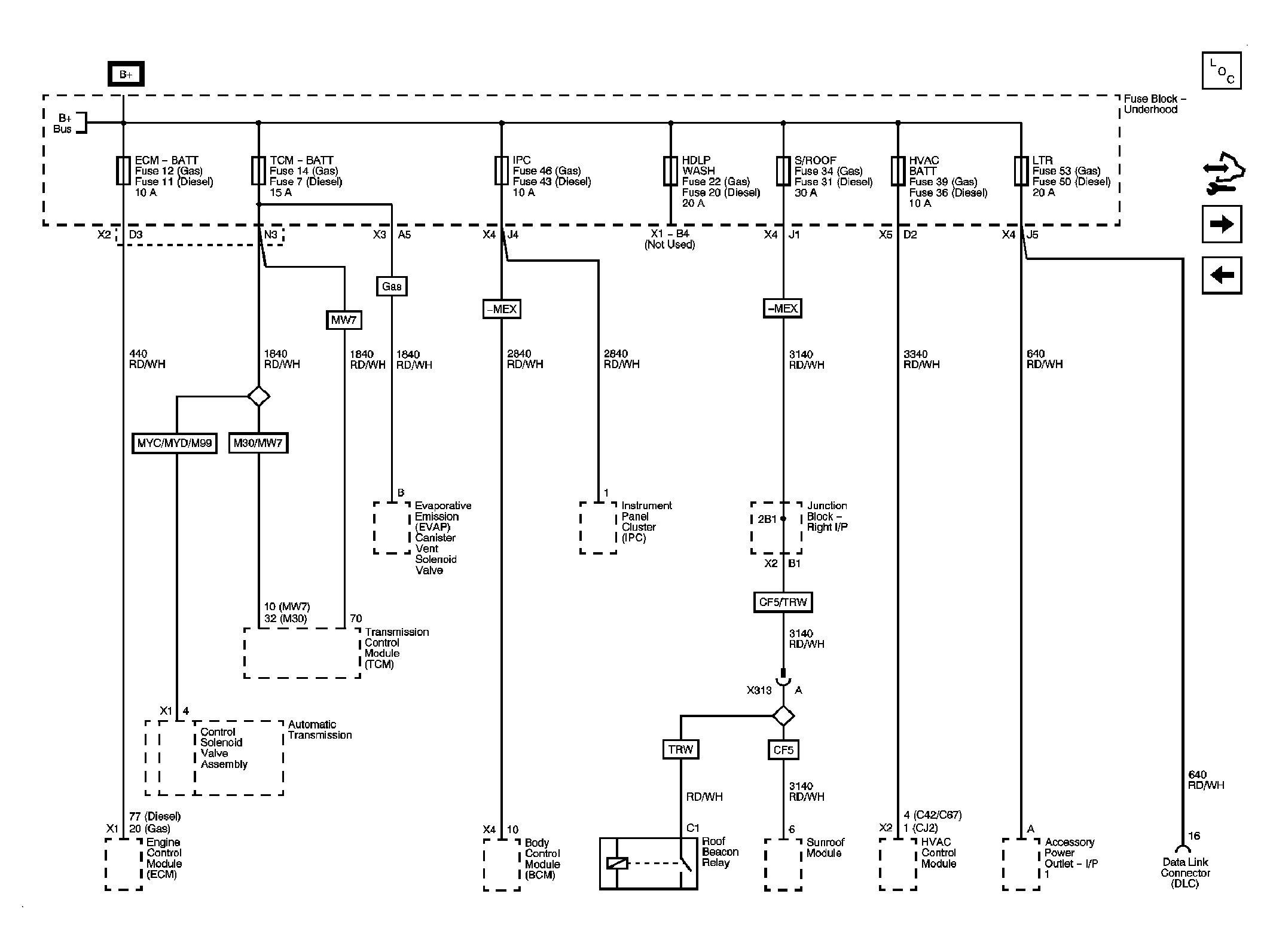

Fig 11: ECM-BATT, HDLP WASH, HVAC BATT, IPC, LTR, S/ROOF & TCM-BATT Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

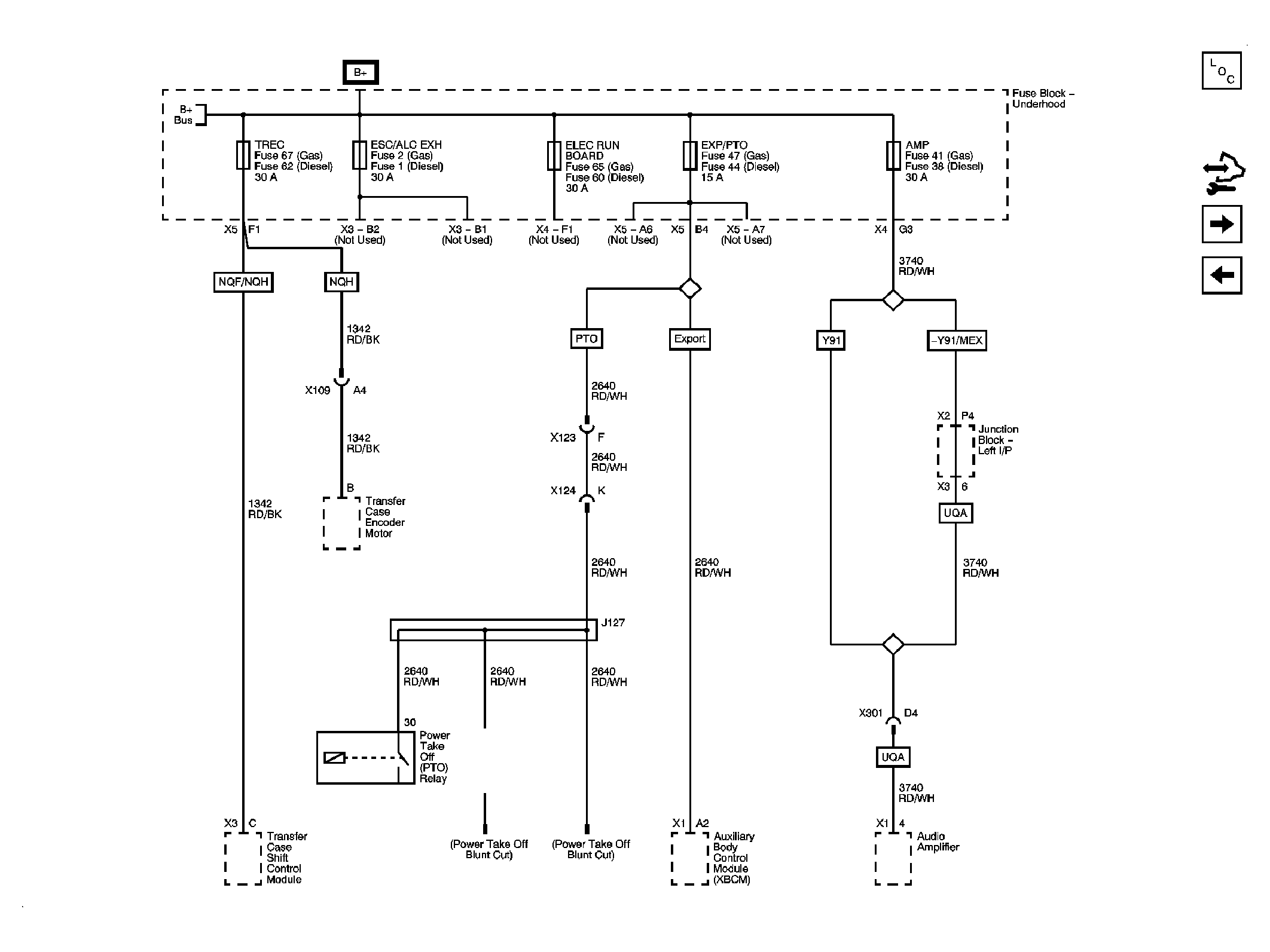

Fig 12: AMP, ELEC RUN BOARD, ESC/ALC EXH, EXP/PTO, INFOTMNT & TREC Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

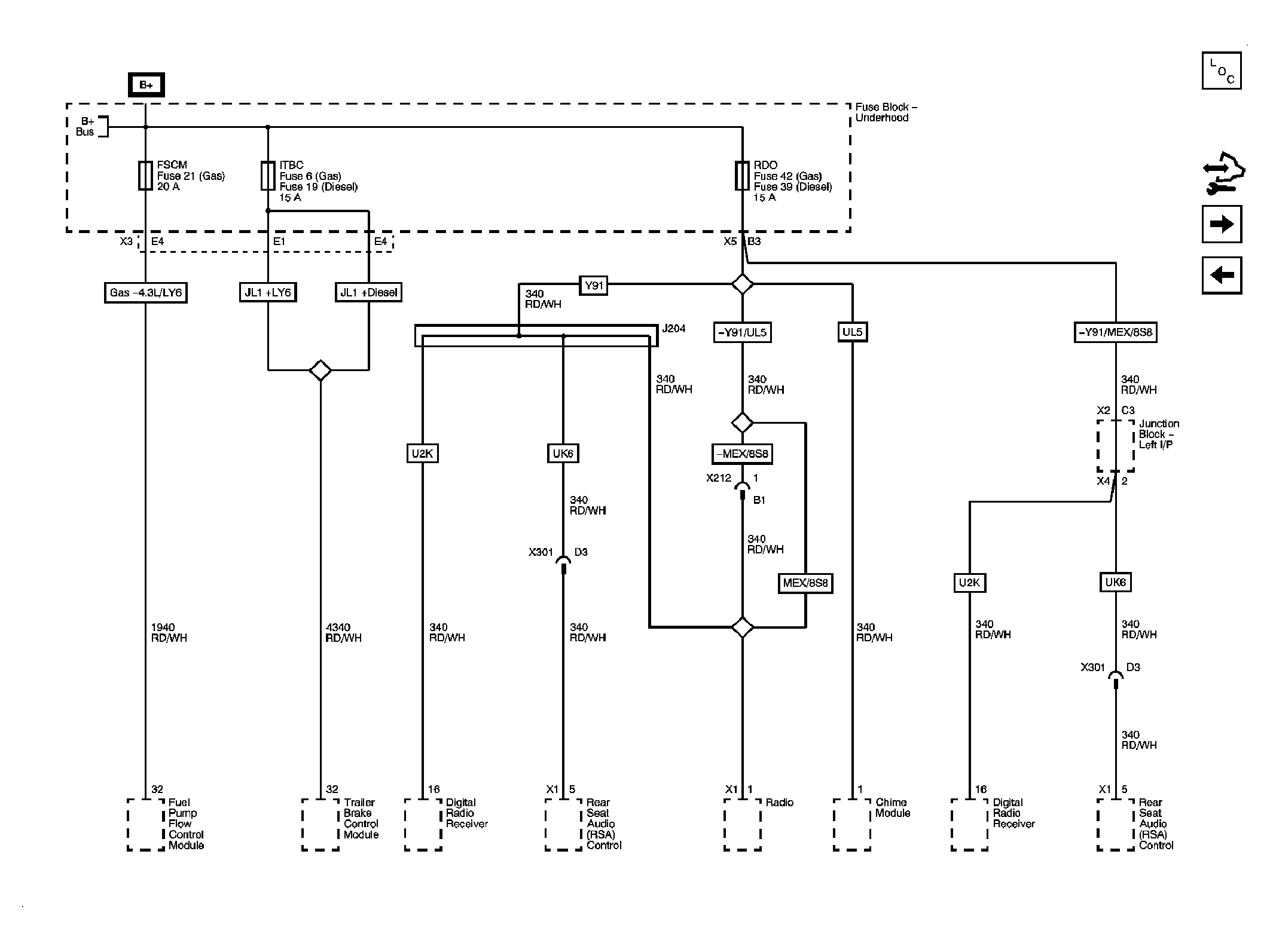

Fig 13: FSCM, ITBC & RDO Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

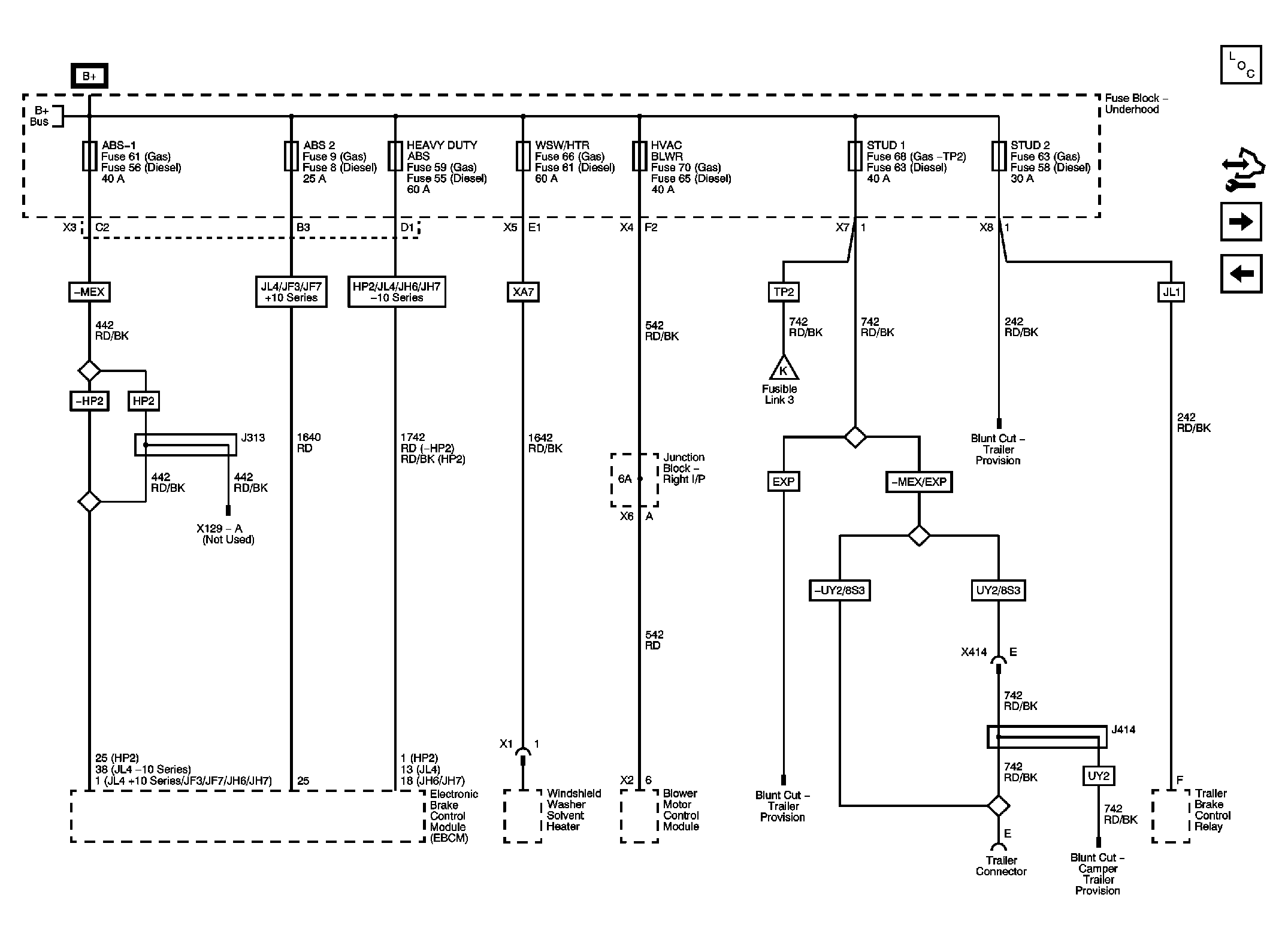

Fig 14: ABS-1, ABS-2, HEAVY DUTY ABS, HVAC BLWR, STUD 1, STUD 2 & WSW/HTR Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

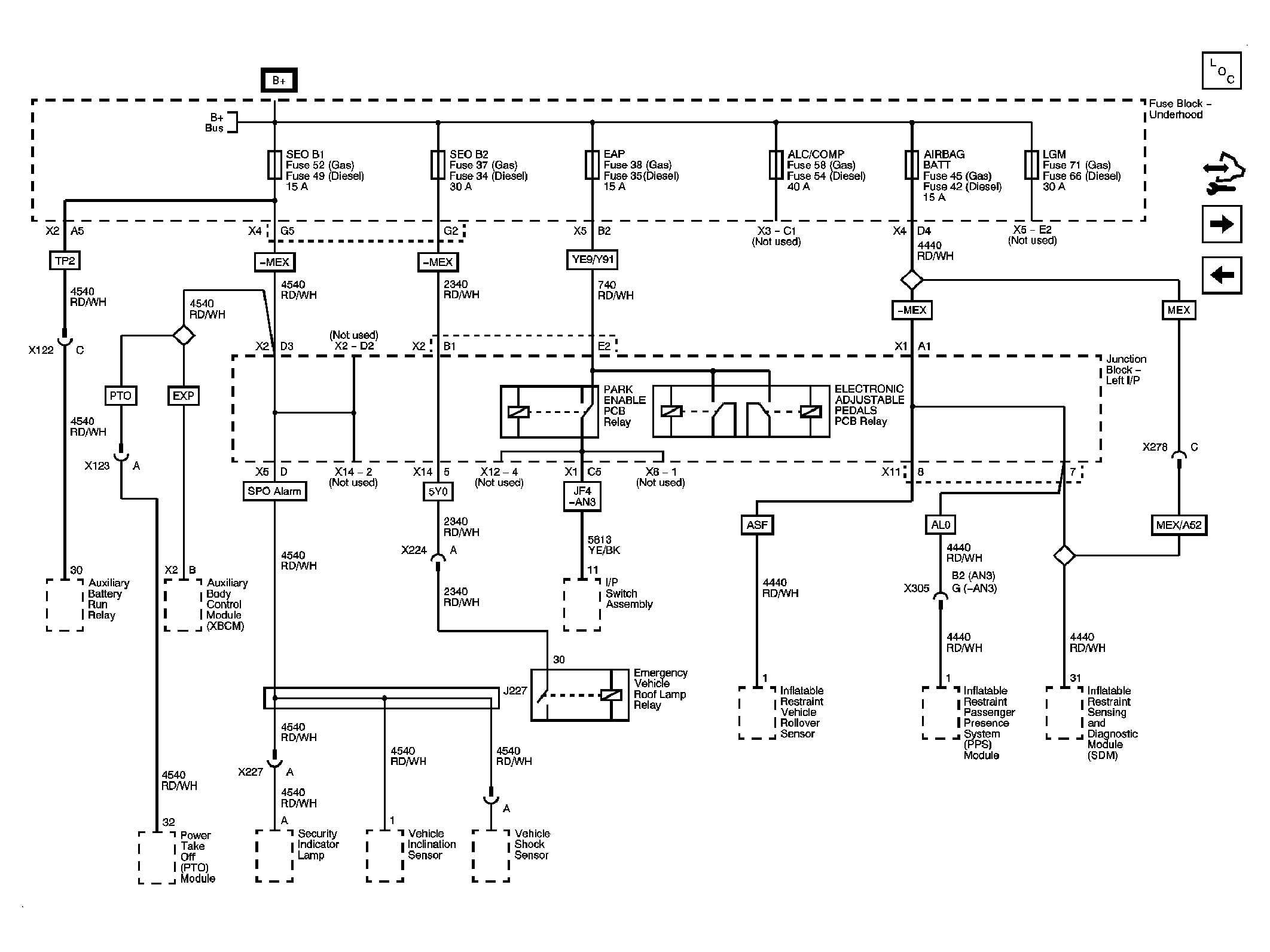

Fig 15: AIRBAG BATT, ALC COMP, EAP, LGM, SEO B1 & SEO B2 Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

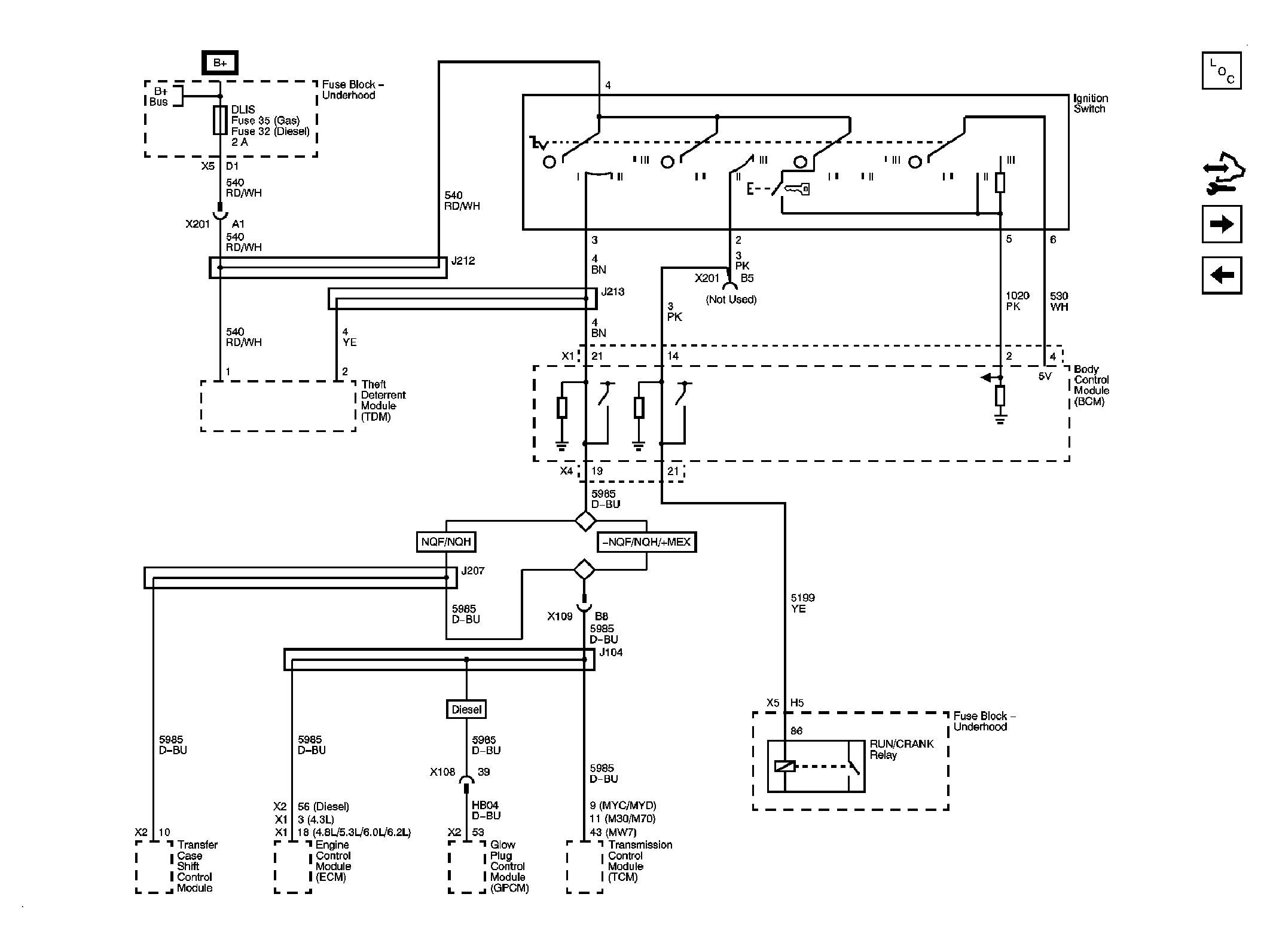

Fig 16: DLIS Fuse & Ignition Switch Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

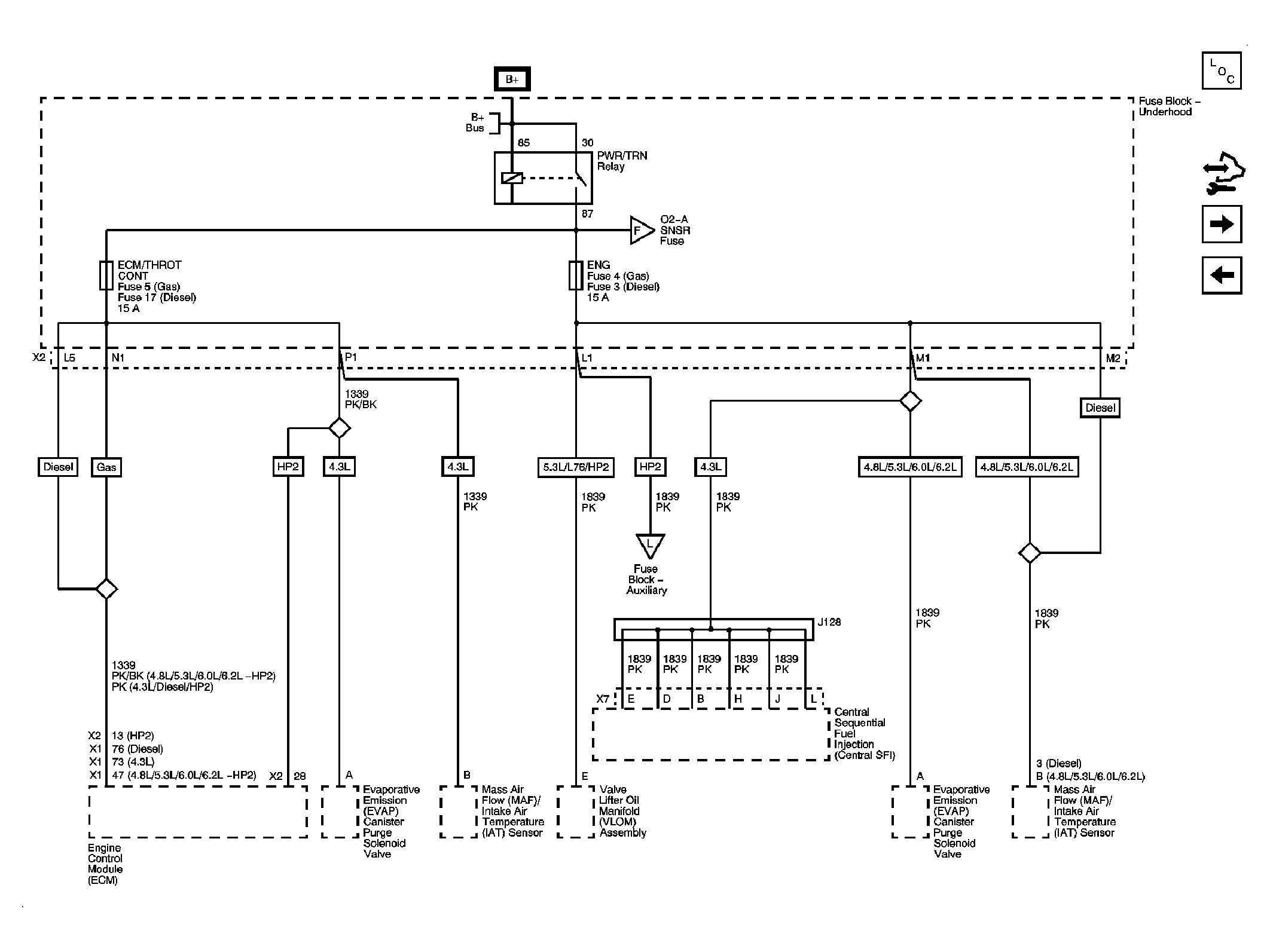

Fig 17: PWR/TRN BUS - ECM/THROT CONT & ENG Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

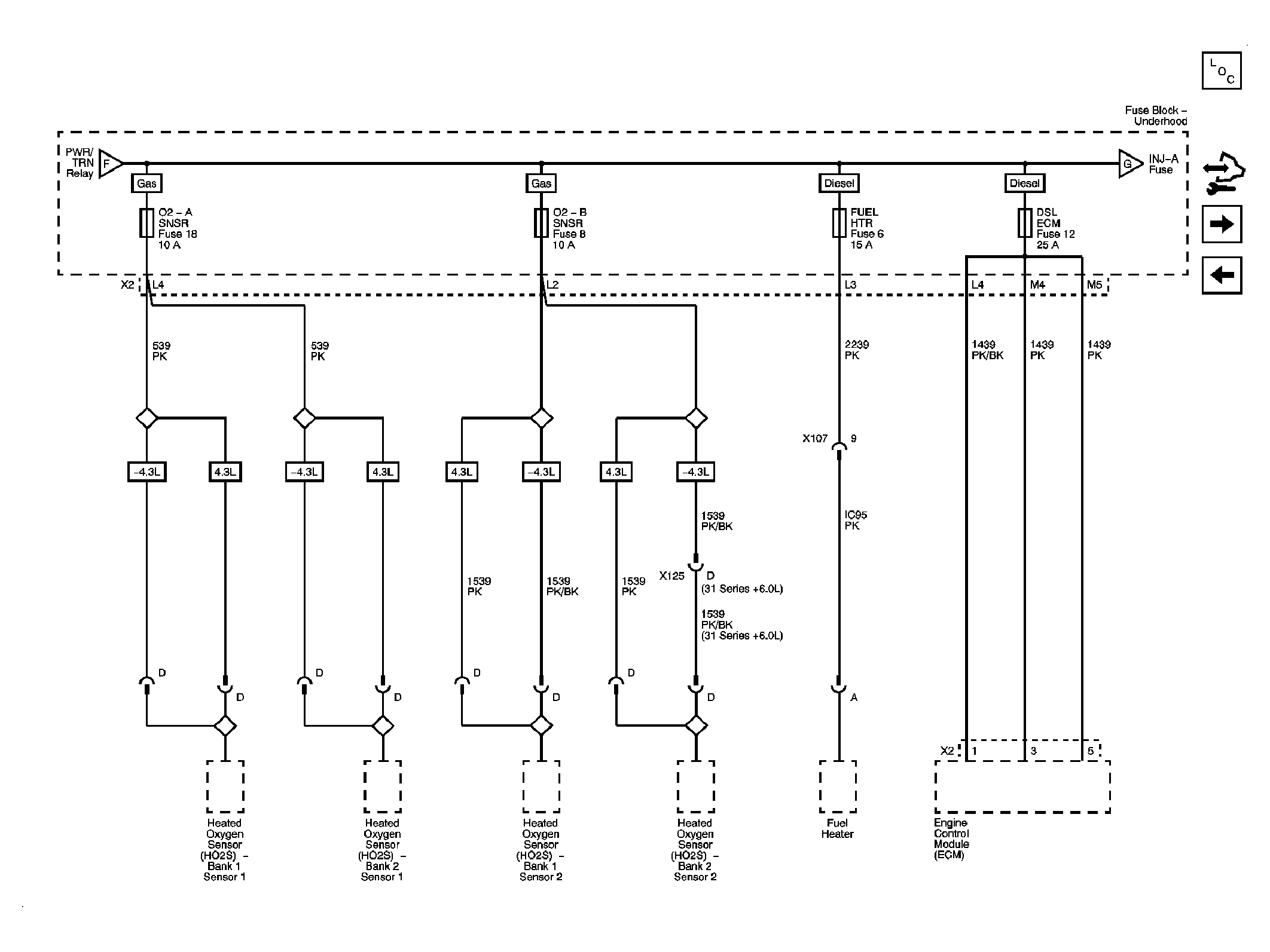

Fig 18: PWR/TRN BUS - DSL ECM, FUEL HTR, O2-A SNSR & O2-B SNSR Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

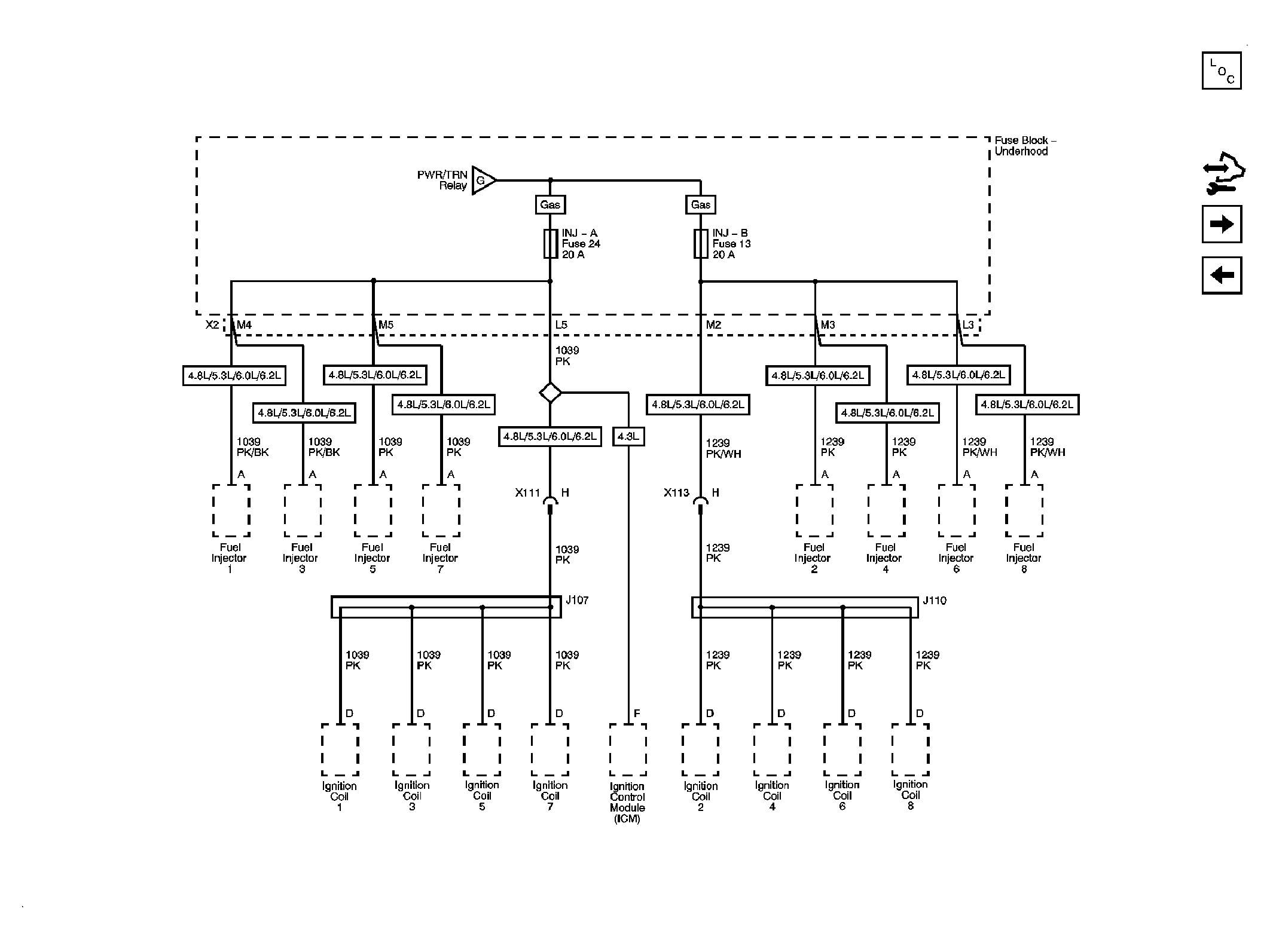

Fig 19: PWR/TRN BUS - INJ-A & INJ-B Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

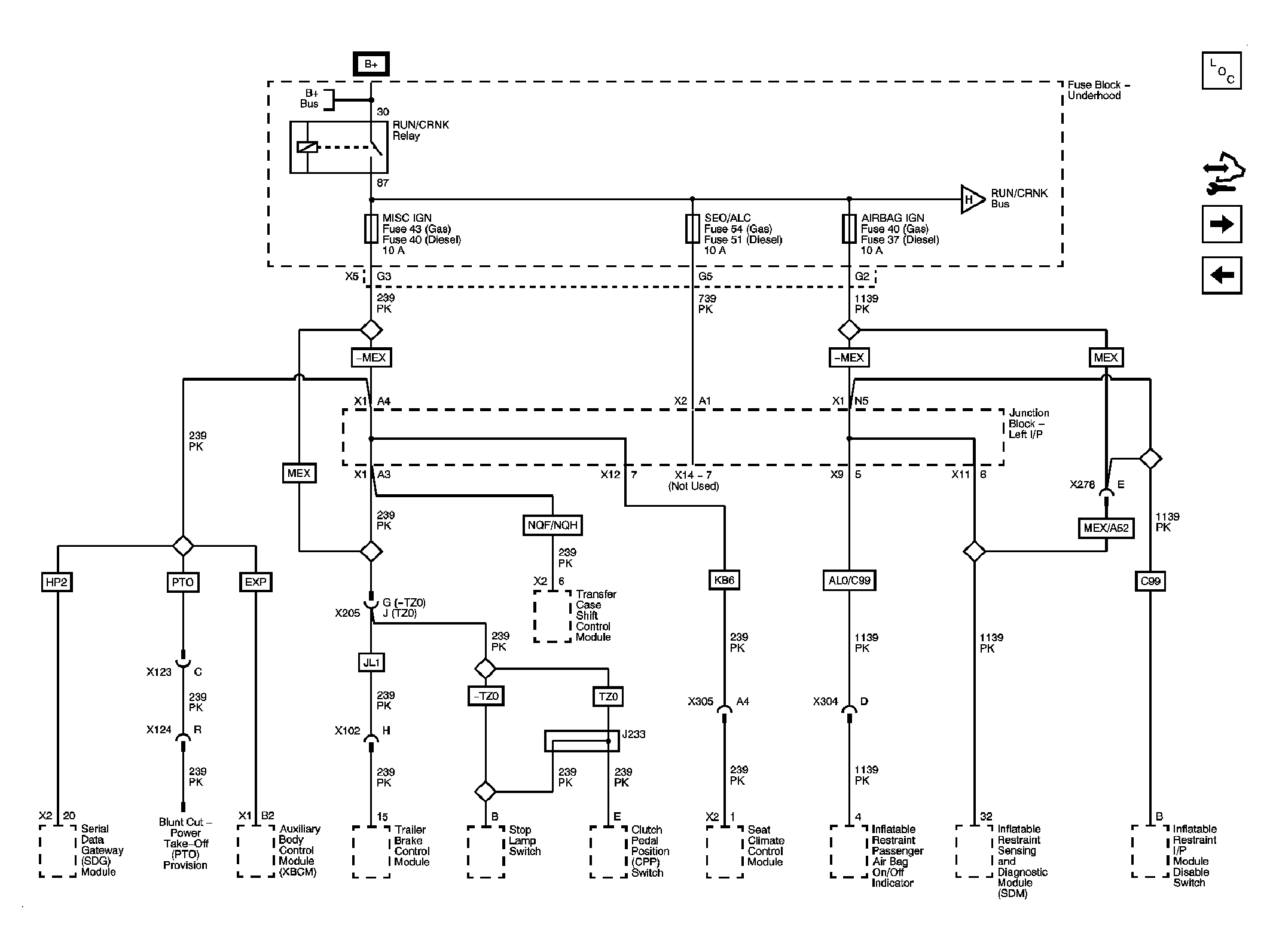

Fig 20: RUN/CRANK BUS - AIRBAG IGN, MISC IGN & SEO/ALC Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

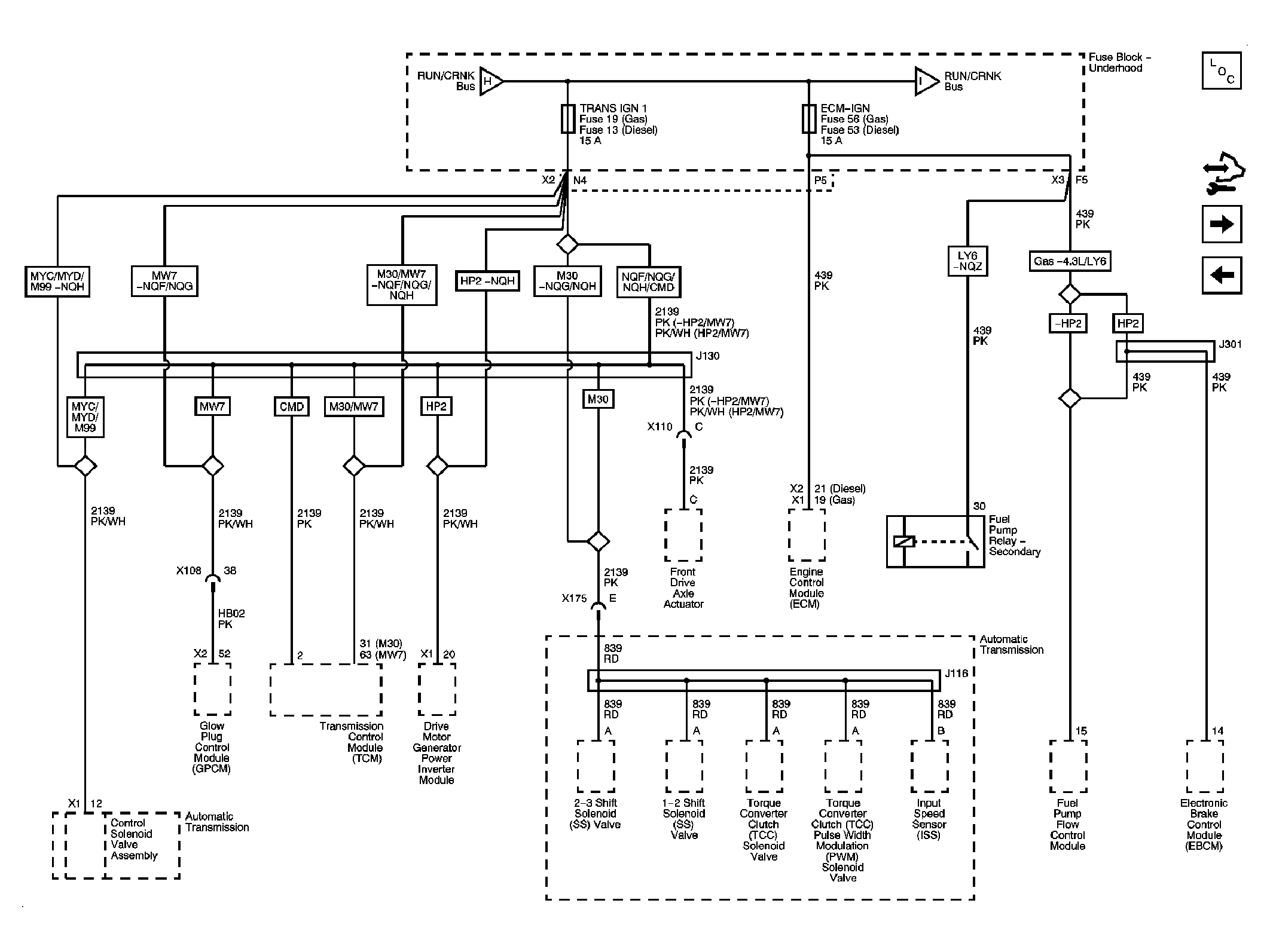

Fig 21: RUN/CRANK BUS - ECM-IGN & TRANS IGN 1 Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

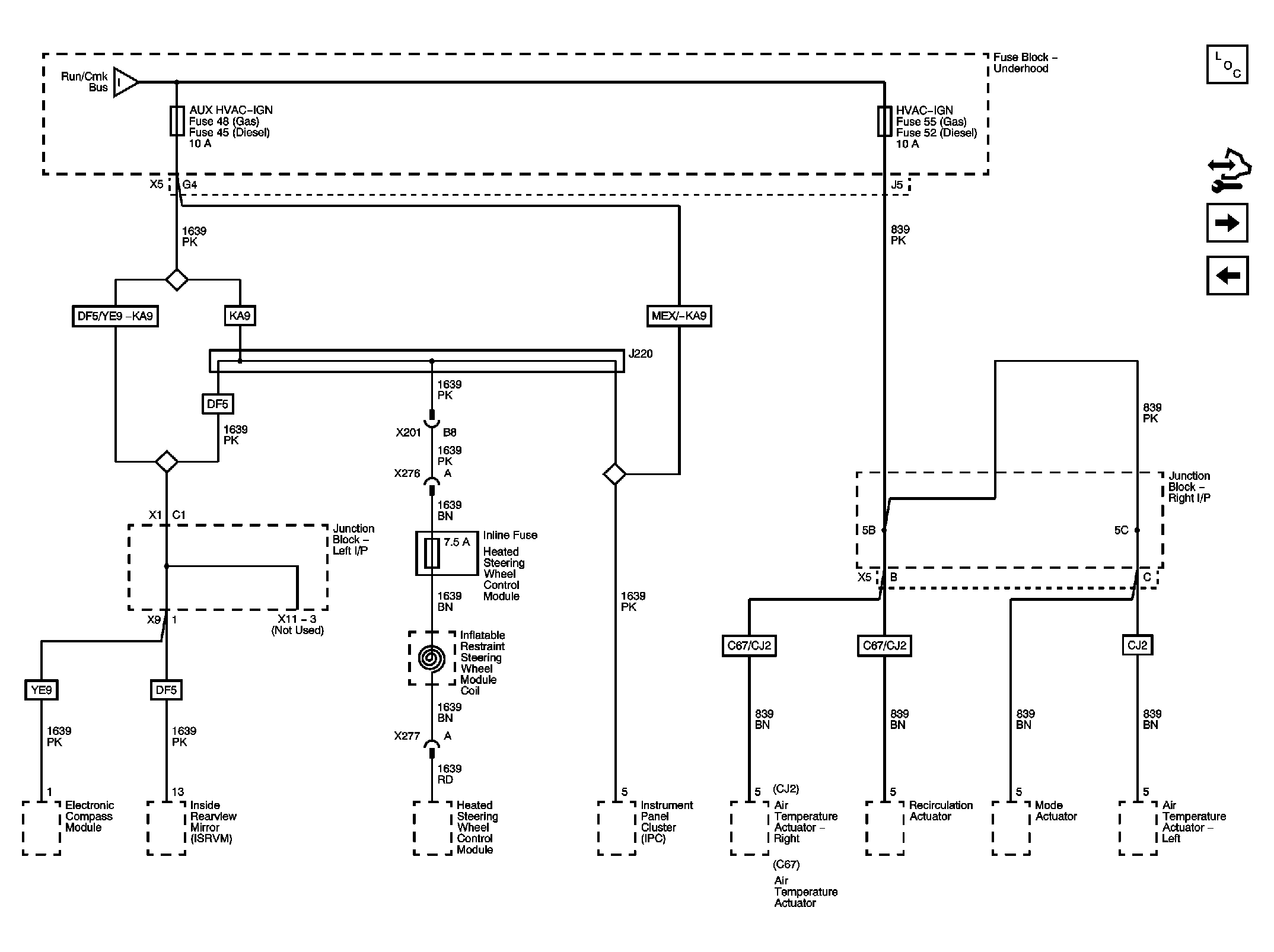

Fig 22: RUN/CRANK BUS - AUX HVAC-IGN & HVAC-IGN Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

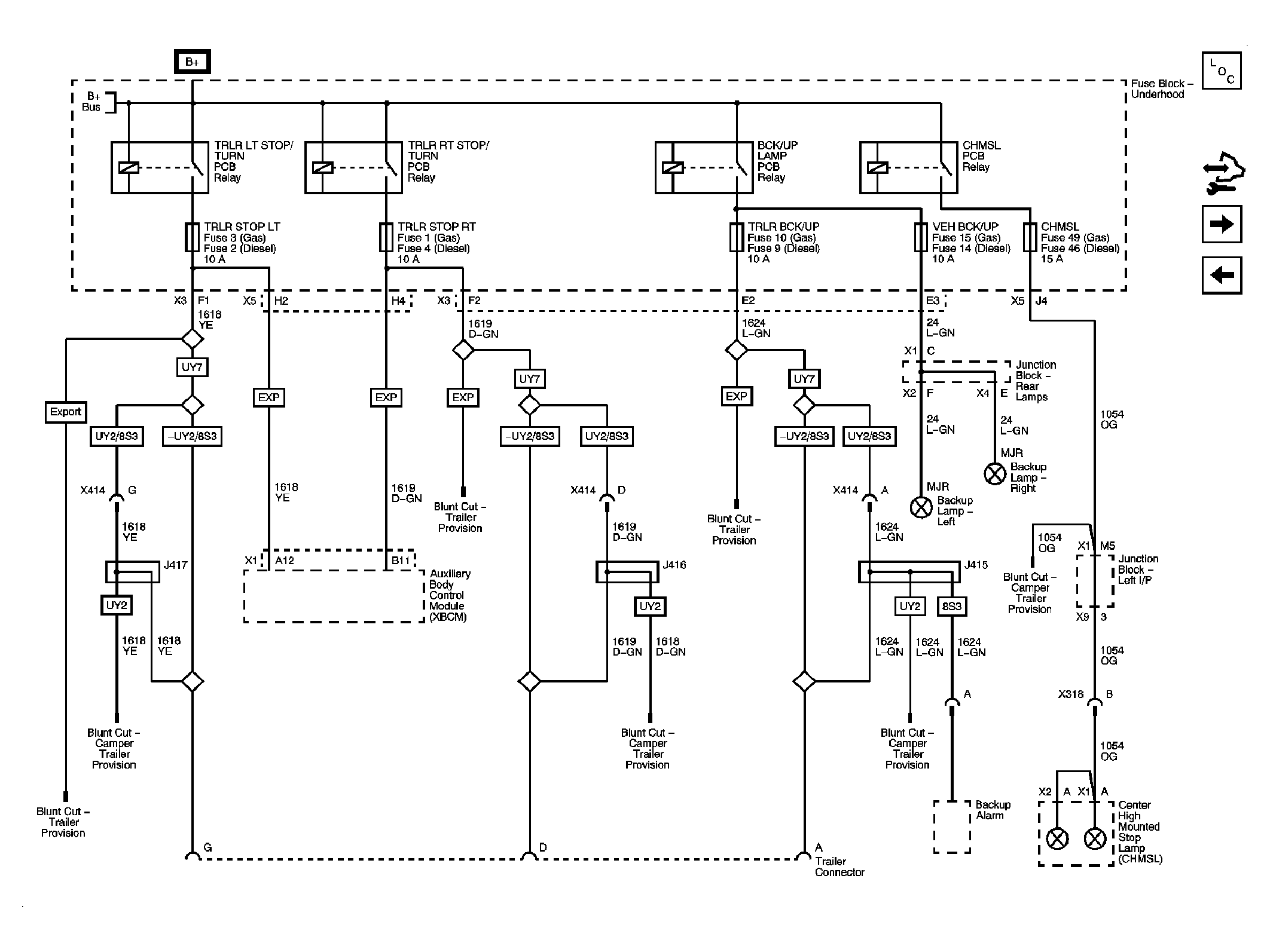

Fig 23: CHMSL, TRLR BCK/UP, TRLR STOP LT, TRLR STOP RT & VEH BCK/UP Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

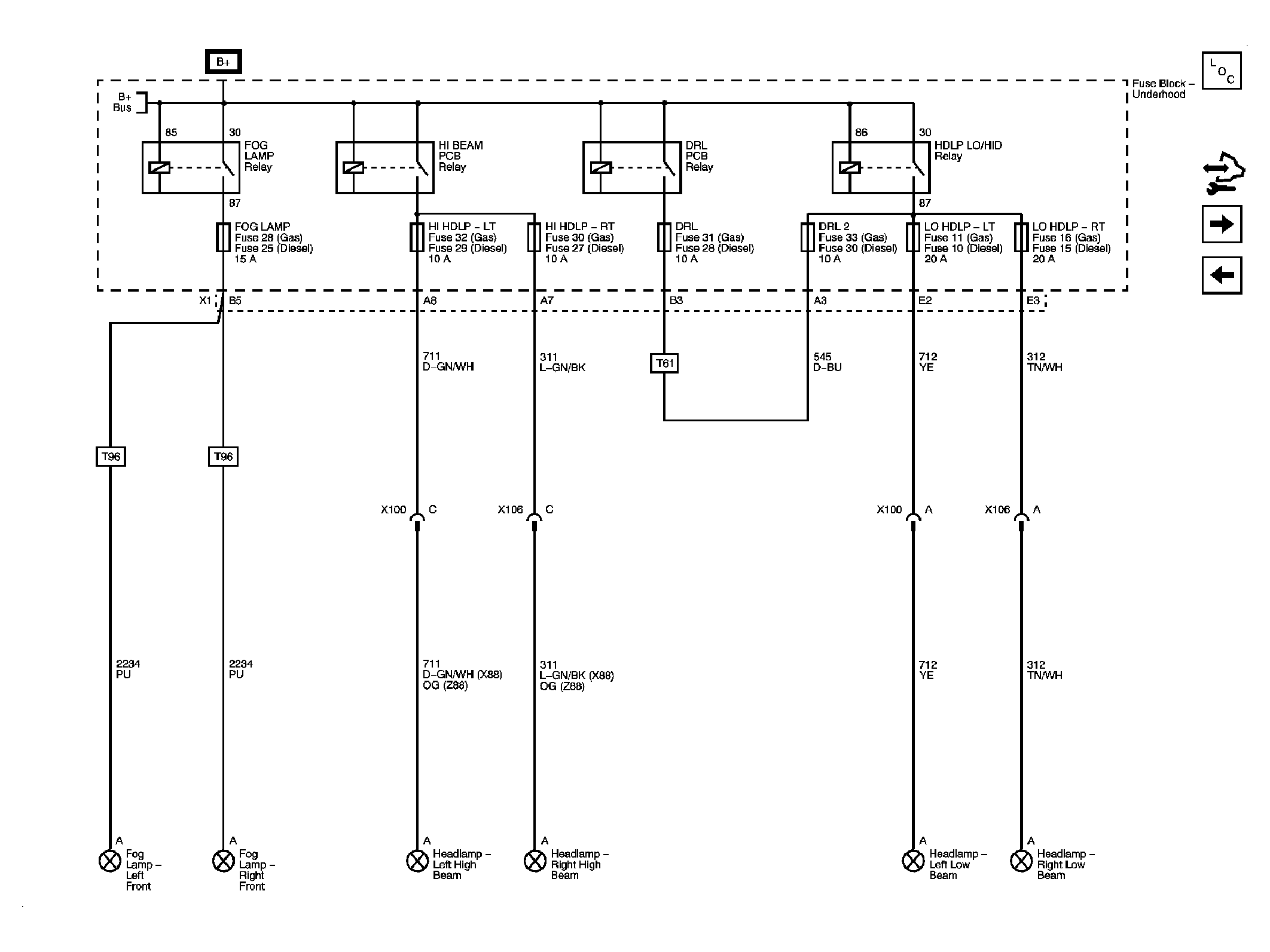

Fig 24: DRL, DRL 2, FOG LAMP, LO HDLP-LT, LO HDLP-RT, HI HDLP-LT & HI HDLP-RT Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

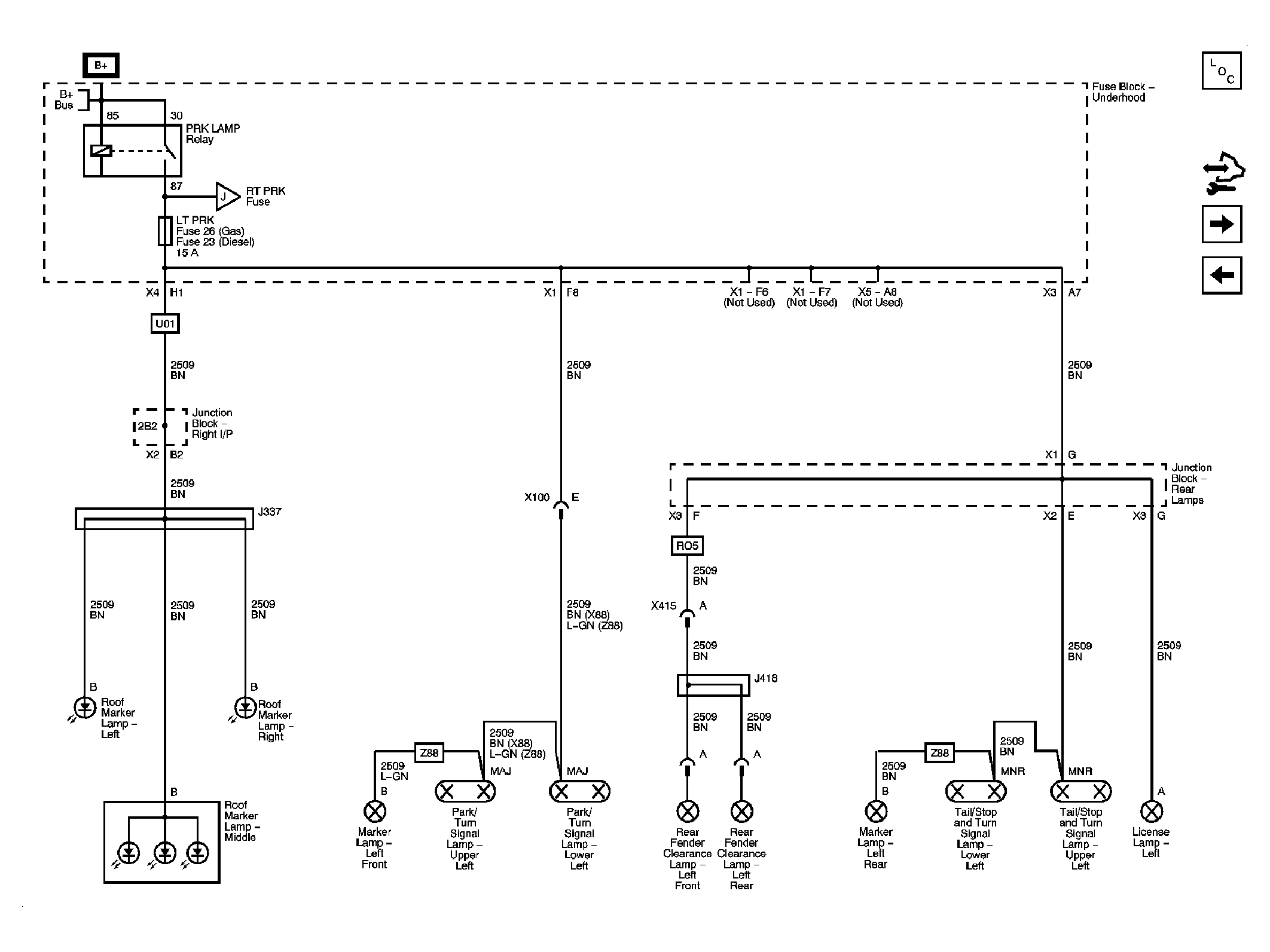

Fig 25: LT PRK Fuse Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

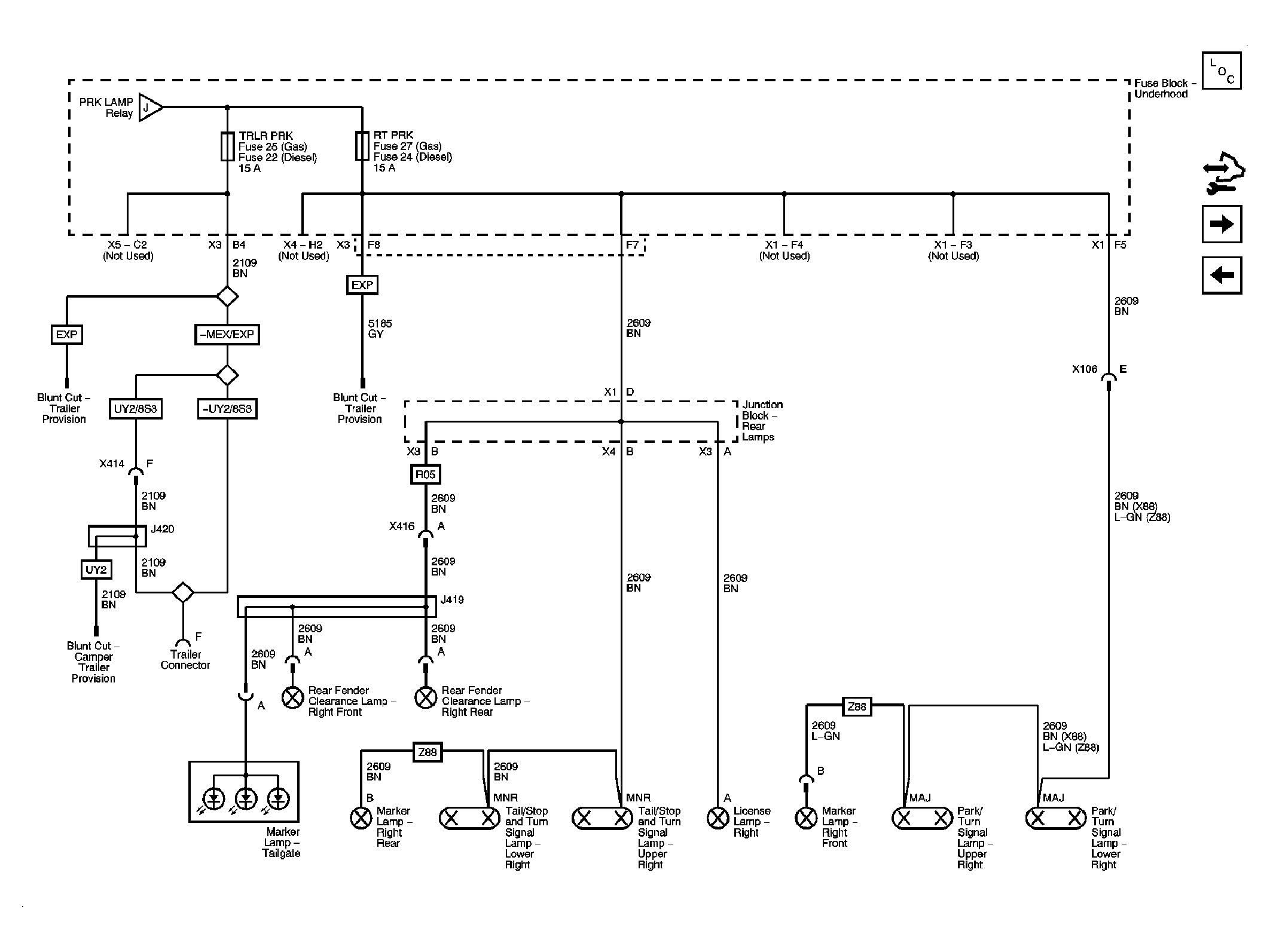

Fig 26: RT PRK & TRLR PRK Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

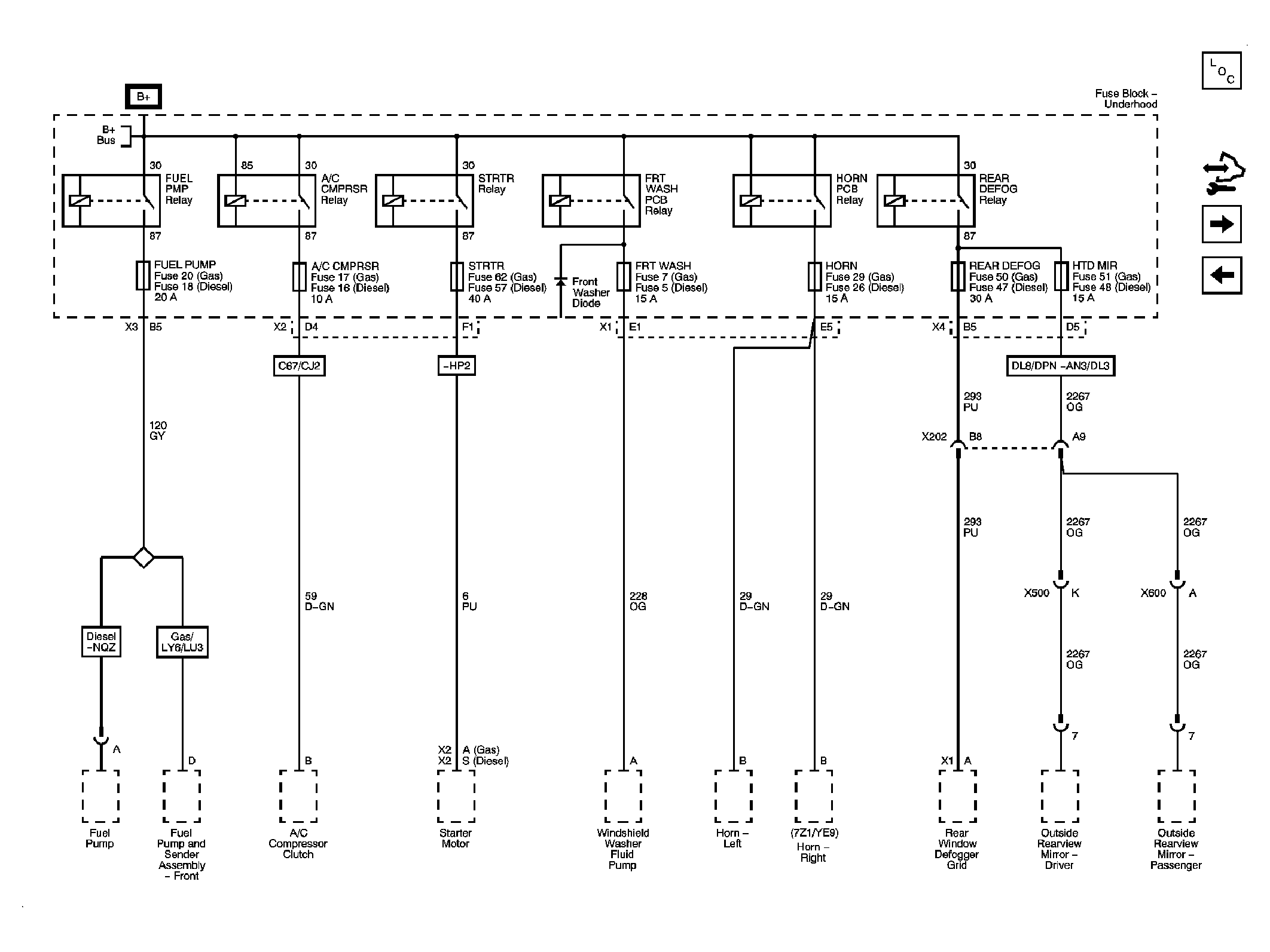

Fig 27: A/C CMPRSR, FRT WASH, FUEL PUMP, HORN, HTD MIR, REAR DEFOG & STRTR Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

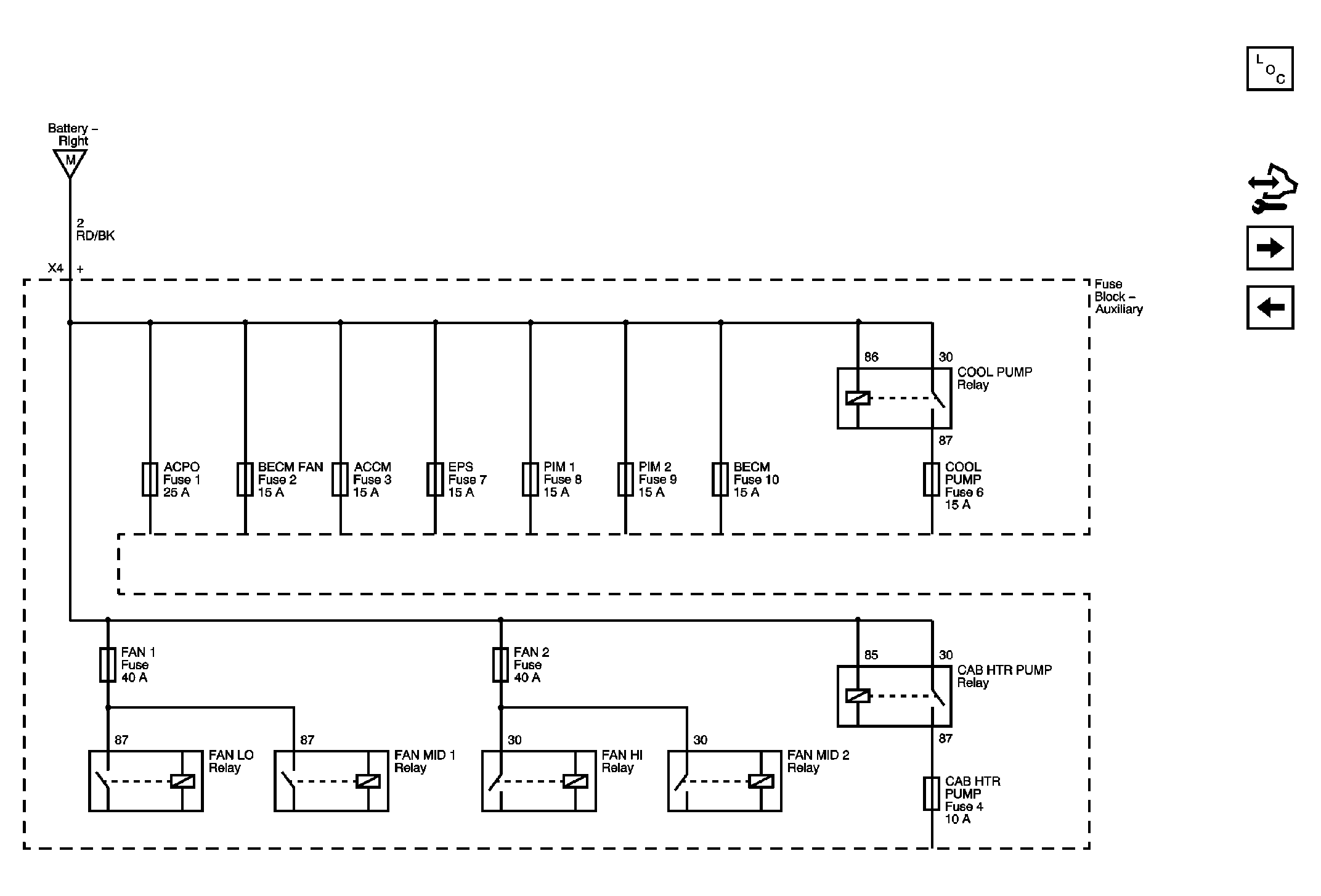

Fig 28: Fuse Block - Auxiliary B+ Bus (HP2) Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

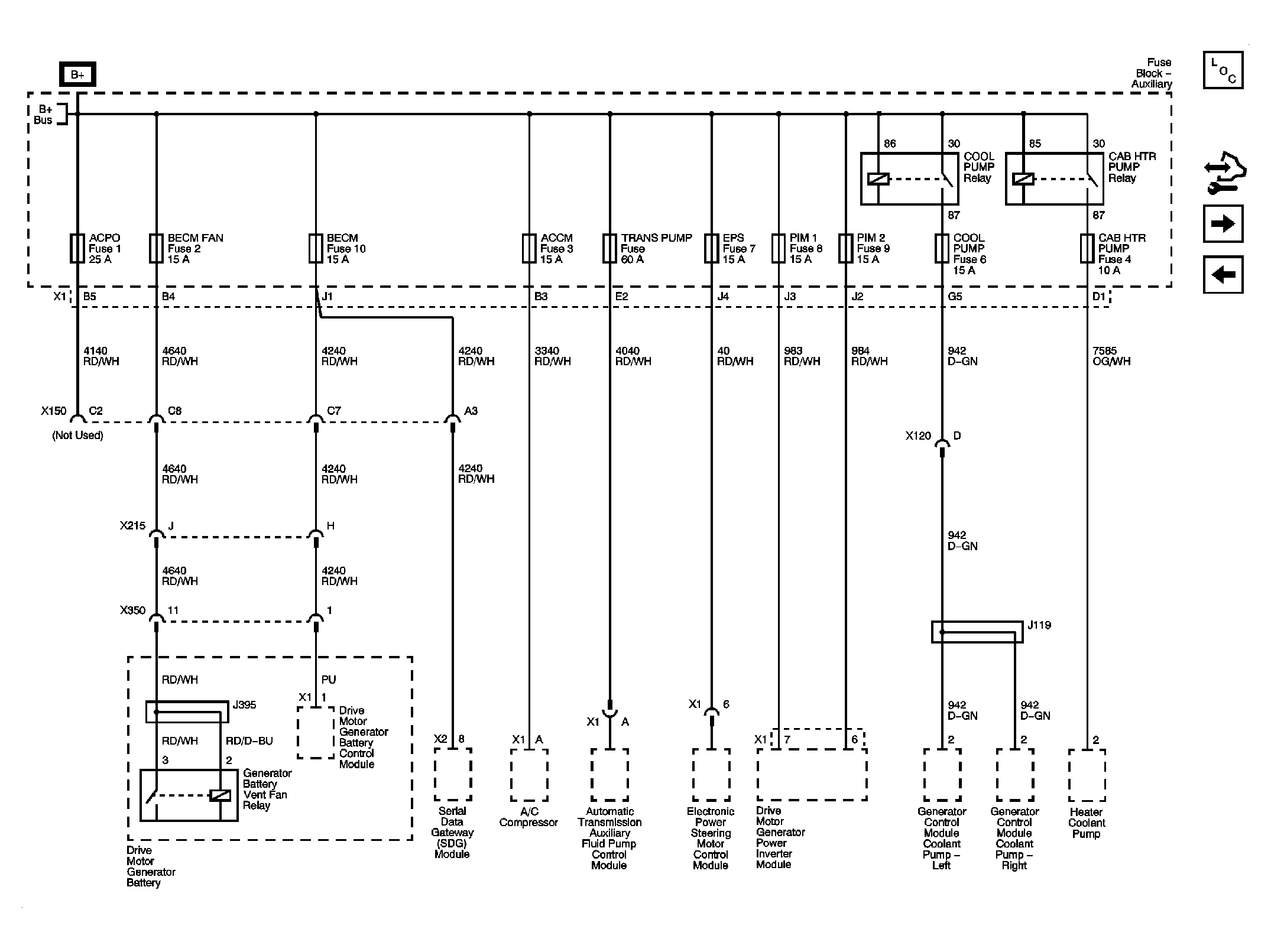

Fig 29: ACCM, ACPO, BECM, BECM FAN, CAB HTR PUMP, COOL PUMP, EPS, PIM 1 & PIM 2 Fuses (HP2) Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 30: FAN 1 & FAN 2 Fuses (HP2) Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
