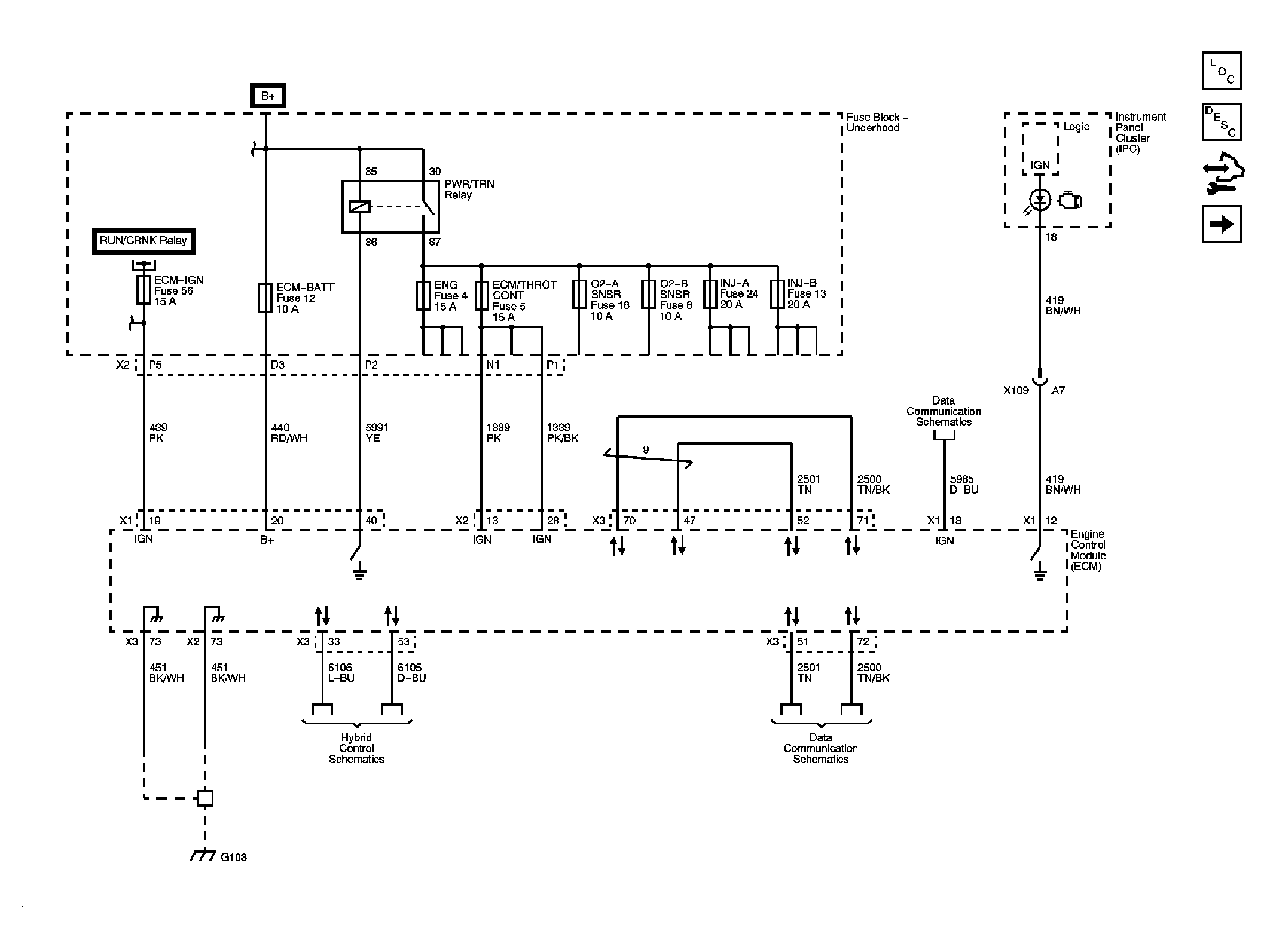

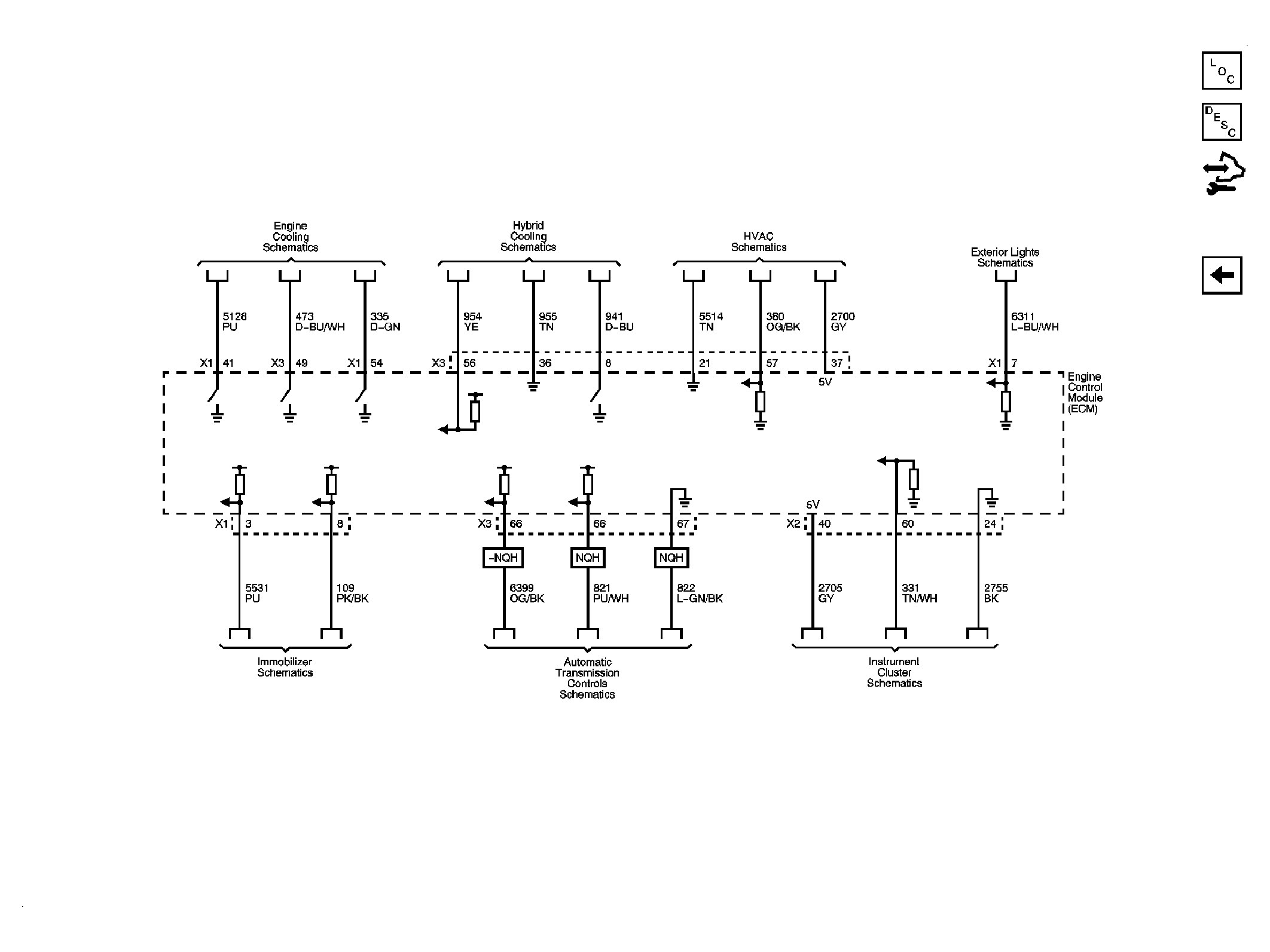

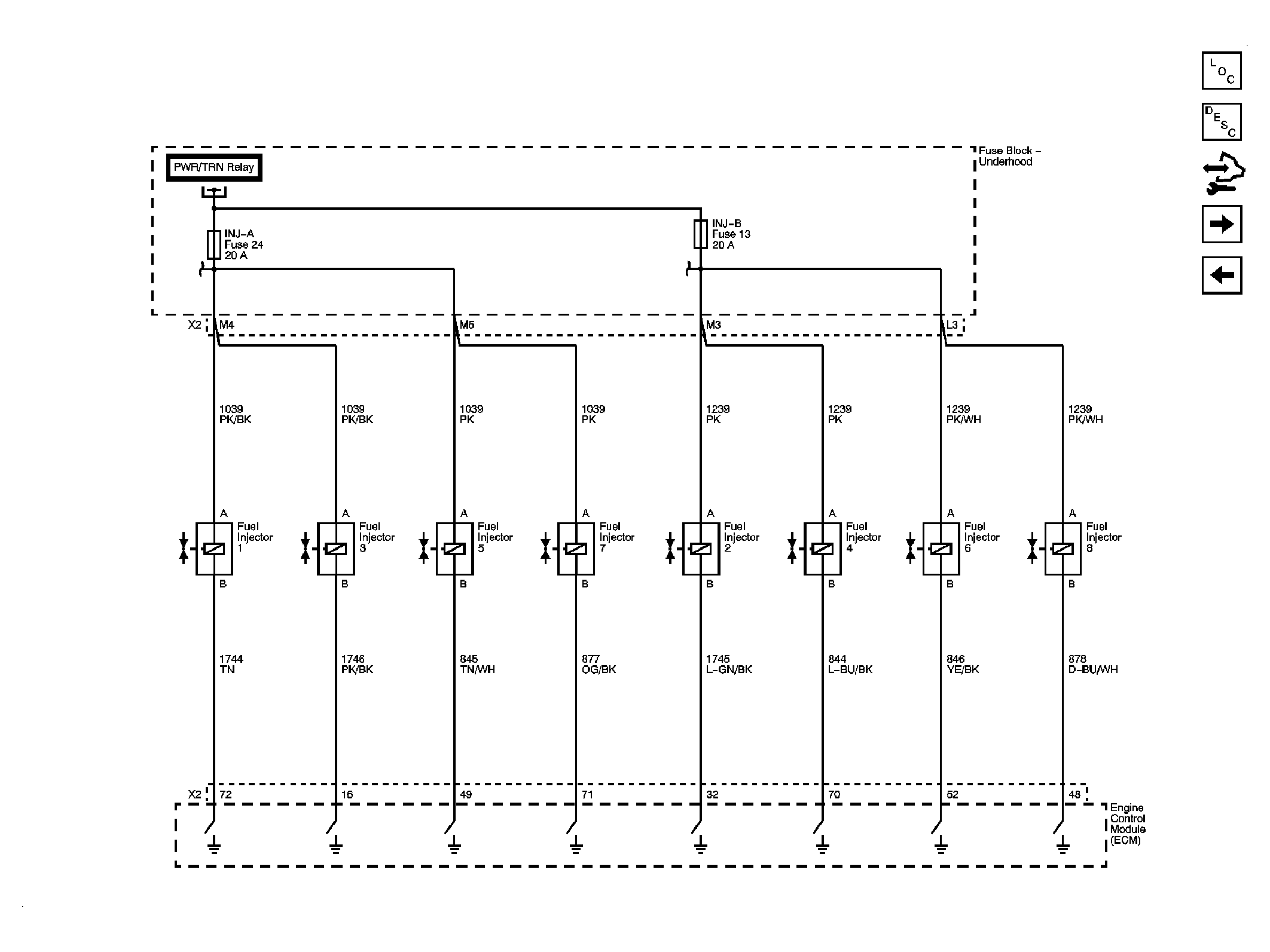

Fig 1: Module Power, Ground, Serial Data, and MIL
Courtesy of GENERAL MOTORS CORP.

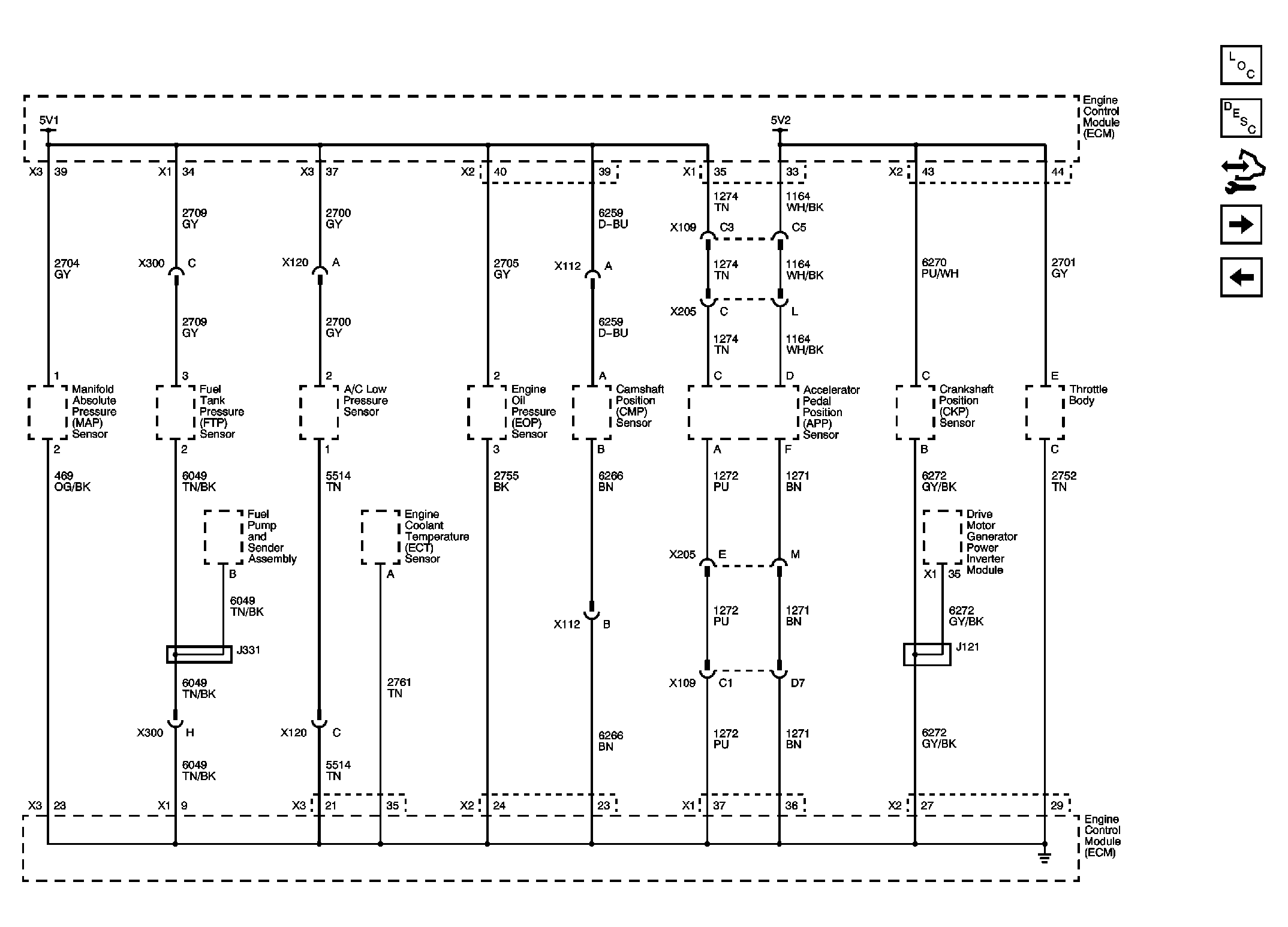

Fig 2: 5-Volt and Low Reference
Courtesy of GENERAL MOTORS CORP.

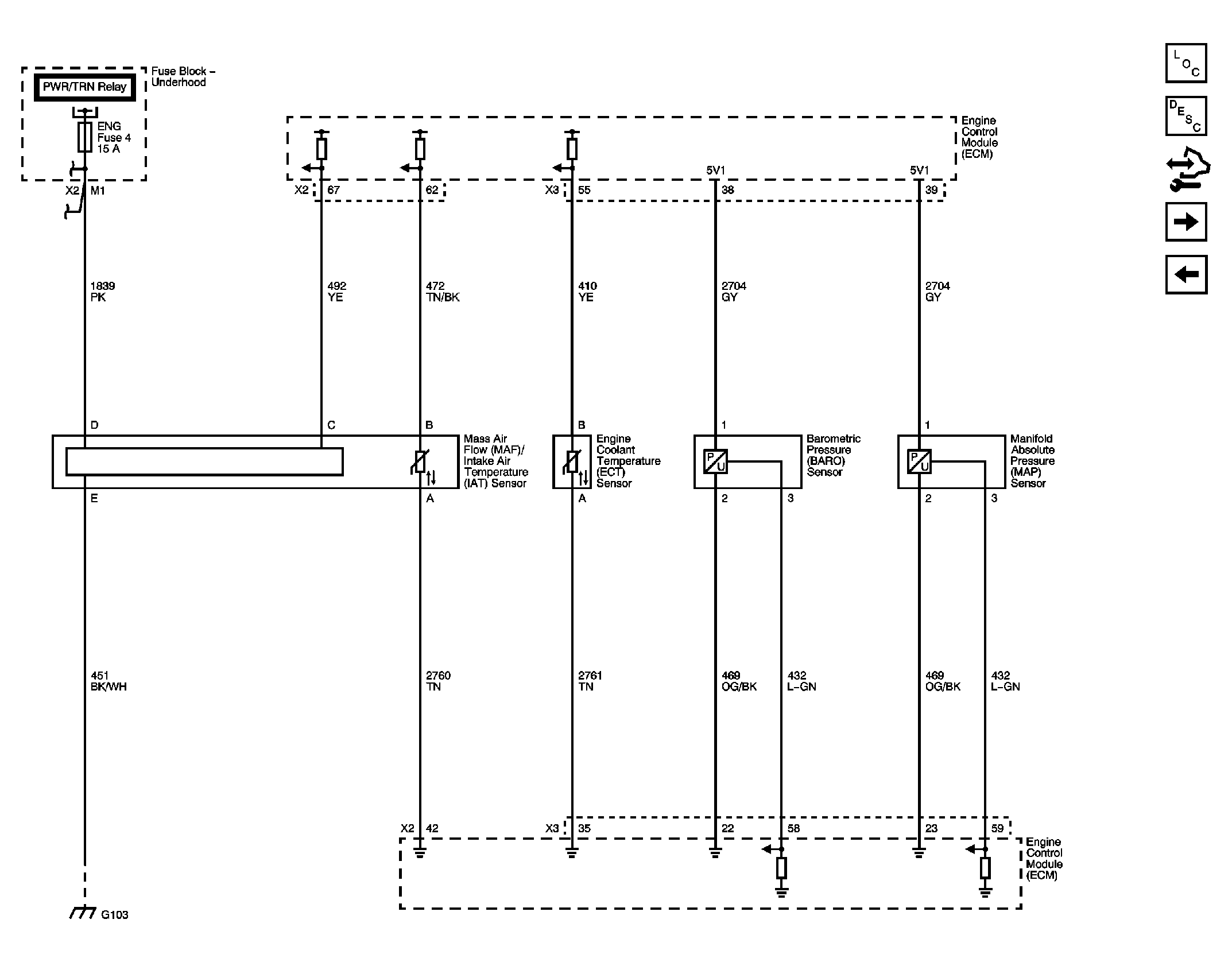

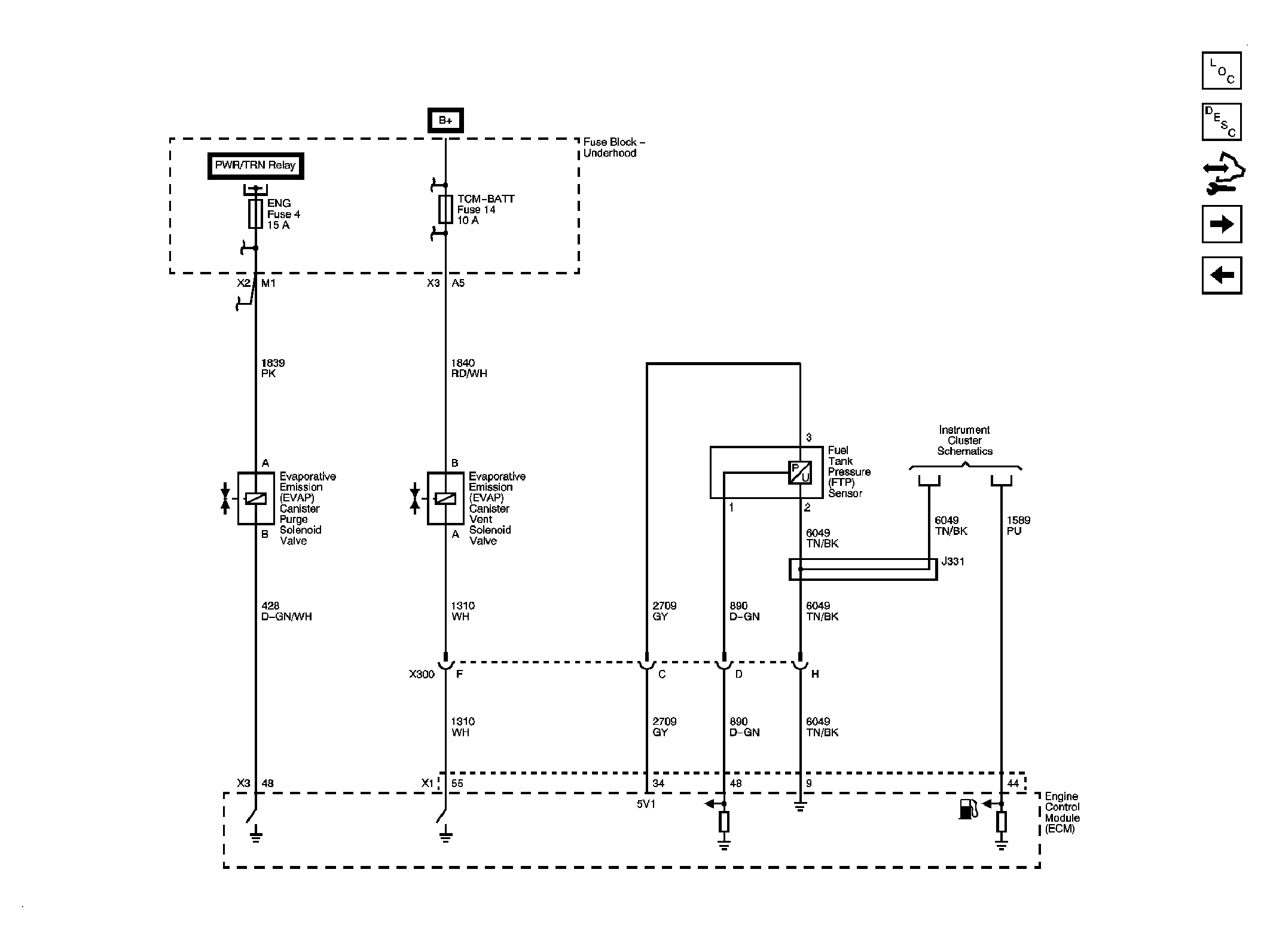

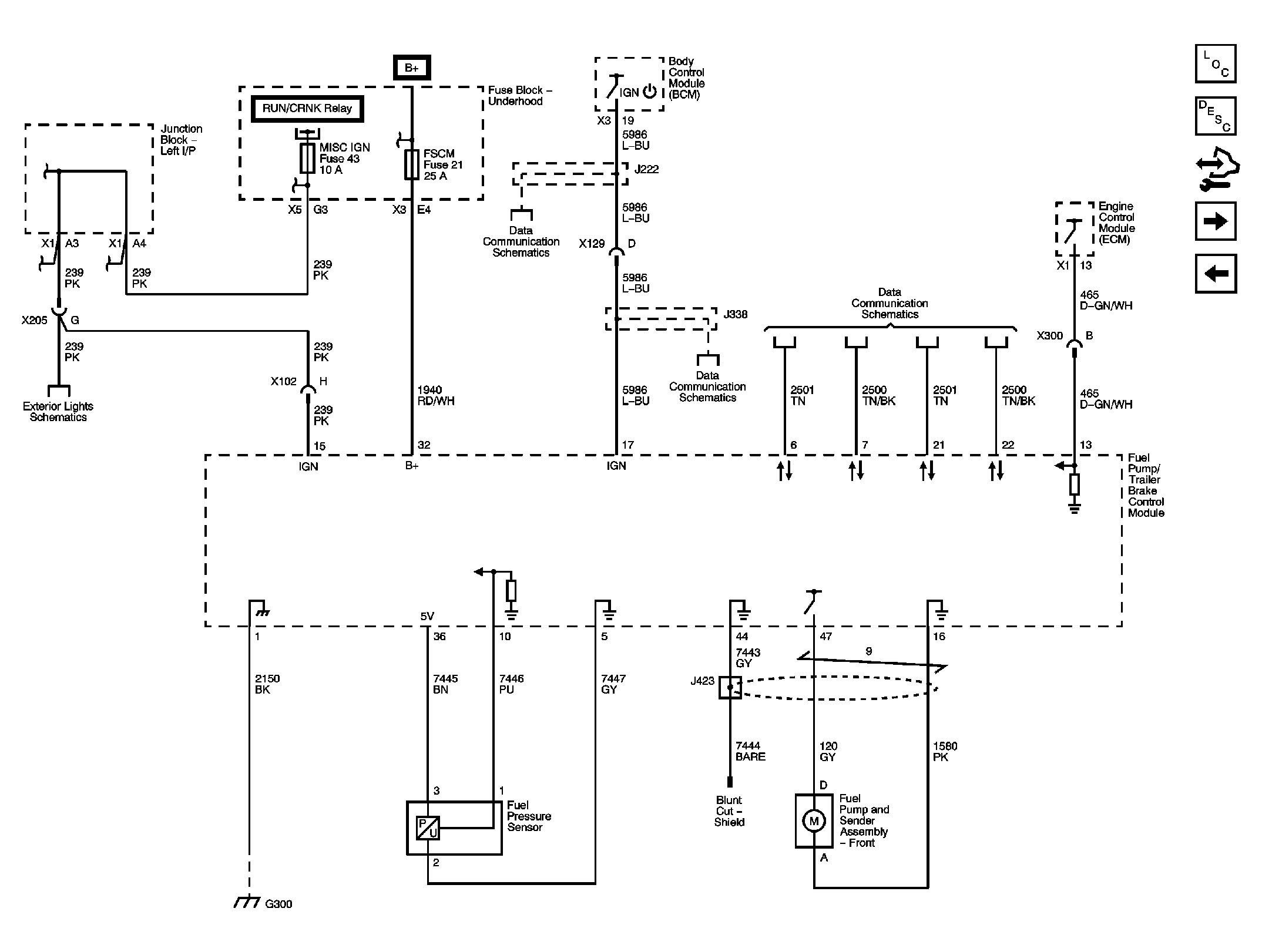

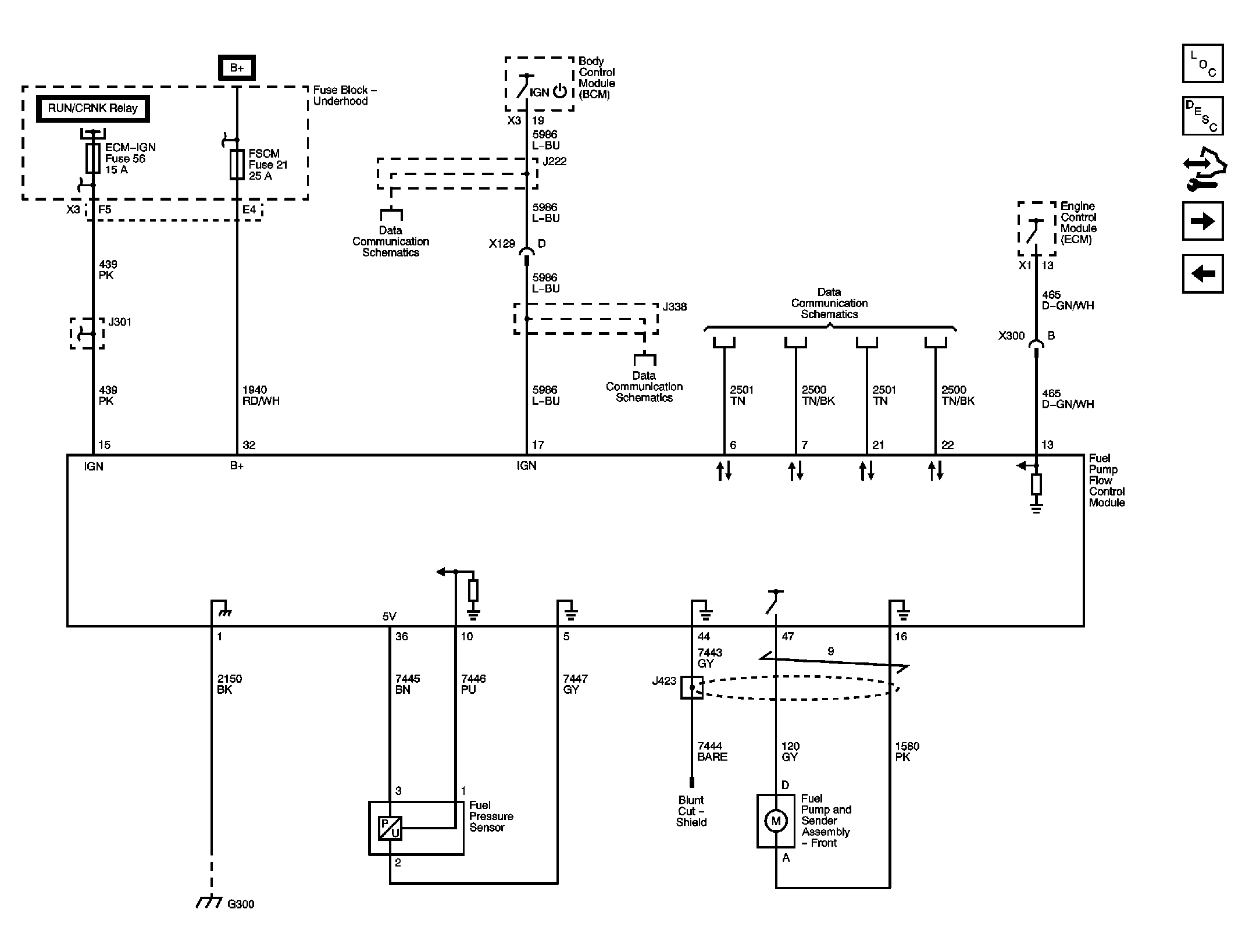

Fig 3: Engine Data Sensors - Pressure and Temperature
Courtesy of GENERAL MOTORS CORP.

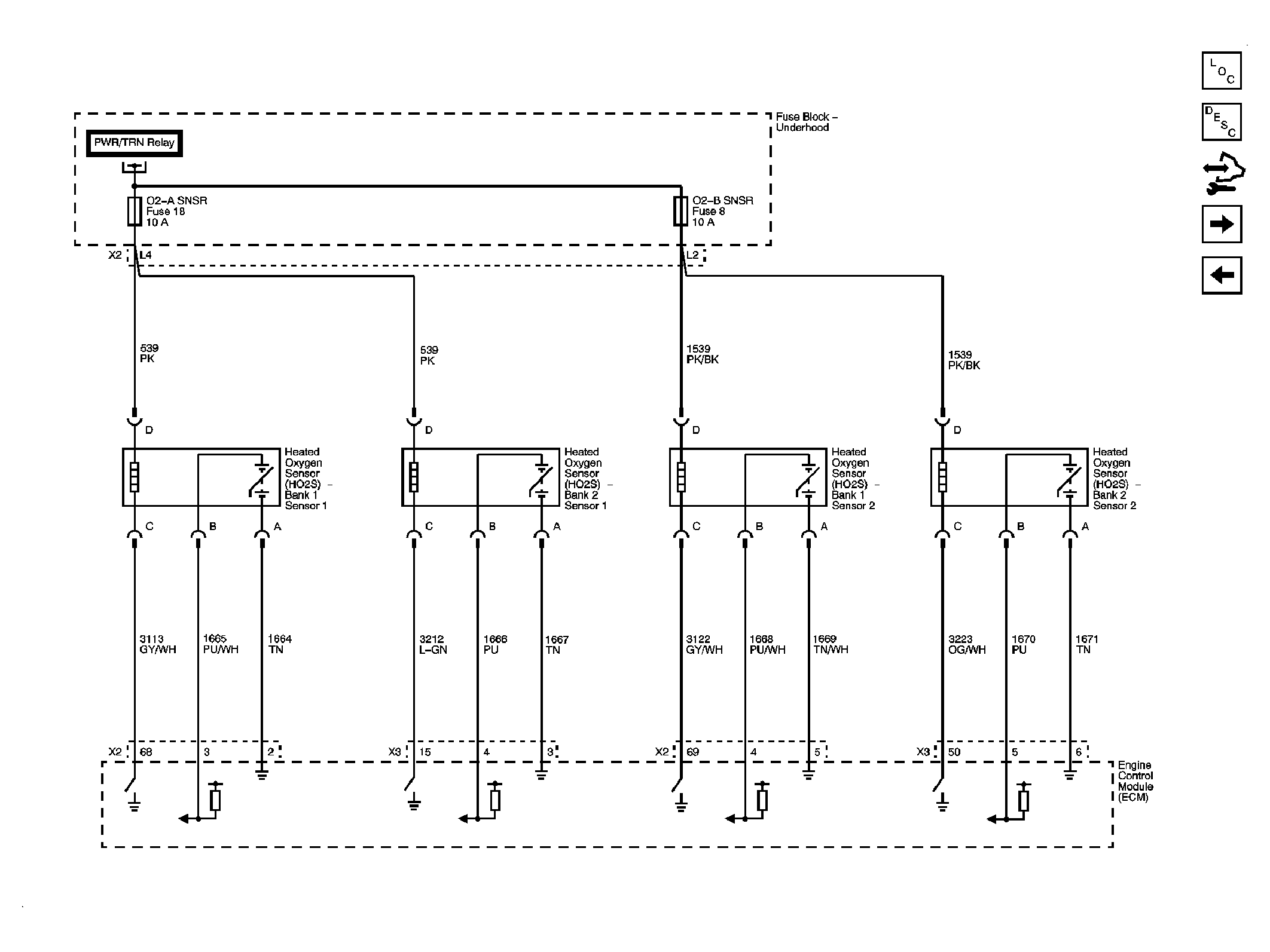

Fig 4: Engine Data Sensors - Heated Oxygen Sensors
Courtesy of GENERAL MOTORS CORP.

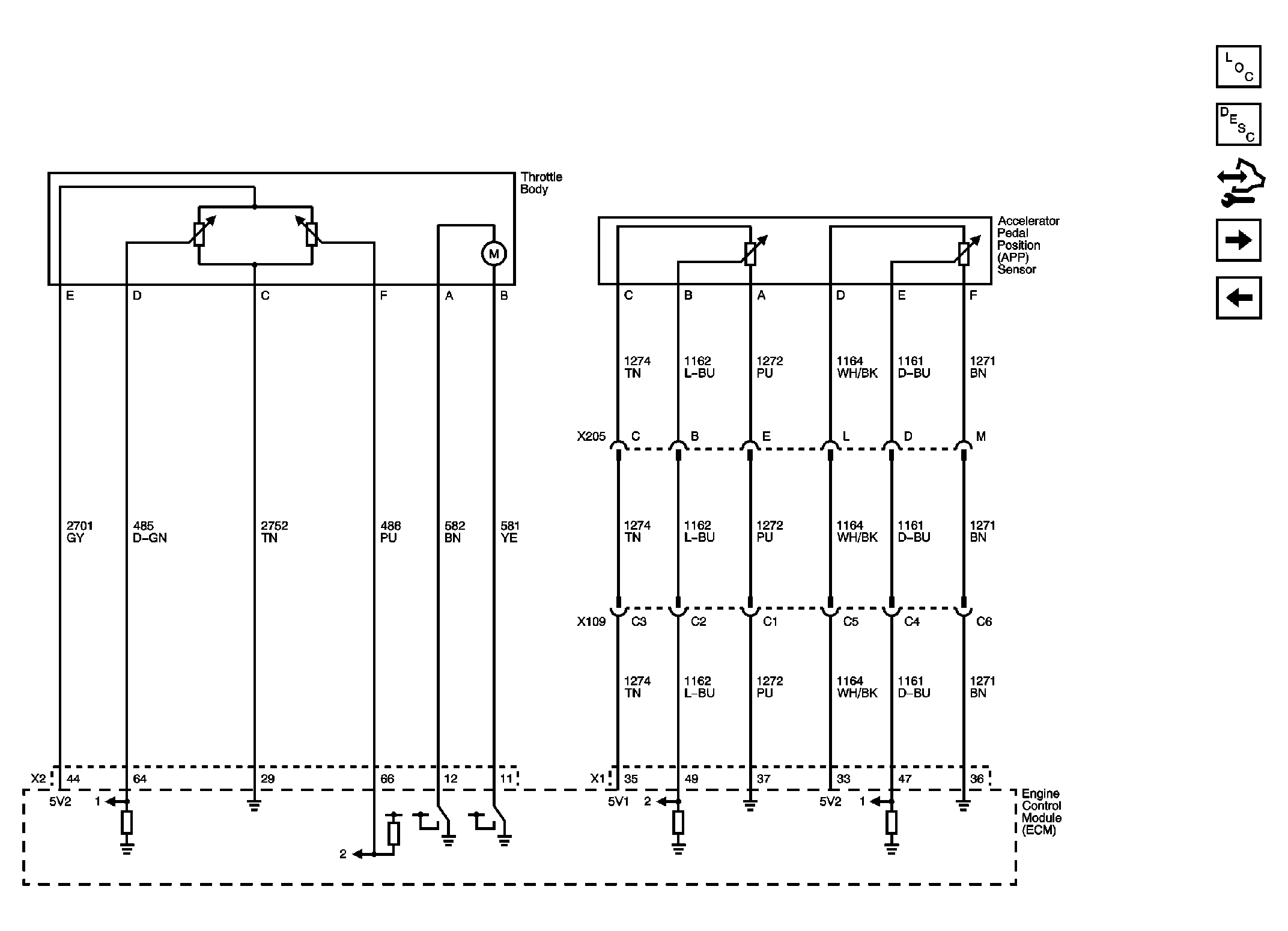

Fig 5: Engine Data Sensors - Throttle Controls
Courtesy of GENERAL MOTORS CORP.

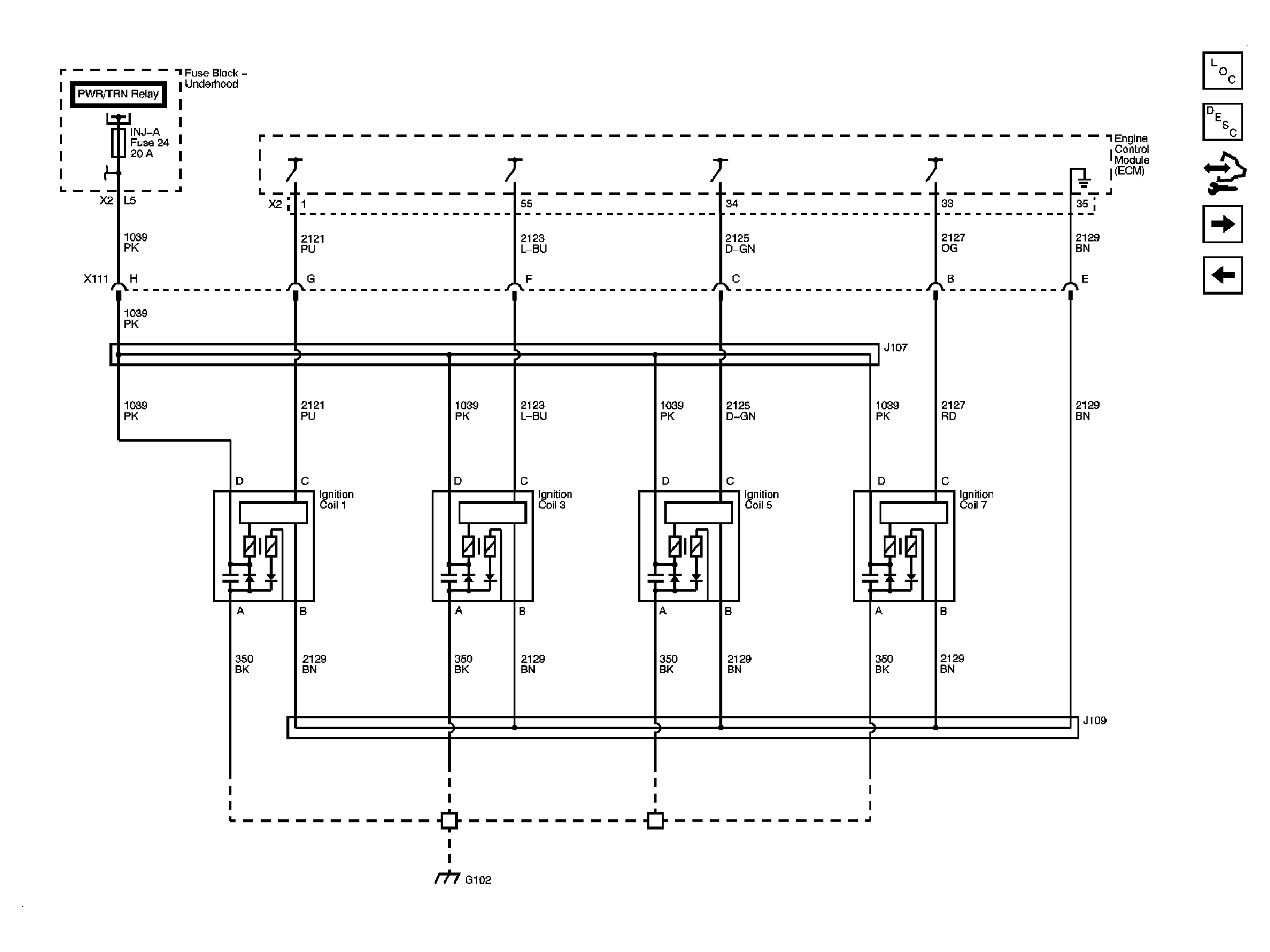

Fig 6: Ignition Controls - Ignition System Coils 1, 3, 5, and 7
Courtesy of GENERAL MOTORS CORP.

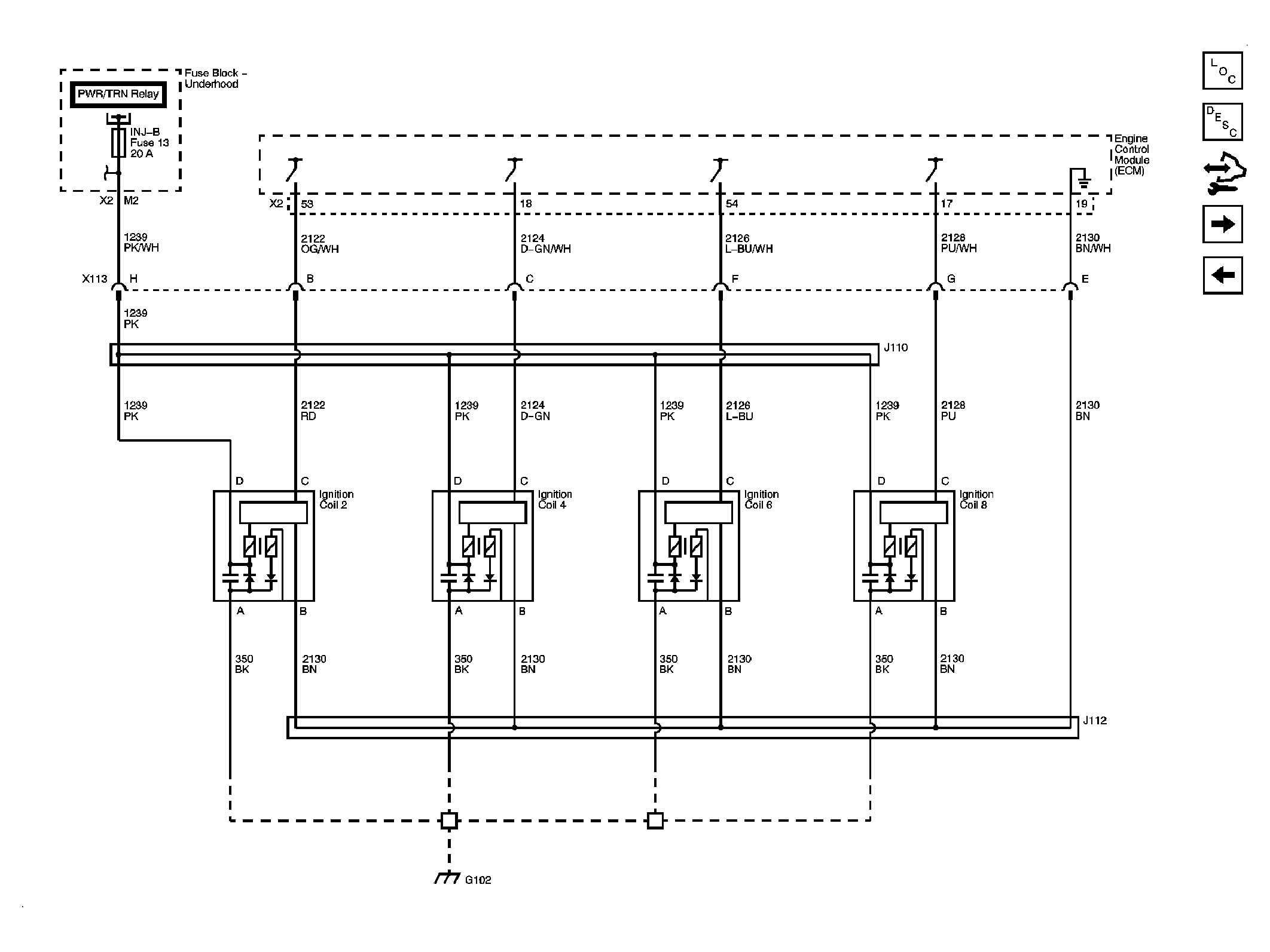

Fig 7: Ignition Controls - Ignition System Coils 2, 4, 6, and 8
Courtesy of GENERAL MOTORS CORP.

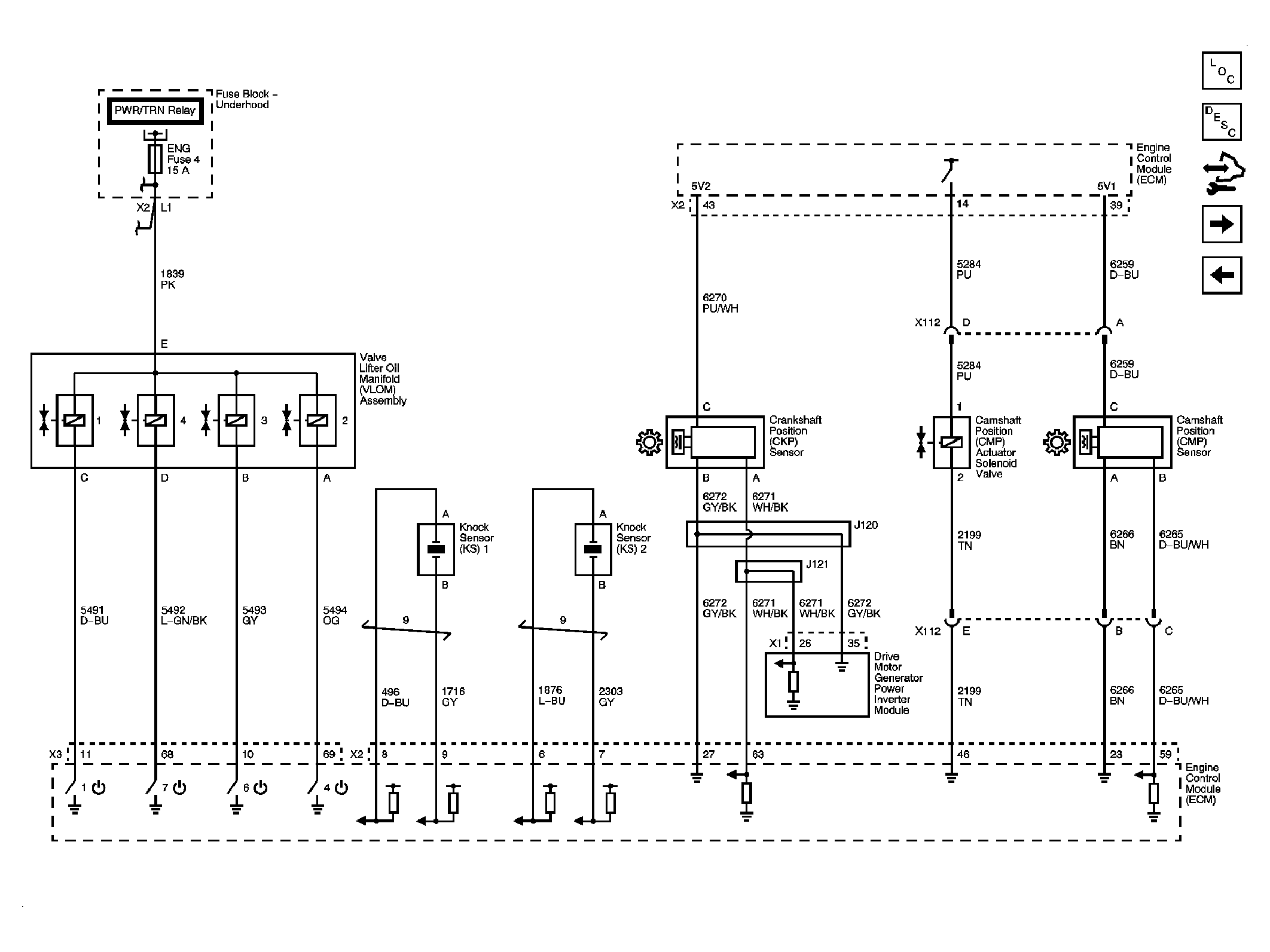

Fig 8: Ignition Controls - Sensors and Active Fuel Management (AFM) Controls
