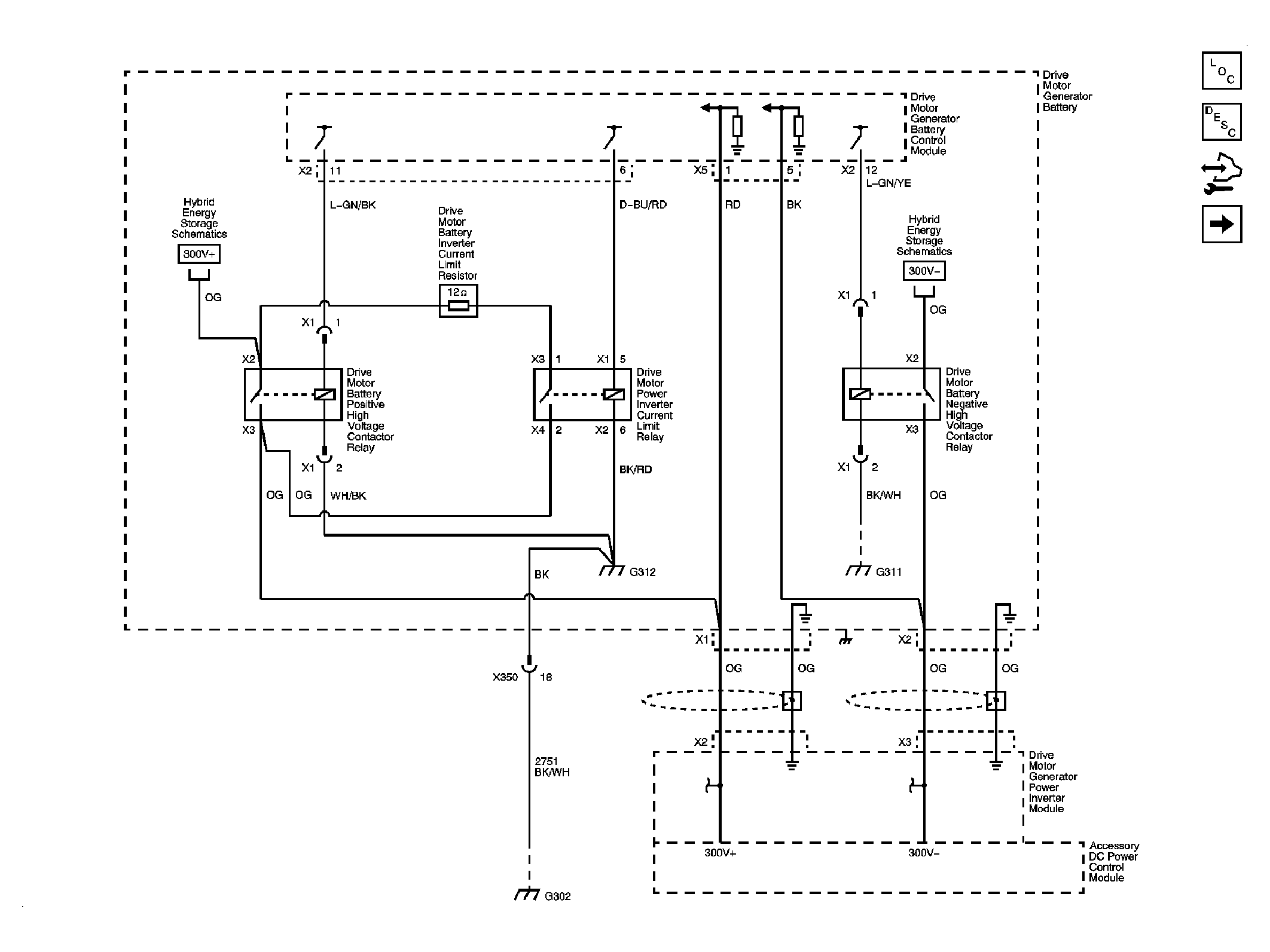

Fig 1: Main Power Contractors
Courtesy of GENERAL MOTORS CORP.

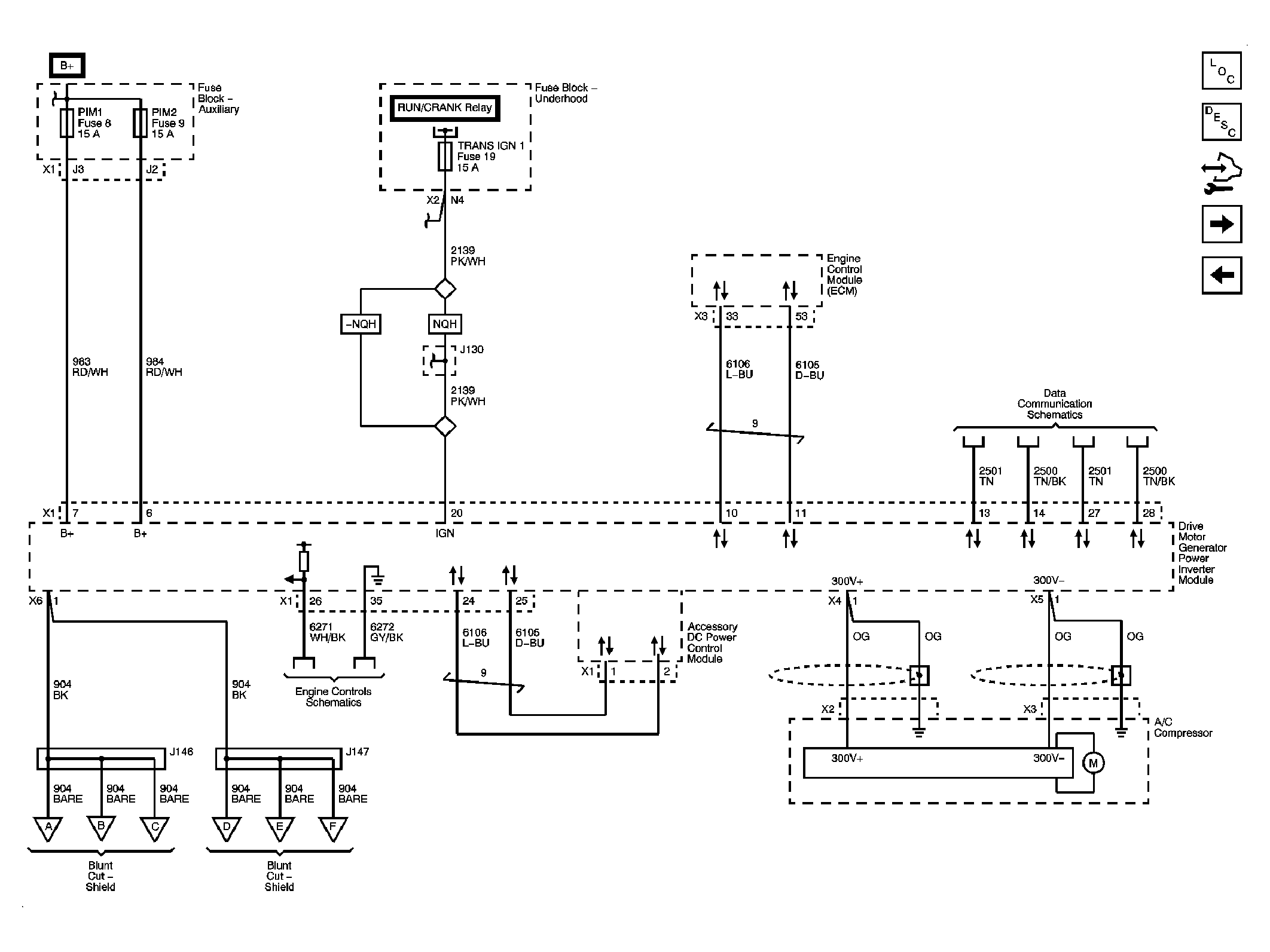

Fig 2: Drive Motor Generator Power Inverter Module Power and Data Communication, High Voltage A/C Compressor Control
Courtesy of GENERAL MOTORS CORP.

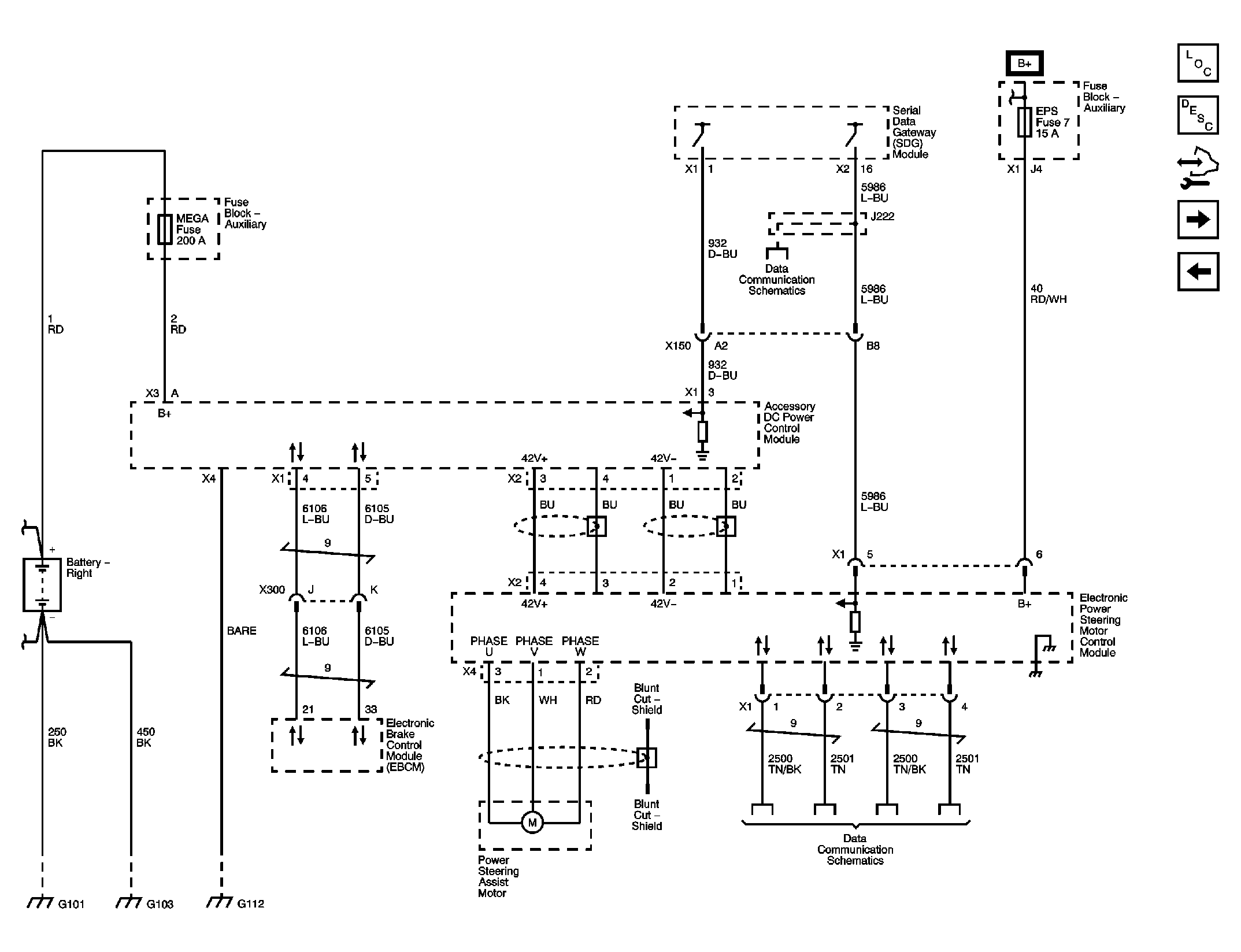

Fig 3: Accessory DC Power Control, Hybrid Power Steering
Courtesy of GENERAL MOTORS CORP.

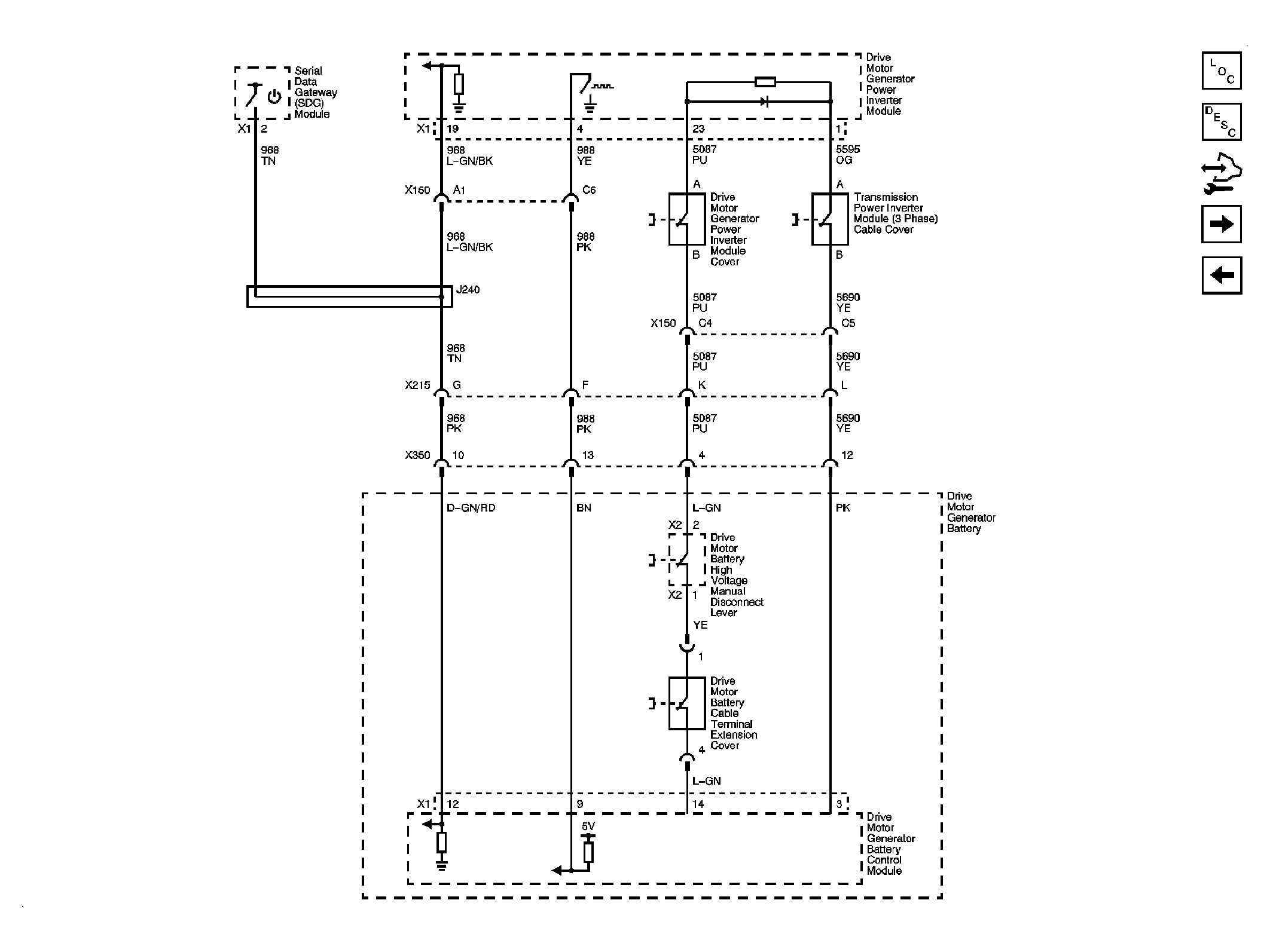

Fig 4: High Voltage Interlock Circuit (HVIC), Contractor Control Circuit
Courtesy of GENERAL MOTORS CORP.

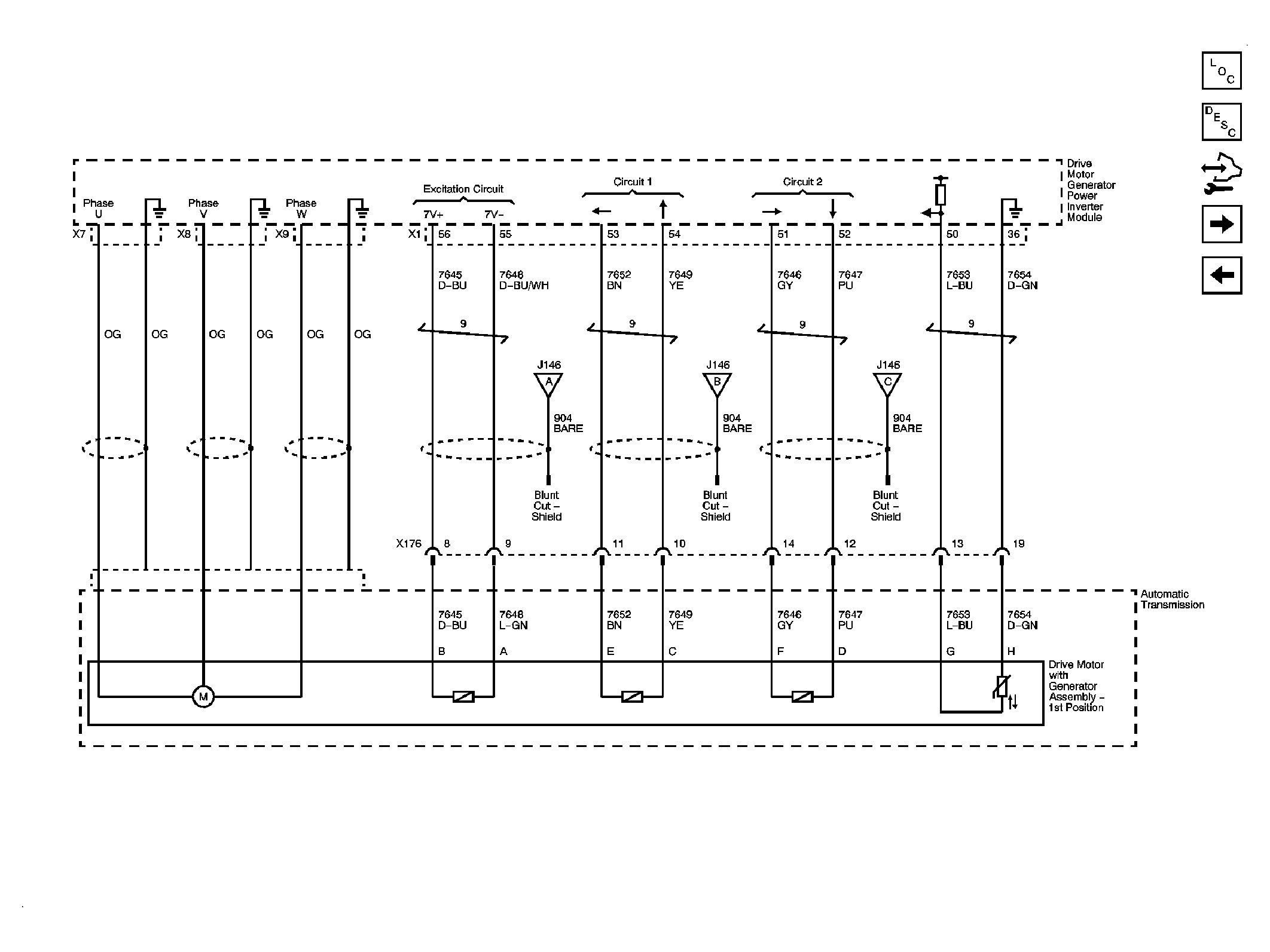

Fig 5: Drive Motor with Generator Assembly - 1st Position
Courtesy of GENERAL MOTORS CORP.

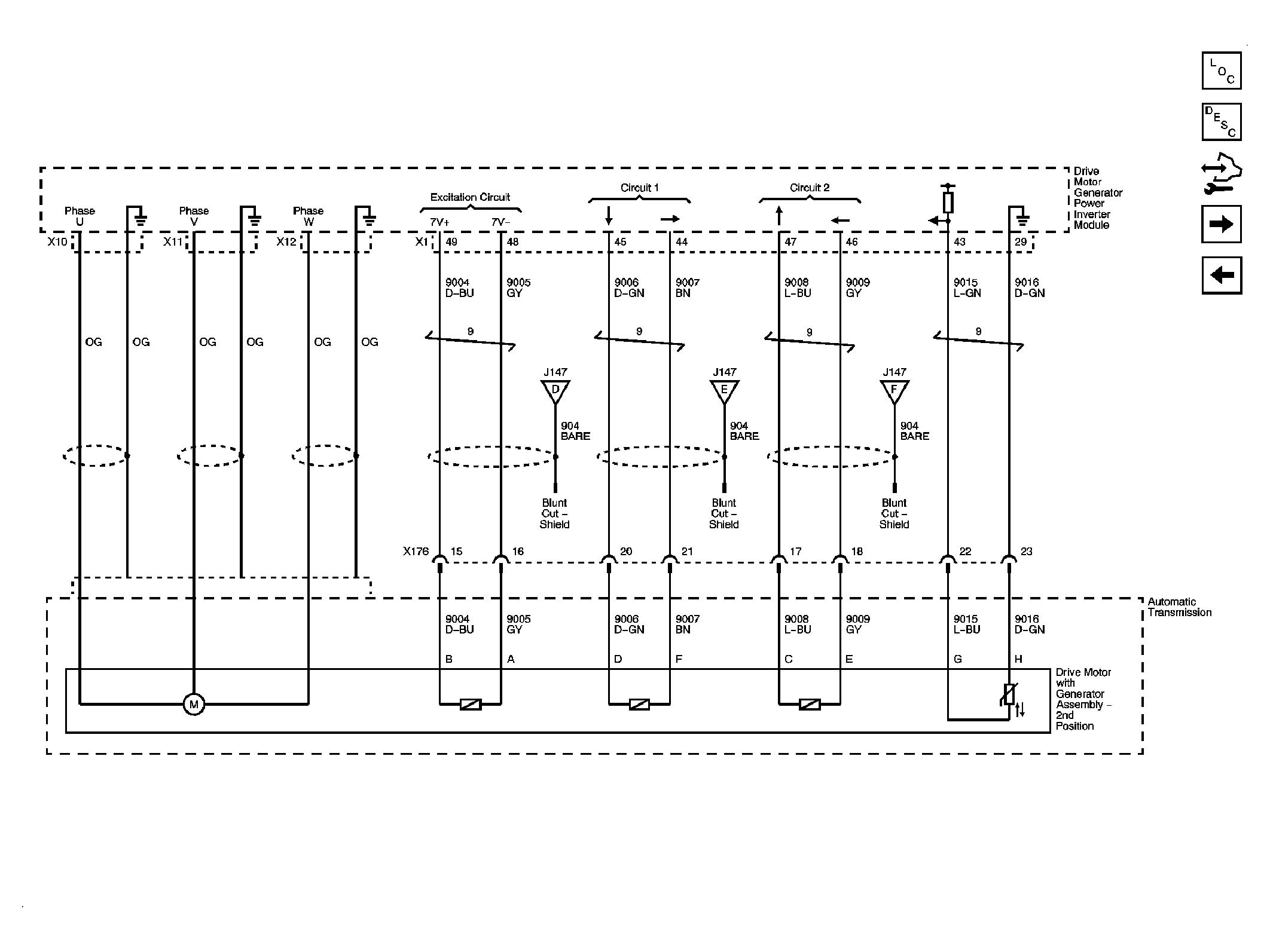

Fig 6: Drive Motor with Generator Assembly - 2nd Position
