Driver Seat Schematics

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

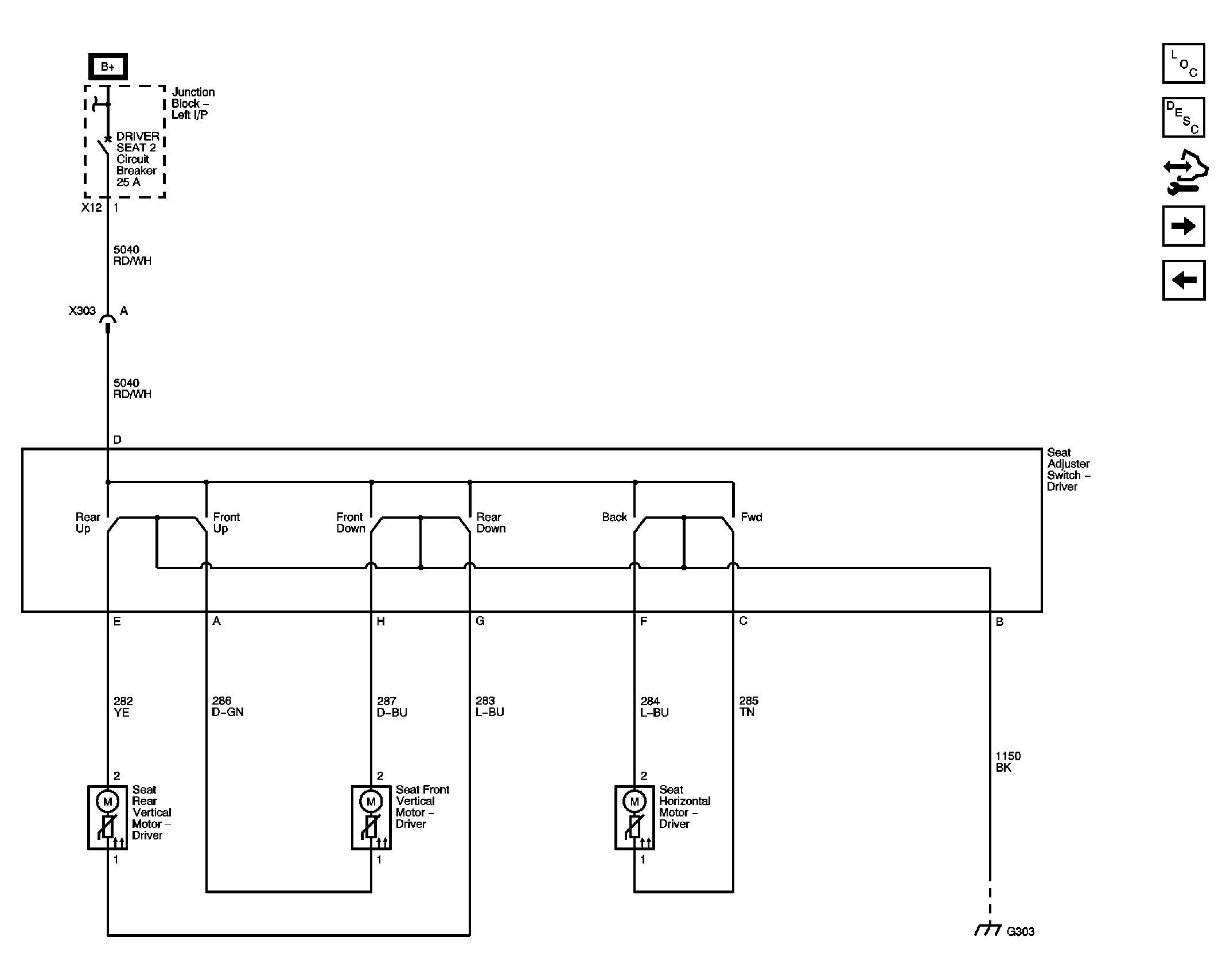

Fig 1: 6-Way Power (except AN3/HP2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: 6-Way Power (HP2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Module Power, Ground, Serial Data, and Memory Switch (AN3)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Seat Adjuster Switches (AN3)

Courtesy of GENERAL MOTORS CORP.

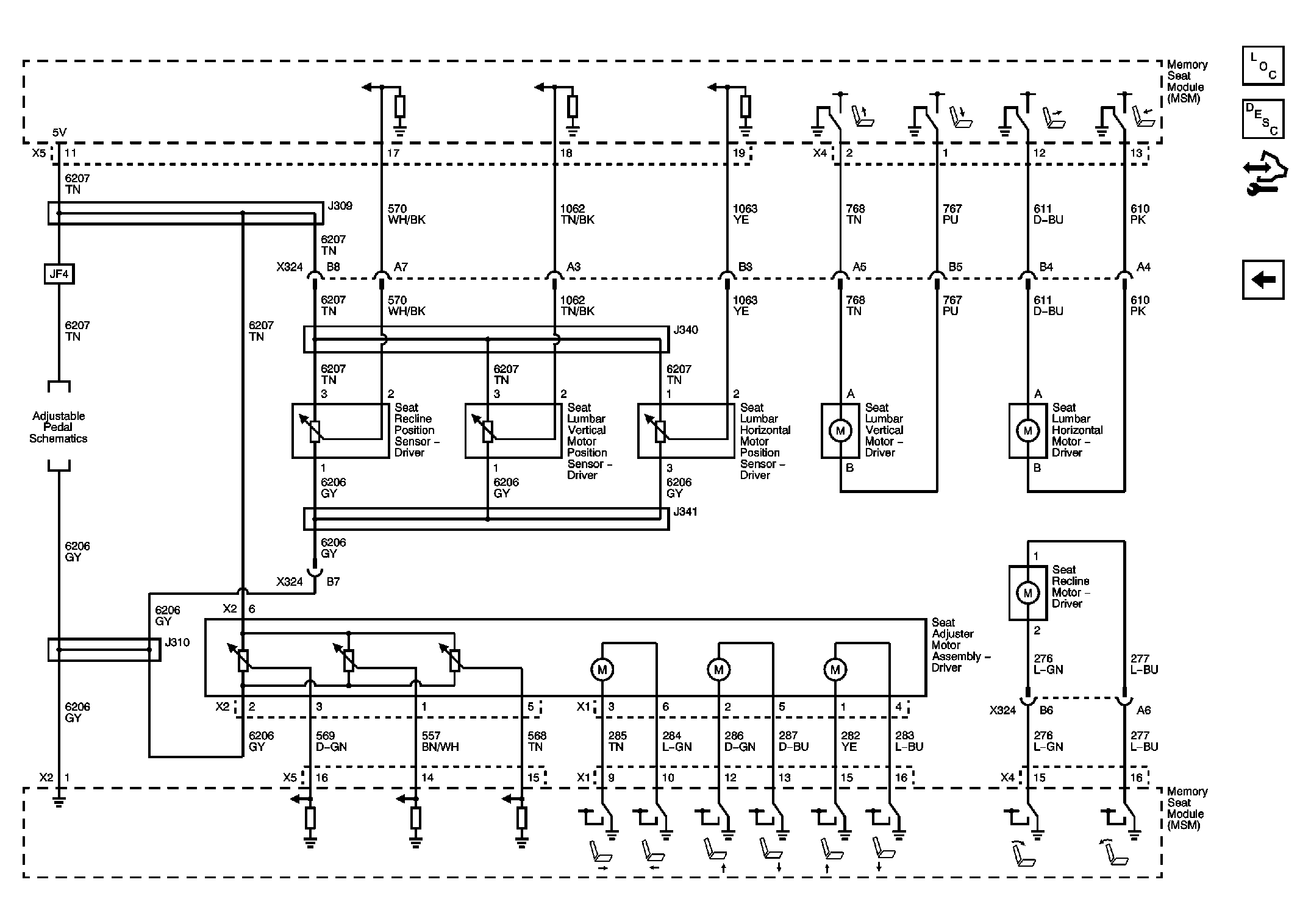

Fig 5: Motors and Position Sensors (AN3)

Courtesy of GENERAL MOTORS CORP.
