Instrument Panel Cluster Trim Plate Cover Replacement (Without RPO SLT)
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

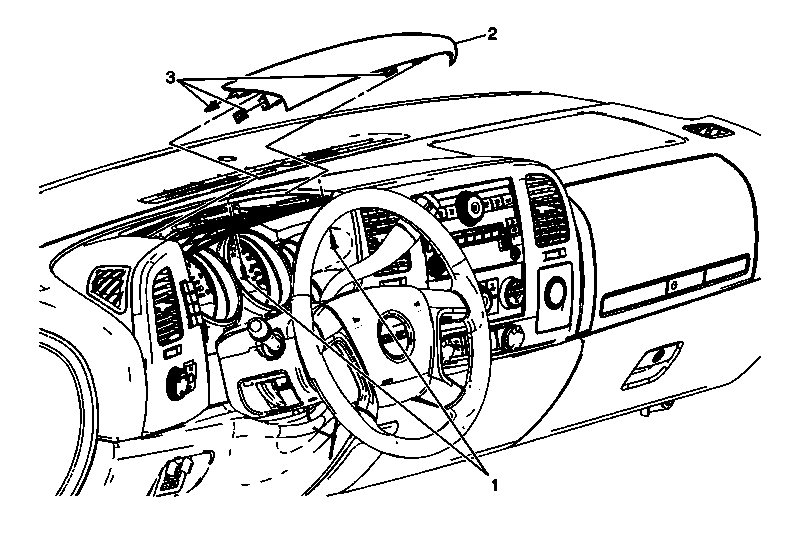

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Cluster Trim Plate Cover Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Cluster Trim Plate Cover Assembly |
| 3 | Retainer Clip (Qty: 4) |
