Instrument Panel Cluster Trim Plate Cover Replacement (With RPO SLT)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

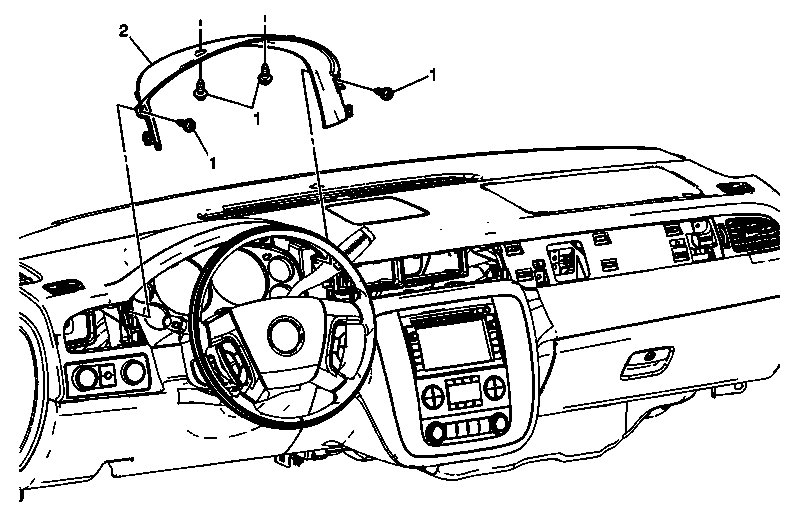

Fig 1: Instrument Panel Cluster Trim Plate Cover (With RPO SLT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Tilt the steering wheel to its lowest position. Remove the instrument panel left air outlet. Refer to Instrument Panel Outer Air Outlet Replacement - Left Side (with RPO SLT) or Instrument Panel Outer Air Outlet Replacement - Left Side (without RPO SLT) . Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (with RPO SLT) .
1	Instrument Panel Cluster Trim Plate Cover Assembly Screws (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Cluster Trim Plate Cover Assembly

Callout

Component Name

Preliminary Procedures

Tilt the steering wheel to its lowest position.
Remove the instrument panel left air outlet. Refer to Instrument Panel Outer Air Outlet Replacement - Left Side (with RPO SLT) or Instrument Panel Outer Air Outlet Replacement - Left Side (without RPO SLT) .
Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (with RPO SLT) .

Instrument Panel Cluster Trim Plate Cover Assembly Screws (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Instrument Panel Cluster Trim Plate Cover Assembly
