Rear Seat Replacement (Extended Cab with AM7)
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

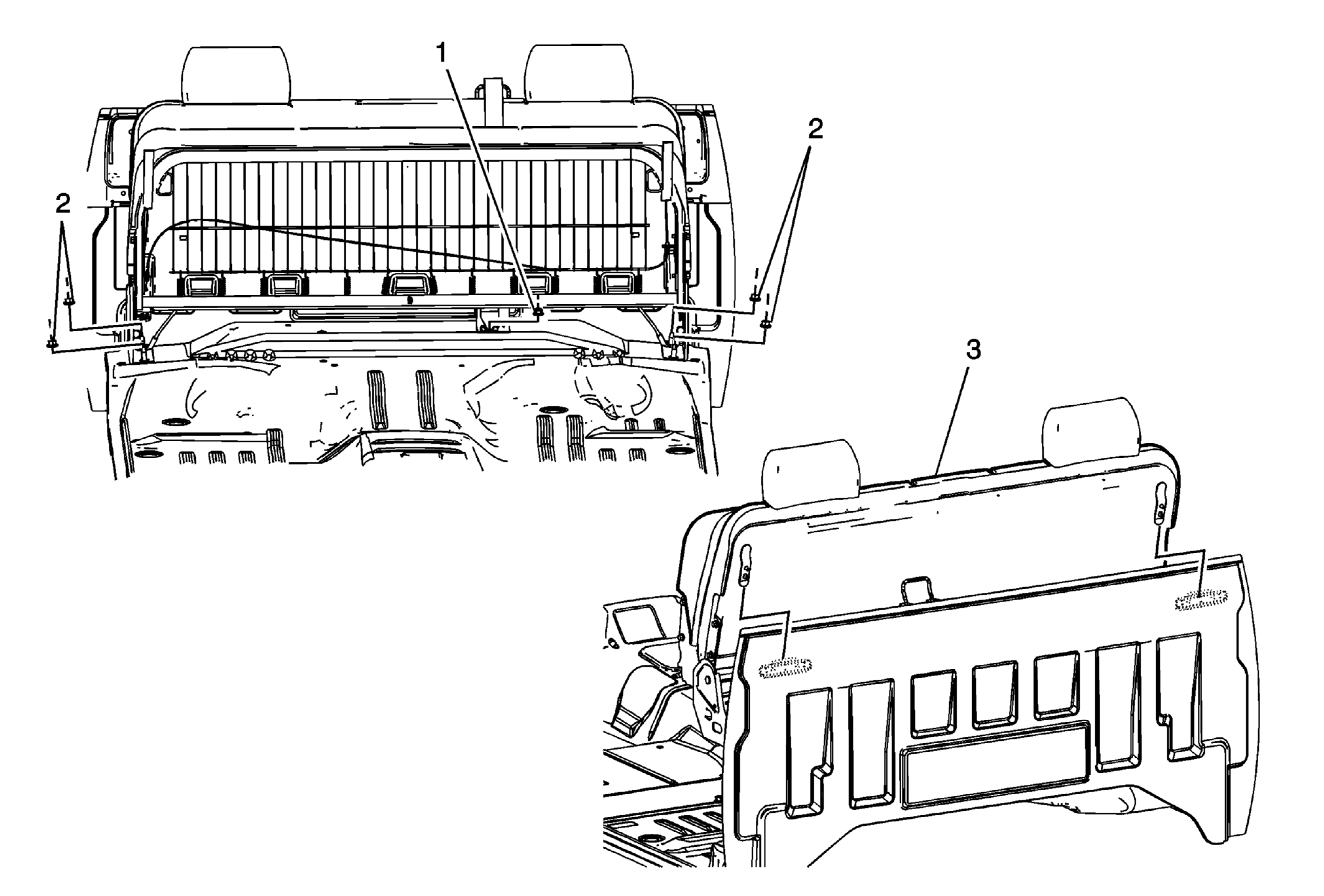

| Callout | Component Name |
|---|---|
| 1 | Rear Seat Belt Anchor Nut
CAUTION:
Refer to Fastener Caution
. Tip: Fold the rear seat cushion up to access the nut. Tighten: 50 N.m (37 lb ft) |
| 2 | Rear Seat Nut (Qty: 4) Tighten: 50 N.m (37 lb ft) |
| 3 | Rear Seat Assembly Tip: Lift the seat assembly upward to release the rear seat back hooks from the rear of the cab. |
