Transmission Fluid Cooler Pipe Replacement - Front

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

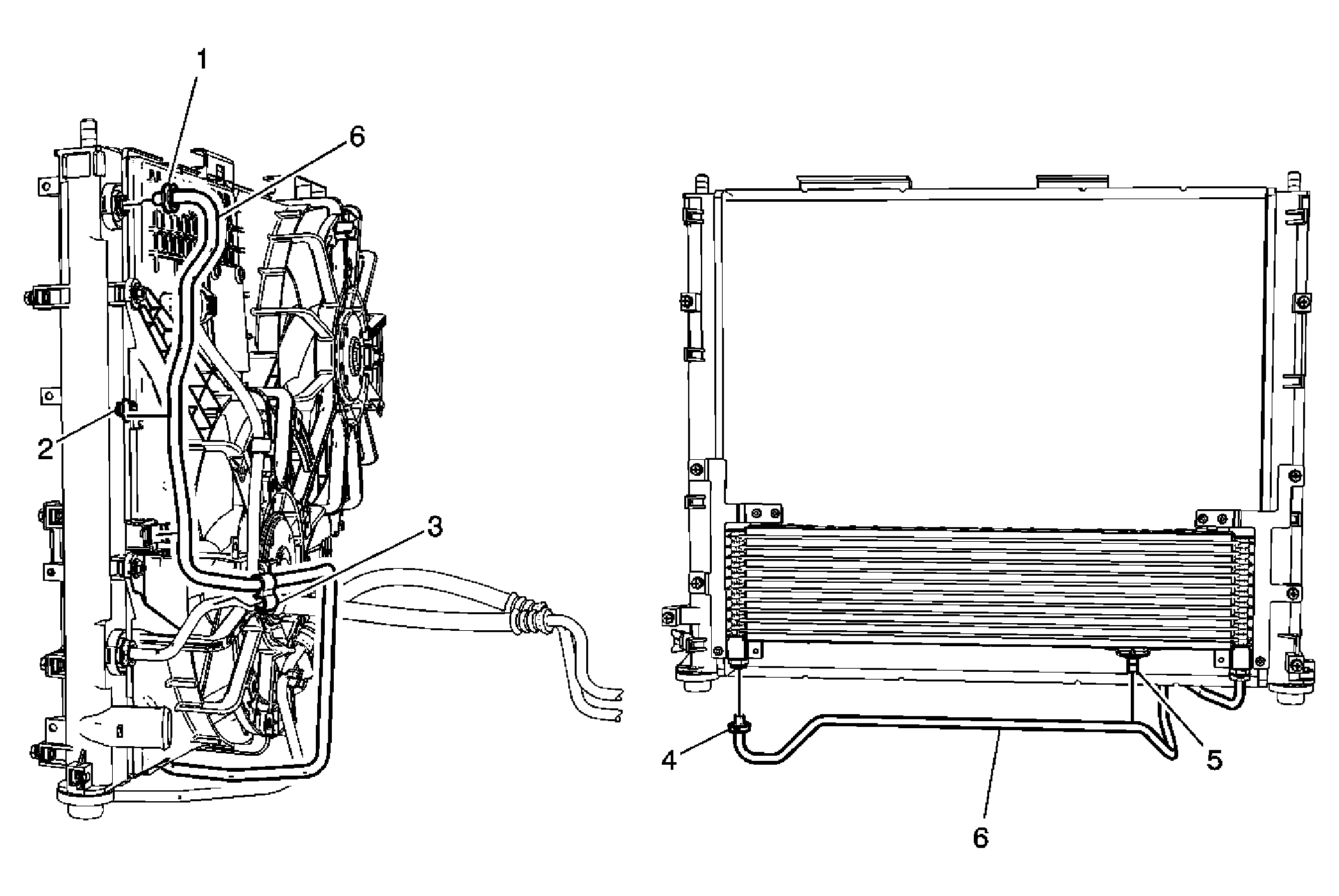

Fig 1: Transmission Fluid Cooler Pipe Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures IMPORTANT: It is not necessary to discharge the refrigerant from the air conditioning (A/C) system during auxiliary transmission oil cooler (TOC) front line replacement. Remove the A/C condenser mounting bolts and reposition the condenser. Reposition the condenser to access the transmission oil cooler lines. Refer to Condenser Replacement . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front air deflector. Refer to Front Air Deflector Replacement .
1	Transmission Fluid Cooler Pipe. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
2	Transmission Fluid Cooler Pipe Shroud Retainer
3	Transmission Fluid Cooler Pipe Retainer
4	Transmission Fluid Cooler Pipe. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
5	Transmission Fluid Cooler Pipe Retainer
6	Transmission Fluid Cooler Pipe
