Transmission Fluid Pan Installation (6L50)
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

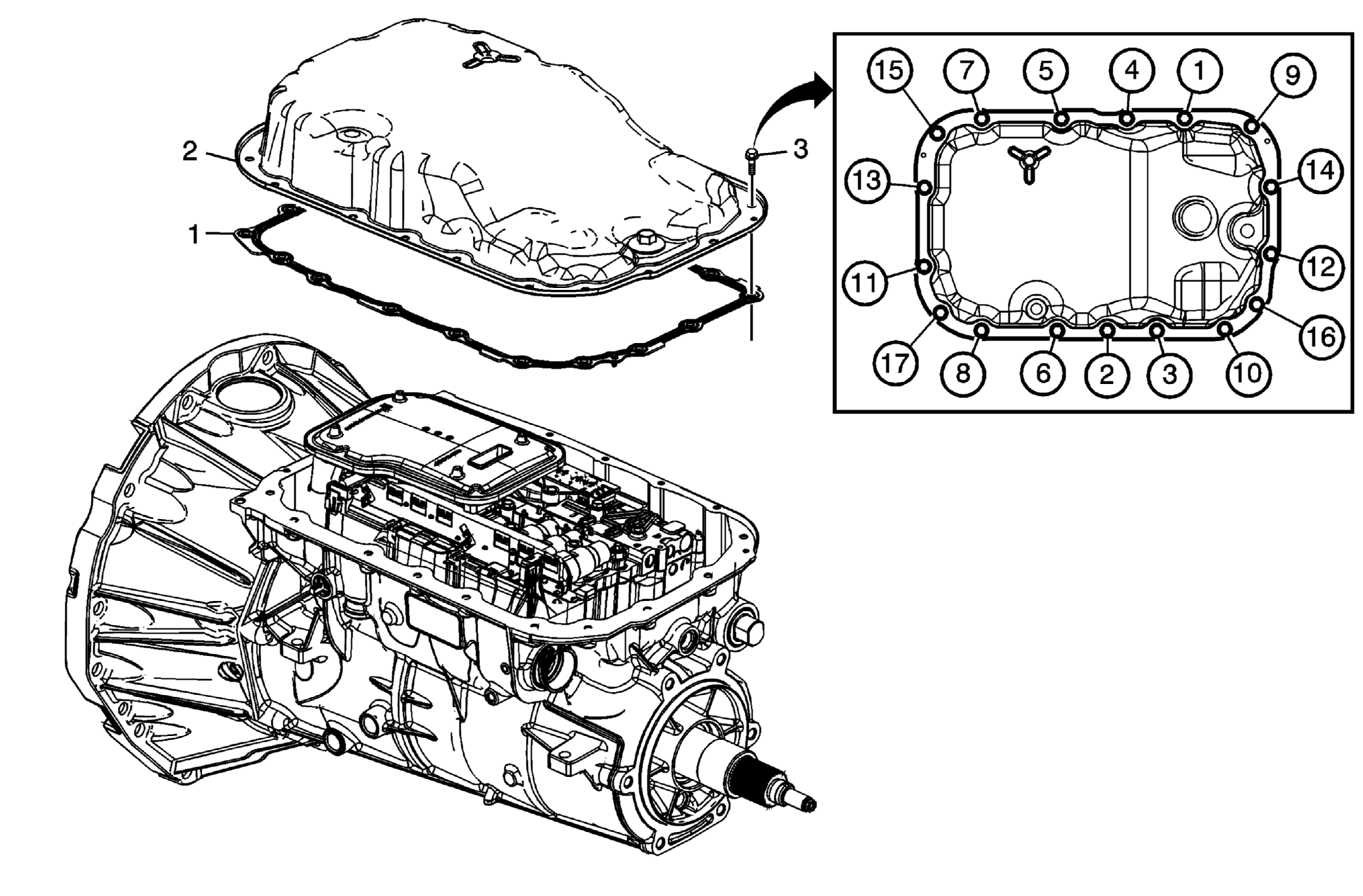

| Callout | Component Name |
|---|---|
| 1 | Fluid Pan Gasket Tip: The fluid pan gasket is reusable. Inspect the gasket to determine if it may be reused. If the gasket is stuck to the case or pan, it should be replaced. |
| 2 | Fluid Pan Assembly |
| 3 | Fluid Pan Bolts M6 x 20 (Qty: 17)
NOTE:
Refer to Fastener Notice
. Procedure:: Tighten in sequence shown. Tighten: 9 N.m (80 lb in) |
