Torque Converter Housing with Fluid Pump Removal

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

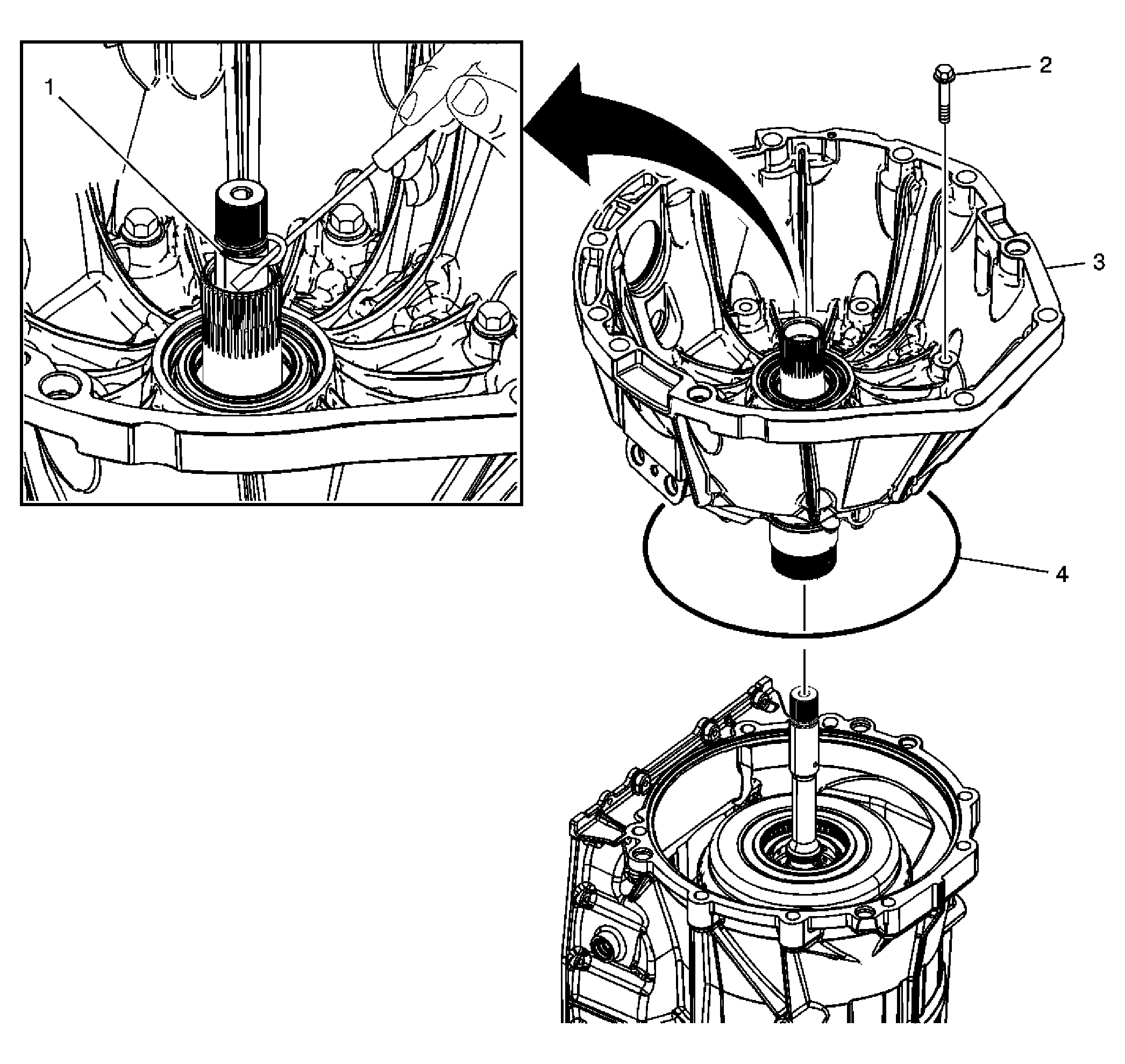

Fig 1: Identifying Torque Converter Housing With Fluid Pump Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: The valve body assembly must be removed prior to removing the torque converter (with fluid pump) housing assembly. Failure to ensure this will cause severe damage to both fluid pump seal assemblies. Also, the load of the valve body pushing on the seals, which in turn push on the pump, may prevent proper pump installation into the case. Refer to Control Valve Body Assembly Disassemble .
1	Turbine Shaft (O-ring) Seal
2	Bolt M8 x 1.25 x 50 (Qty: 8)
3	Torque Converter (With Fluid Pump) Housing Assembly
4	Fluid Pump Seal
