Torque Converter Housing with Fluid Pump Installation

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

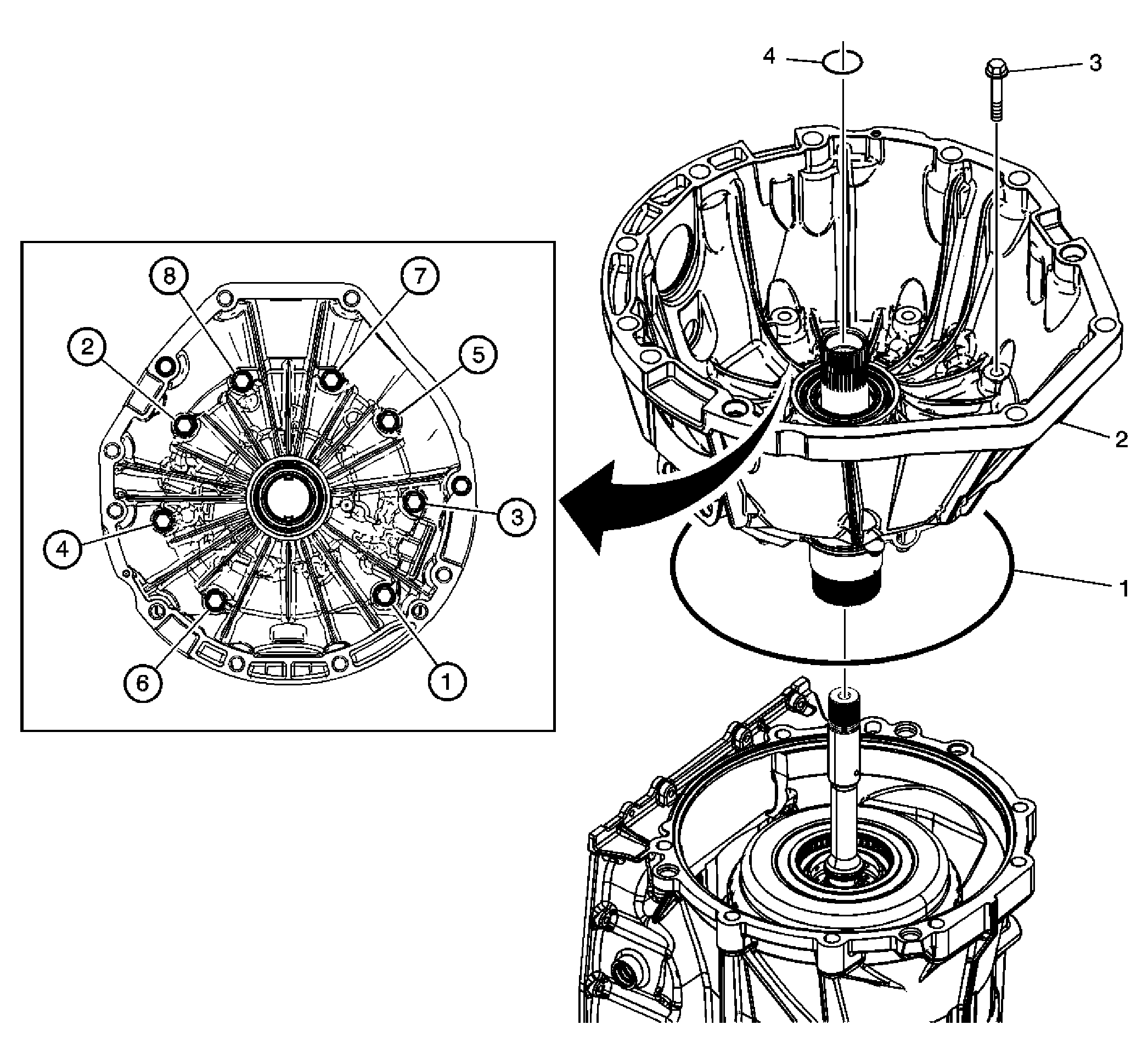

Fig 1: Identifying Torque Converter Housing With Fluid Pump Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	NEW Fluid Pump Seal
2	Torque Converter (with Fluid Pump) Housing Assembly NOTE: Ensure the turbine shaft (O-ring) seal is not installed prior to installing the torque converter housing assembly. The seal may become cut or damaged during installation of the torque converter housing assembly.
3	Bolts M8 x 1.25 x 50 (Qty: 8) NOTE: Refer to Fastener Notice . Procedure: Tighten in sequence shown. Tighten: 31 N.m (23 lb ft)
4	NEW Turbine Shaft (O-Ring) Seal
