Propeller Shaft Transmission Flange Installation (6L50)
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

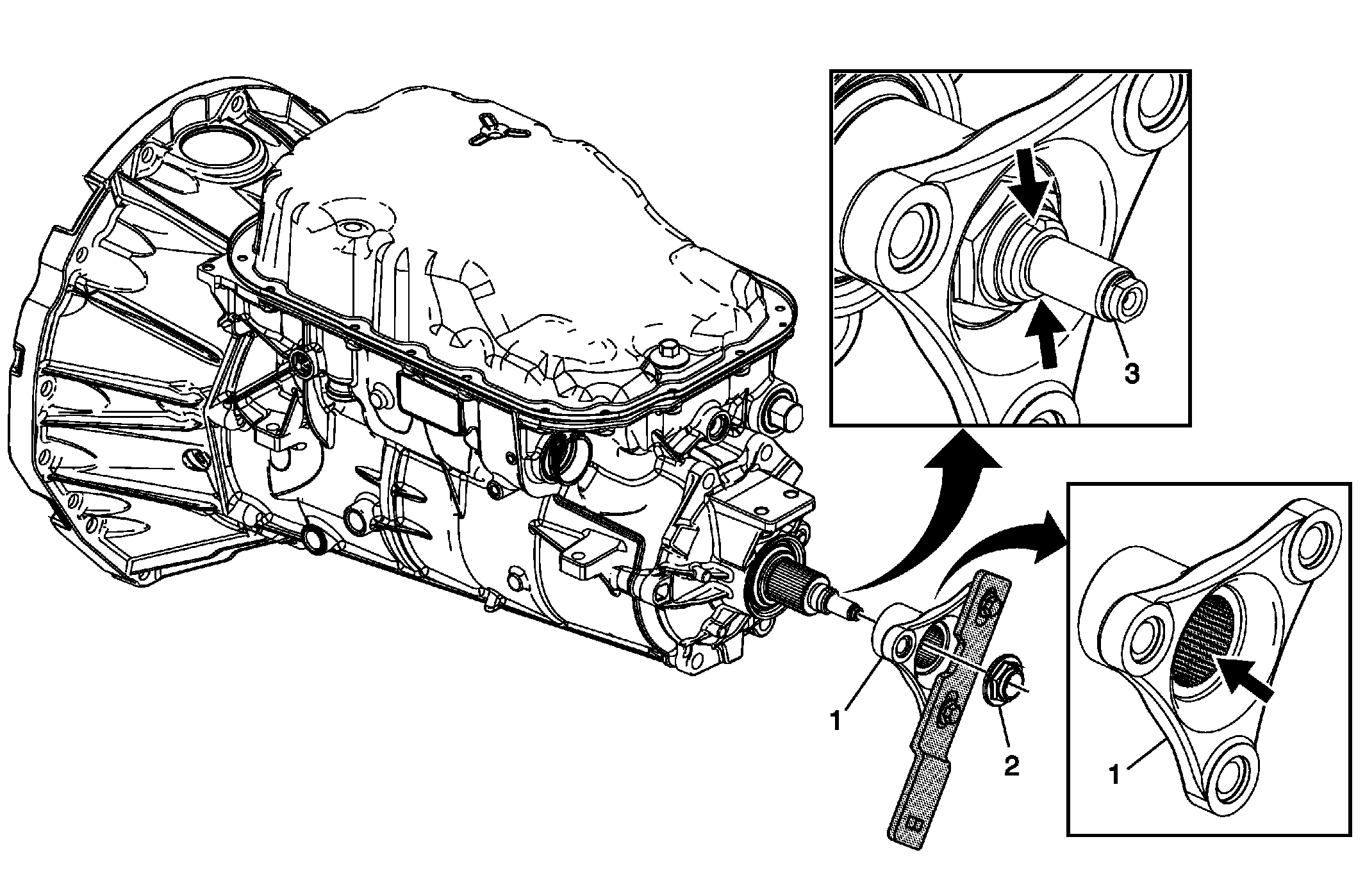

| Callout | Component Name |
|---|---|
| 1 | Prop Shaft Trans Flange |
| 2 | NEW Front Prop Shaft Flange Nut
NOTE:
Refer to Fastener Notice
.
Tighten: 105 N.m (77 lb ft). Special Tool: J 45012 Holding Fixture |
| 3 | Output Shaft
NOTE:
Stake the flange nut onto the output shaft. Use the two staking grooves on the shaft to locate the staking points. Failure to stake the flange nut may result in damage to the transmission.
|
