Output Shaft Seal Replacement (6L50)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

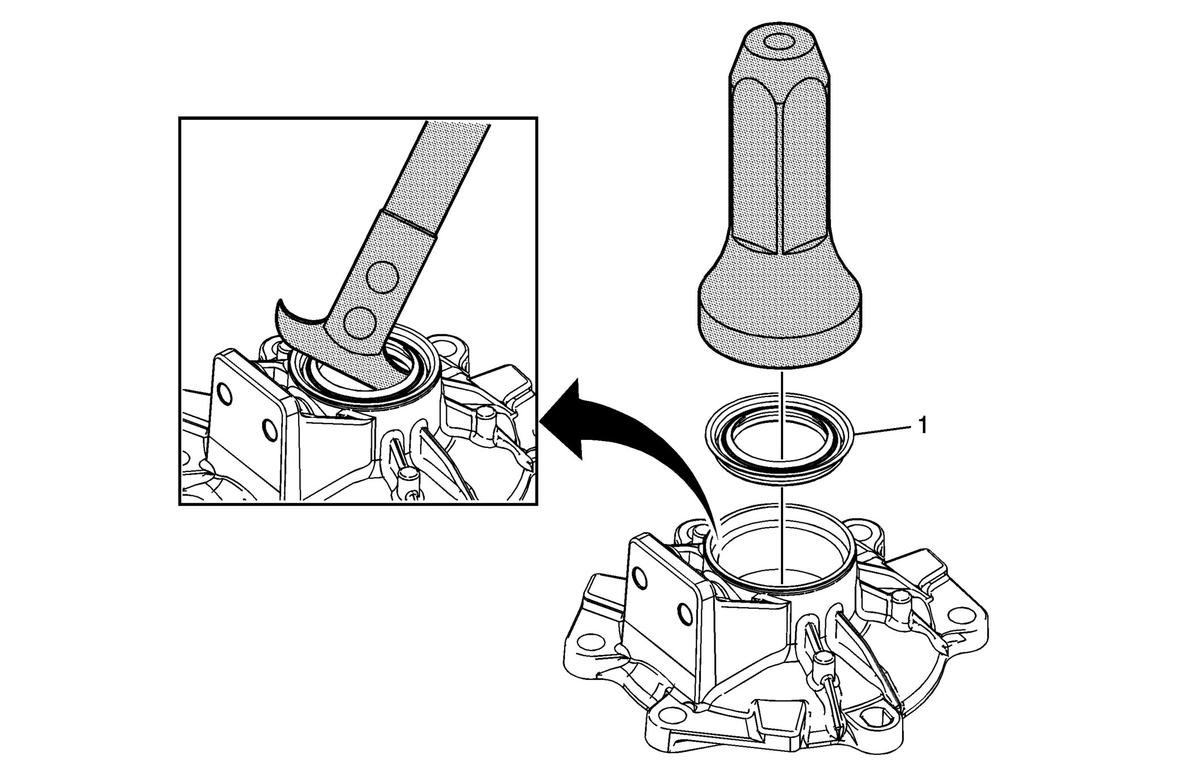

Fig 1: Case Extension Seal Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Output Shaft Seal Assembly Special Tools J 37212 Front Output Shaft Seal Installer. See Special Tools . J 45000 Seal Remover
