Output Shaft Bearing Replacement - Case Extension (6L50)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

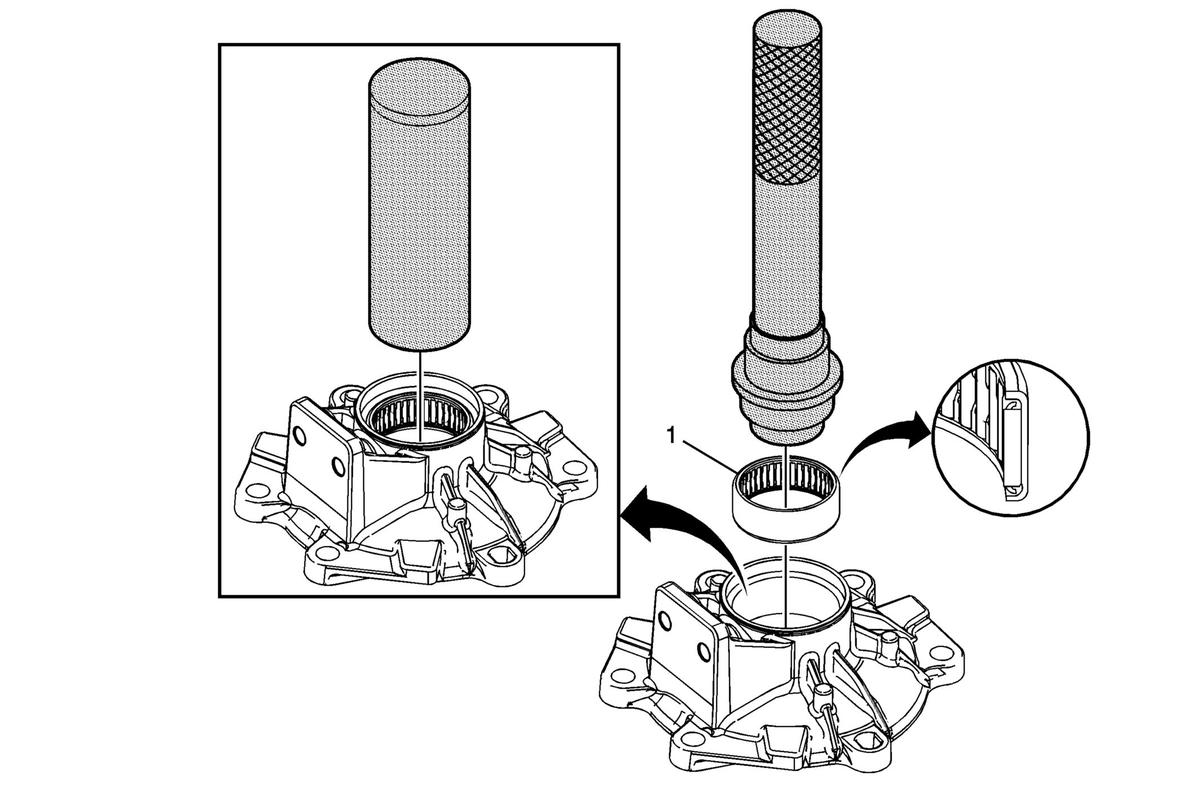

Fig 1: Output Shaft Bearing Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Output Shaft Bearing Assembly Tip: Use J 35512 to remove the bearing and DT-48222 and J 8092 to install the bearing. See Special Tools . Special Tools DT-48222 Bearing Installer. See Special Tools . J 8092 Driver Handle J 35512 Inner Pinion Bearing Installer. See Special Tools .
