Output Shaft Assembly

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

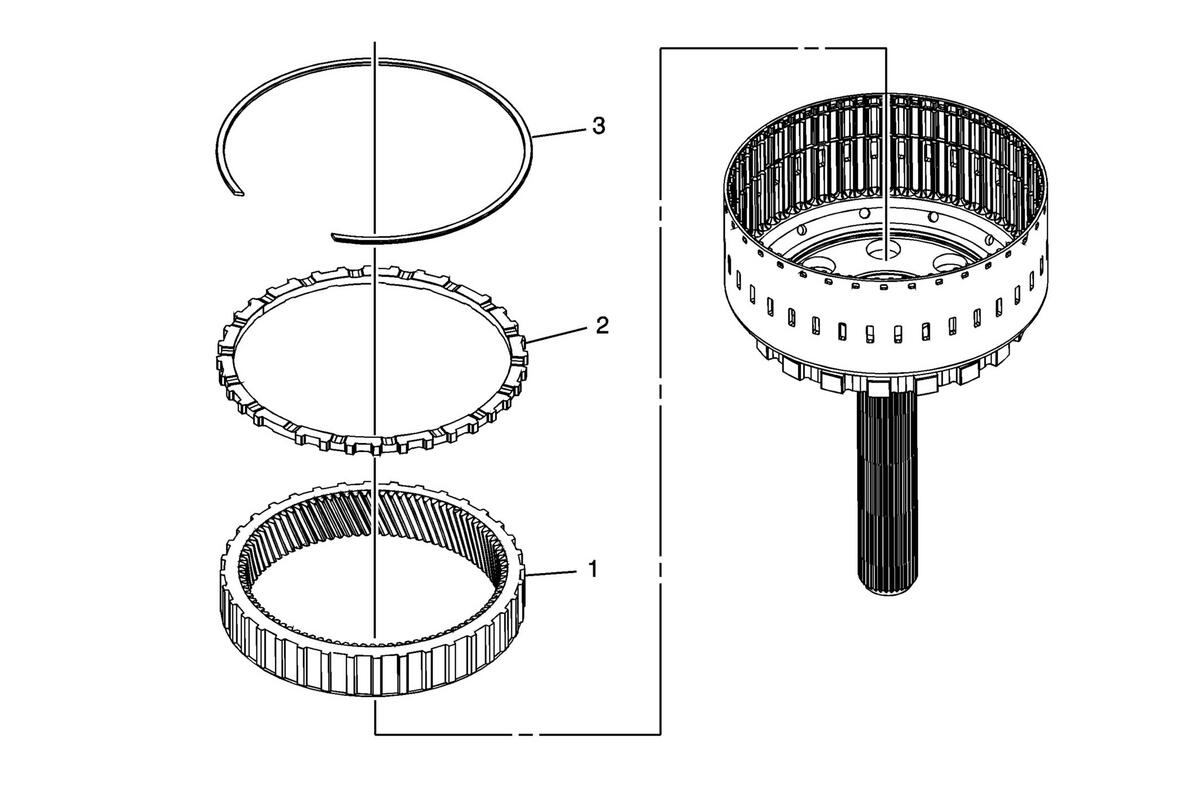

Fig 1: Output Shaft Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Output Carrier Internal Rear Gear NOTE: Install the gear chamfer side down. Failure to install the gear chamfer side down may result in transmission damage.
2	Output Gear Internal Gear Spacer
3	Output Carrier Internal Gear Retaining Ring Tip: Do not install the output carrier internal front gear and retaining ring yet. These components will be installed during assembly of the output carrier to the output shaft.
