Output Carrier to Output Shaft Assembly (6L50)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

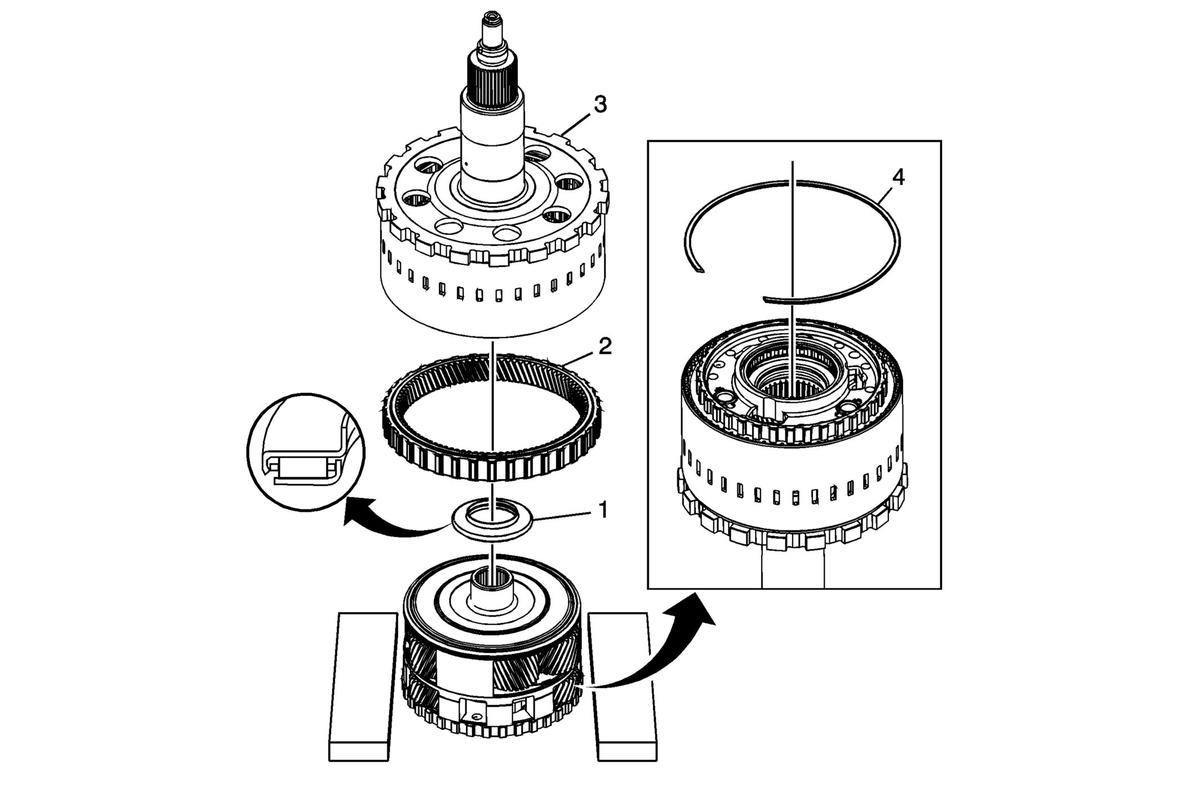

Fig 1: Output Carrier To Output Shaft Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Output Carrier Thrust Bearing Assembly
2	Output Carrier Internal Front Gear NOTE: Install the gear flat side down. Failure to install the gear flat side down may result in transmission damage. Tip: Use 2 small blocks next to the output carrier assembly in order to keep the internal front gear engaged with the front pinion gears.
3	Output Shaft Assembly
4	Output Carrier Internal Gear Retaining Ring Tip: Grasp the output shaft and carrier with both hands to turn over.
