Case Extension Assembly Removal (6L50)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

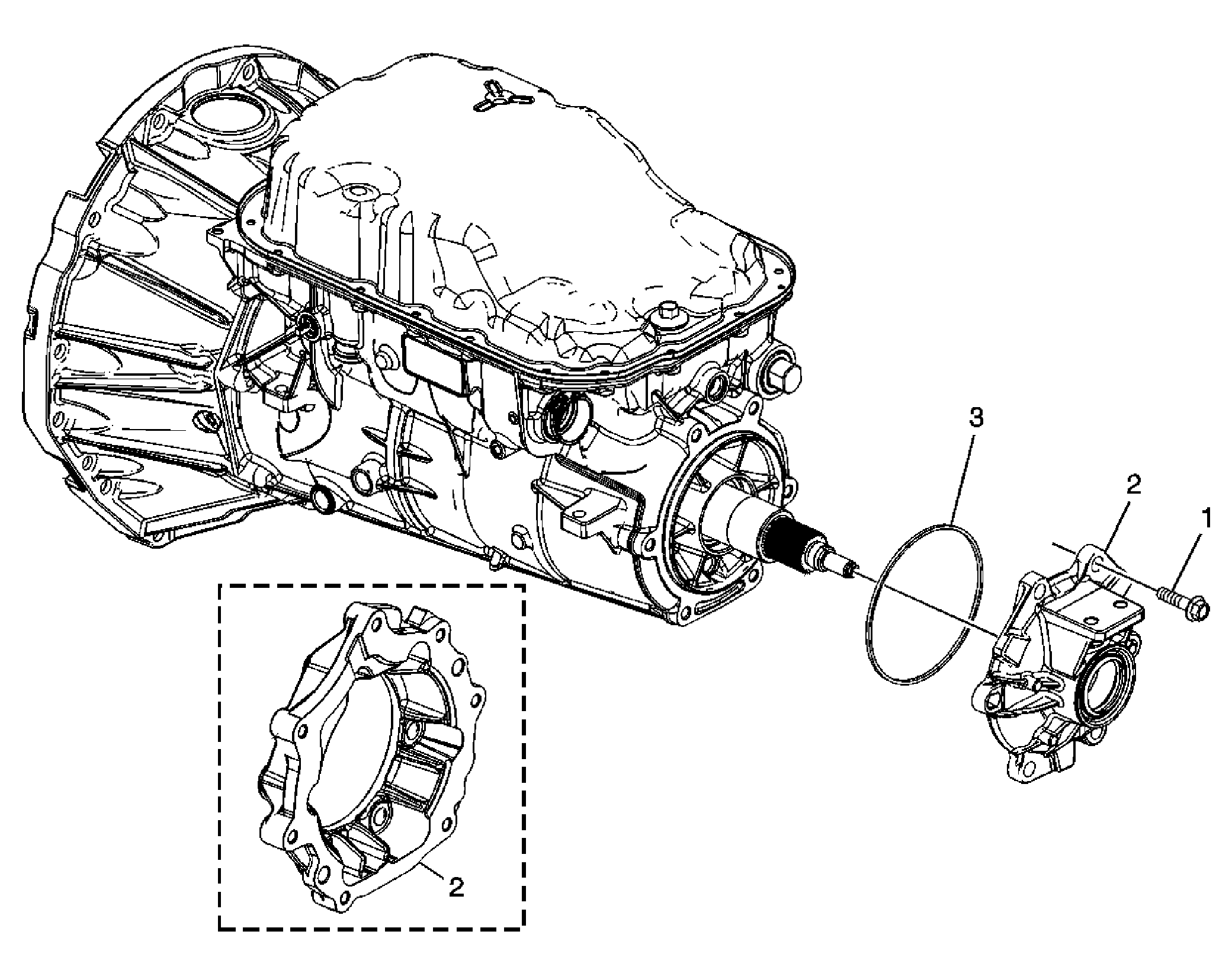

Fig 1: Case Extension Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolt M10 x 40 (Qty: 6)
2	Case Extension Tip: Also available as AWD option.
3	Case Extension Seal
