WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

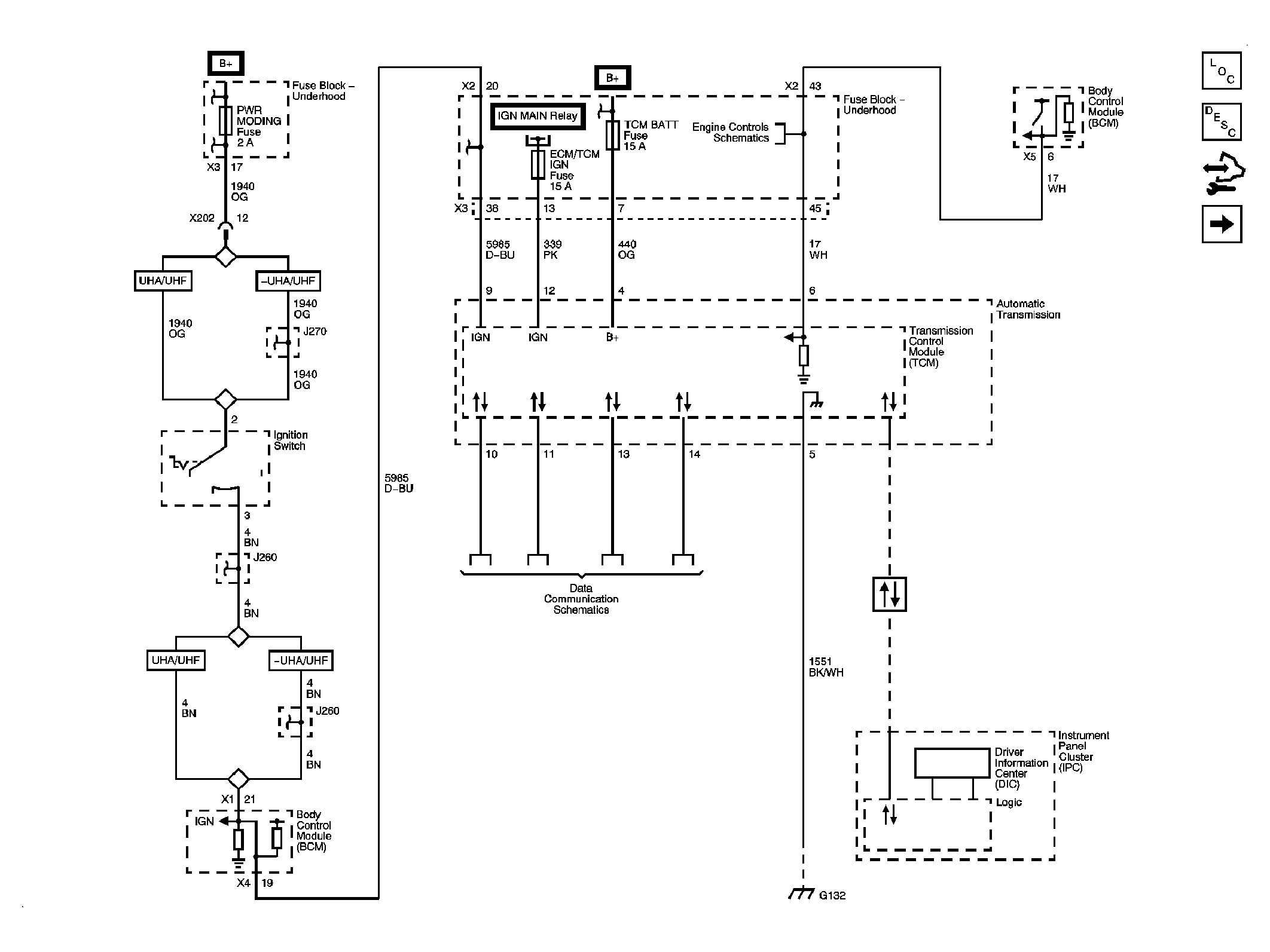

Fig 1: Module Power, Ground, Data Communications, MIL and Brake Applied Signal Schematic
Courtesy of GENERAL MOTORS CORP.

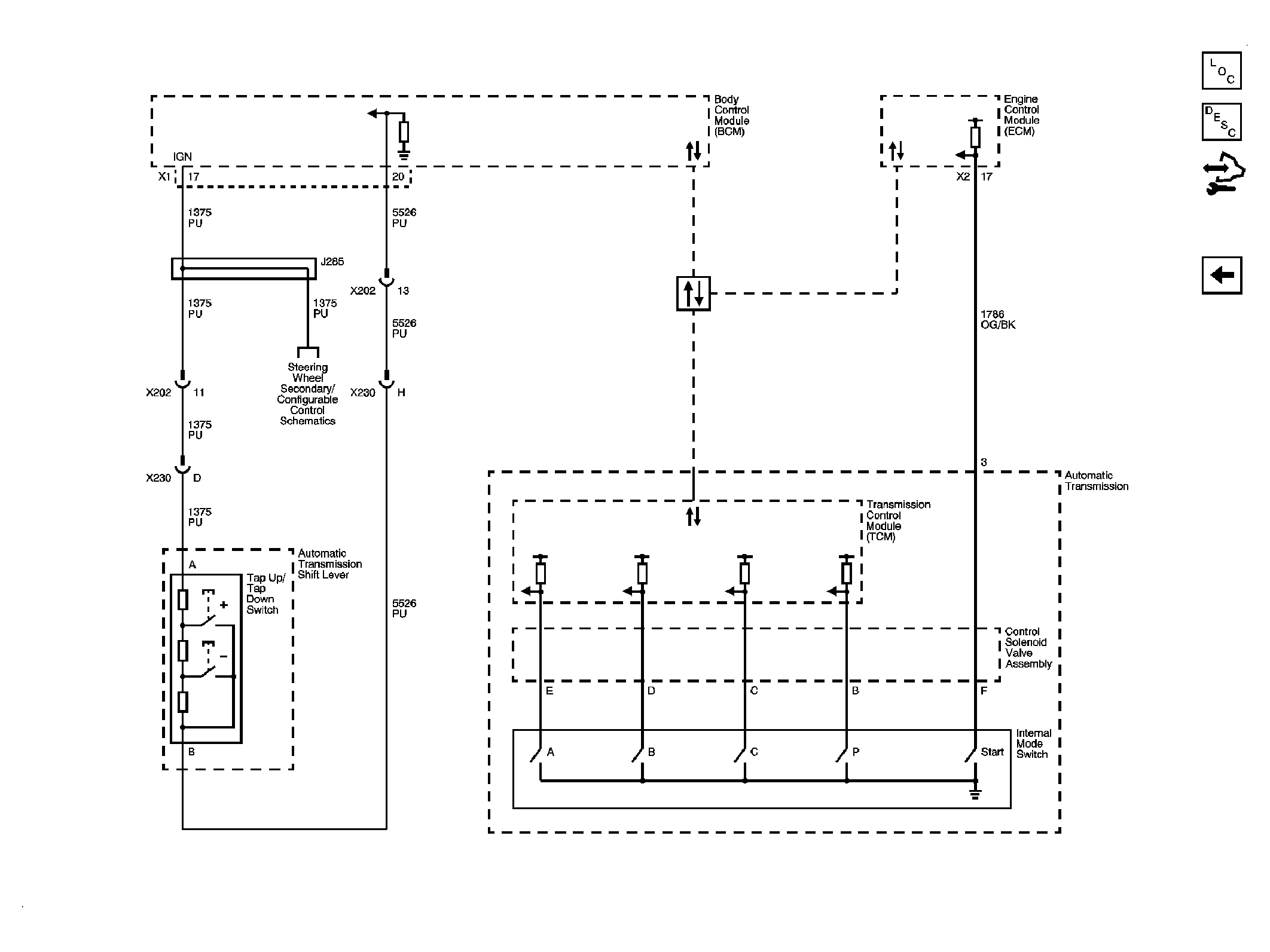

Fig 2: Pressure Controls and Shift Controls Schematic
