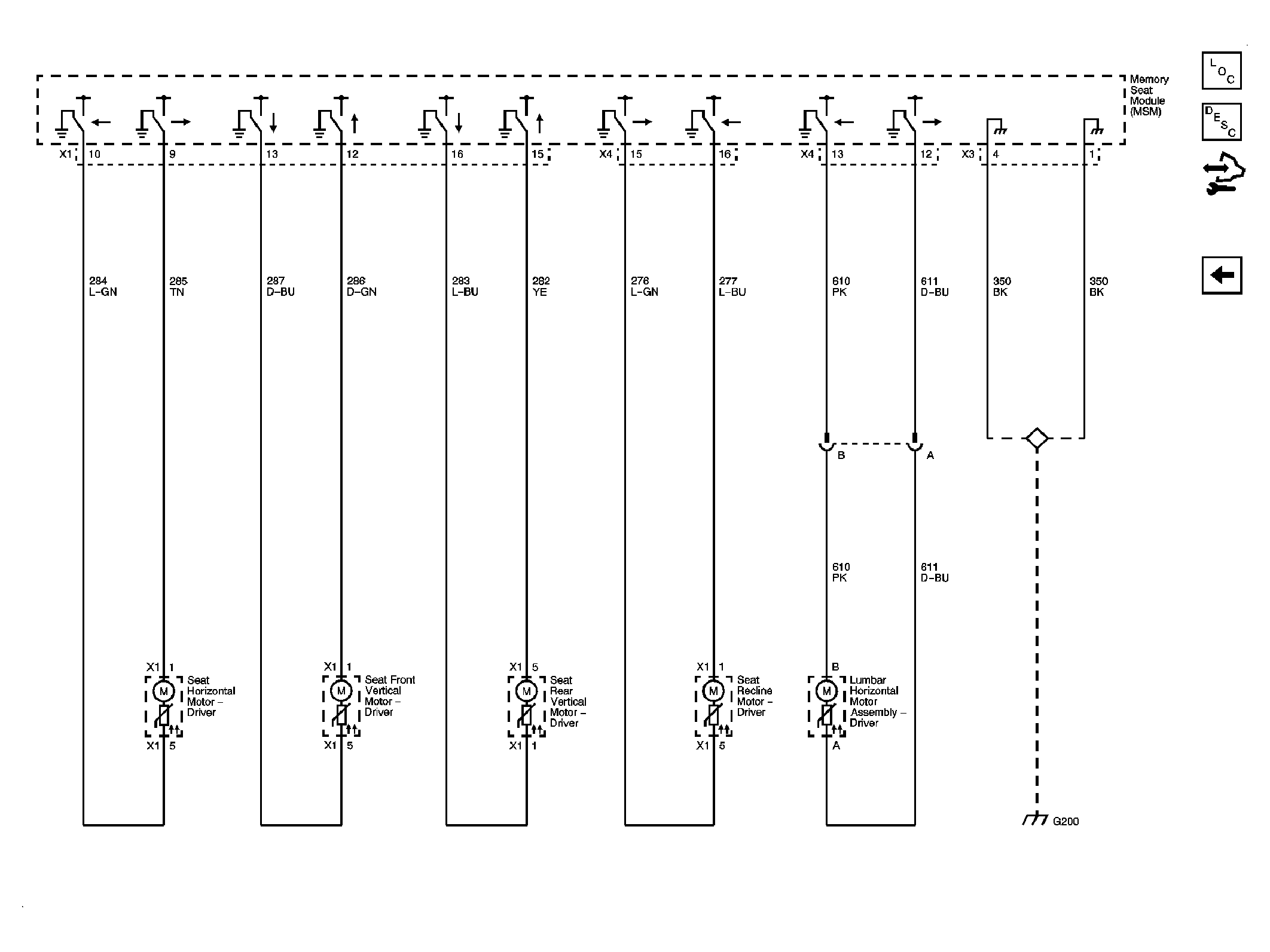

Fig 1: Driver Seat (LHD -A45) Schematic
Courtesy of GENERAL MOTORS CORP.

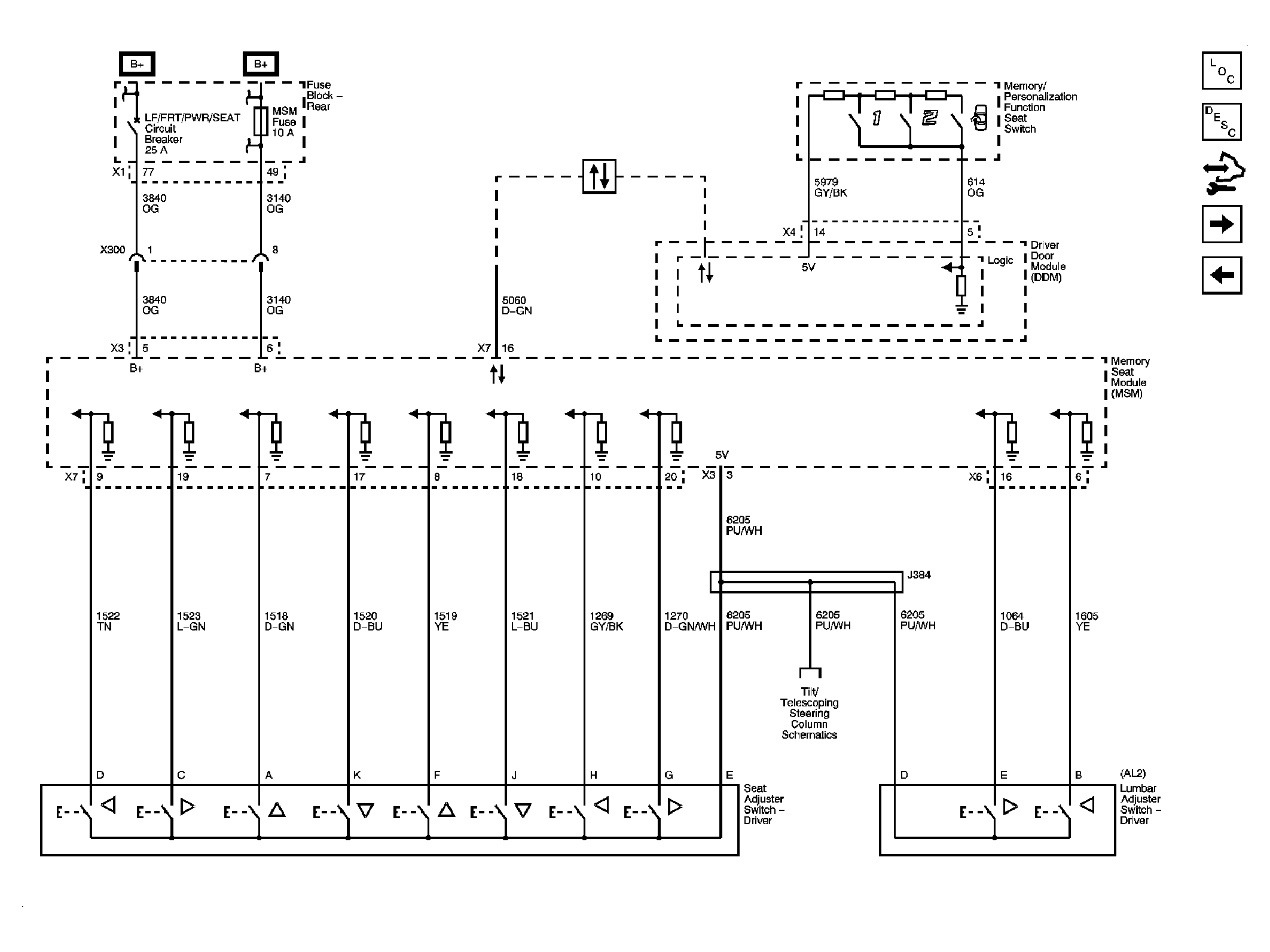

Fig 2: Driver Seat A45 Switches Schematic
Courtesy of GENERAL MOTORS CORP.

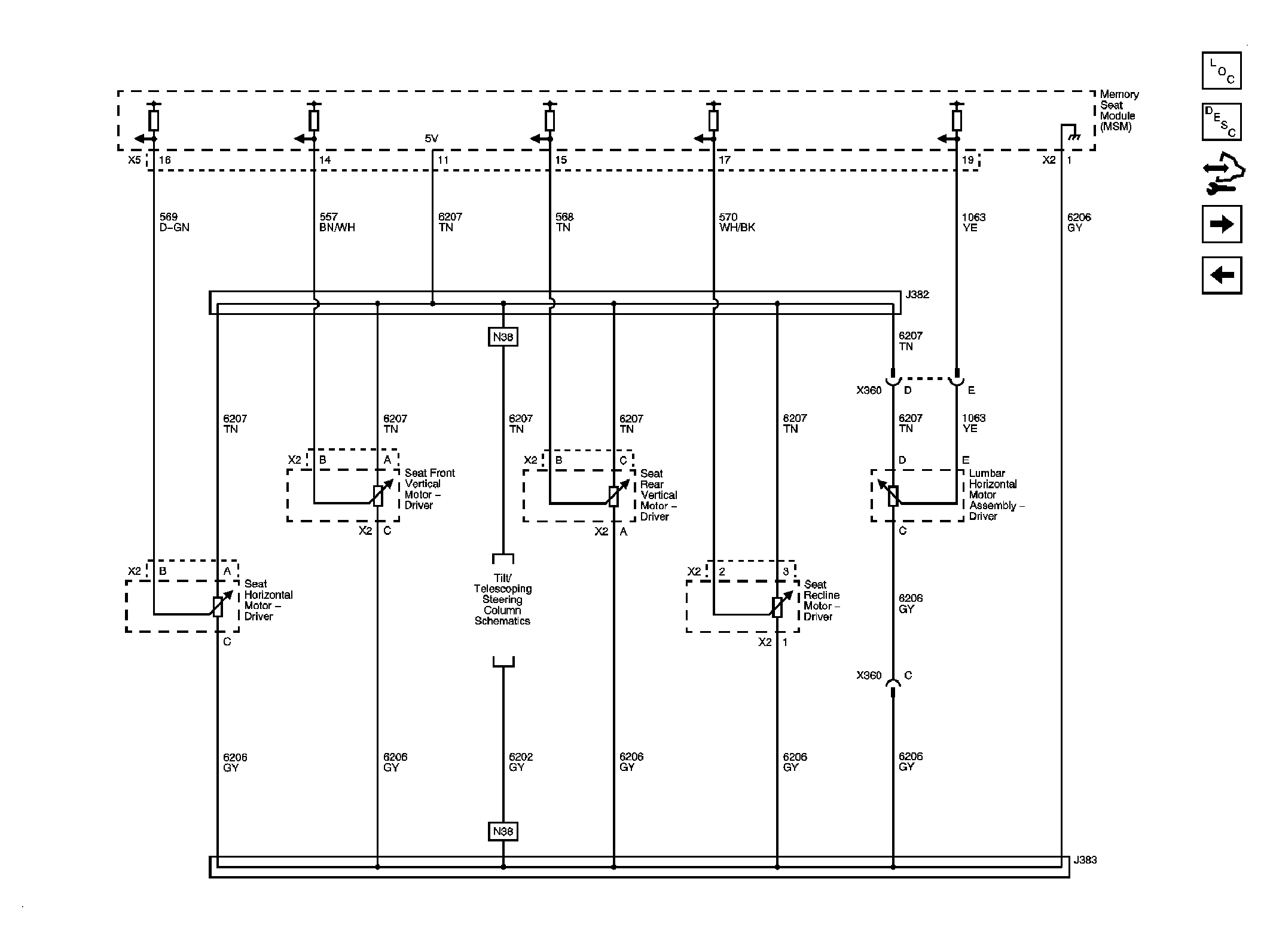

Fig 3: Driver Seat A45 Motor Position Sensors Schematic
