Instrument Cluster Schematics

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Power, Ground and Odometer - Schematic

Courtesy of GENERAL MOTORS CORP.

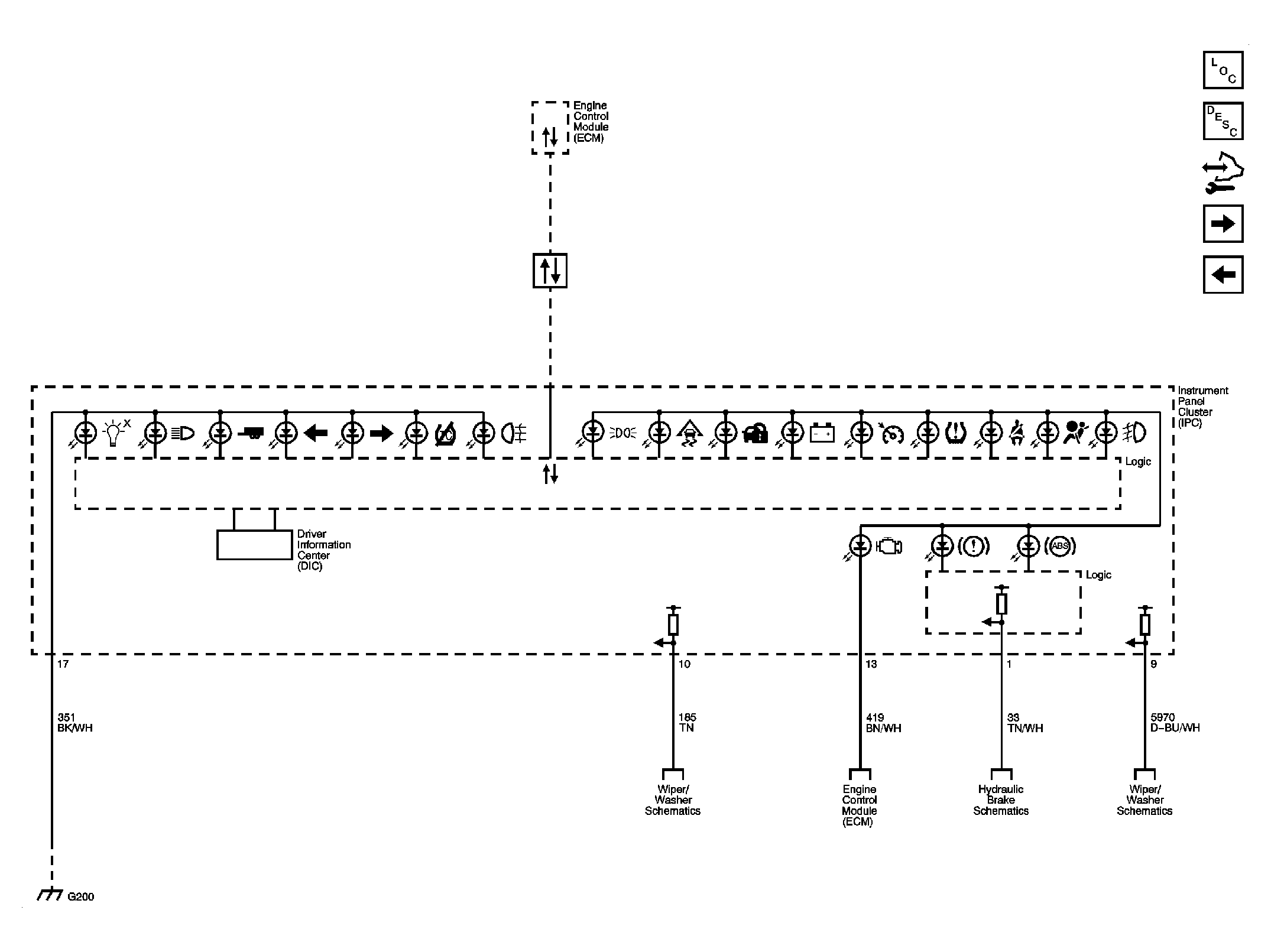

Fig 2: Indicators - Schematic

Courtesy of GENERAL MOTORS CORP.

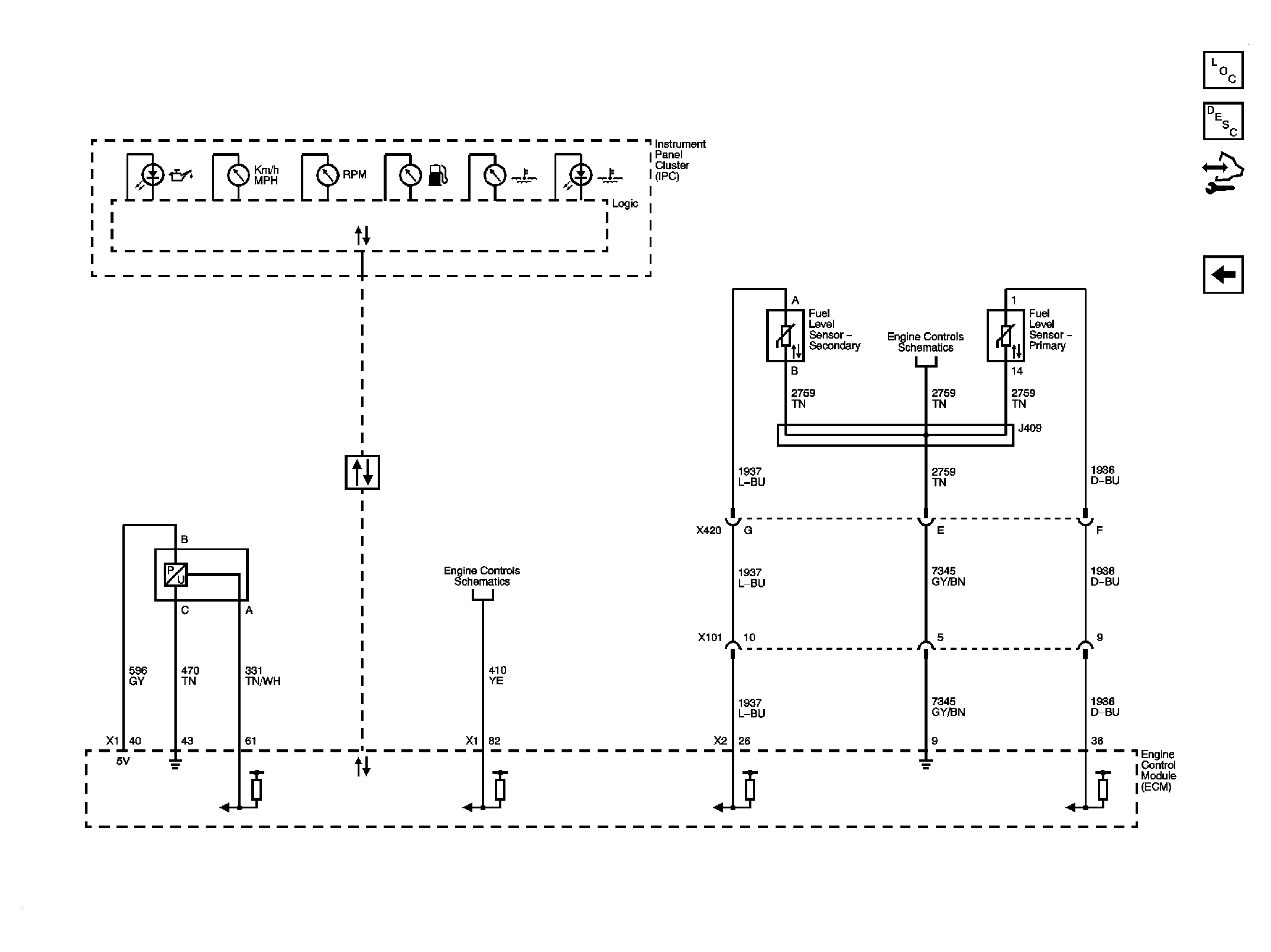

Fig 3: Gages - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: DIC - Schematic

Courtesy of GENERAL MOTORS CORP.
