Steering Column Shroud Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

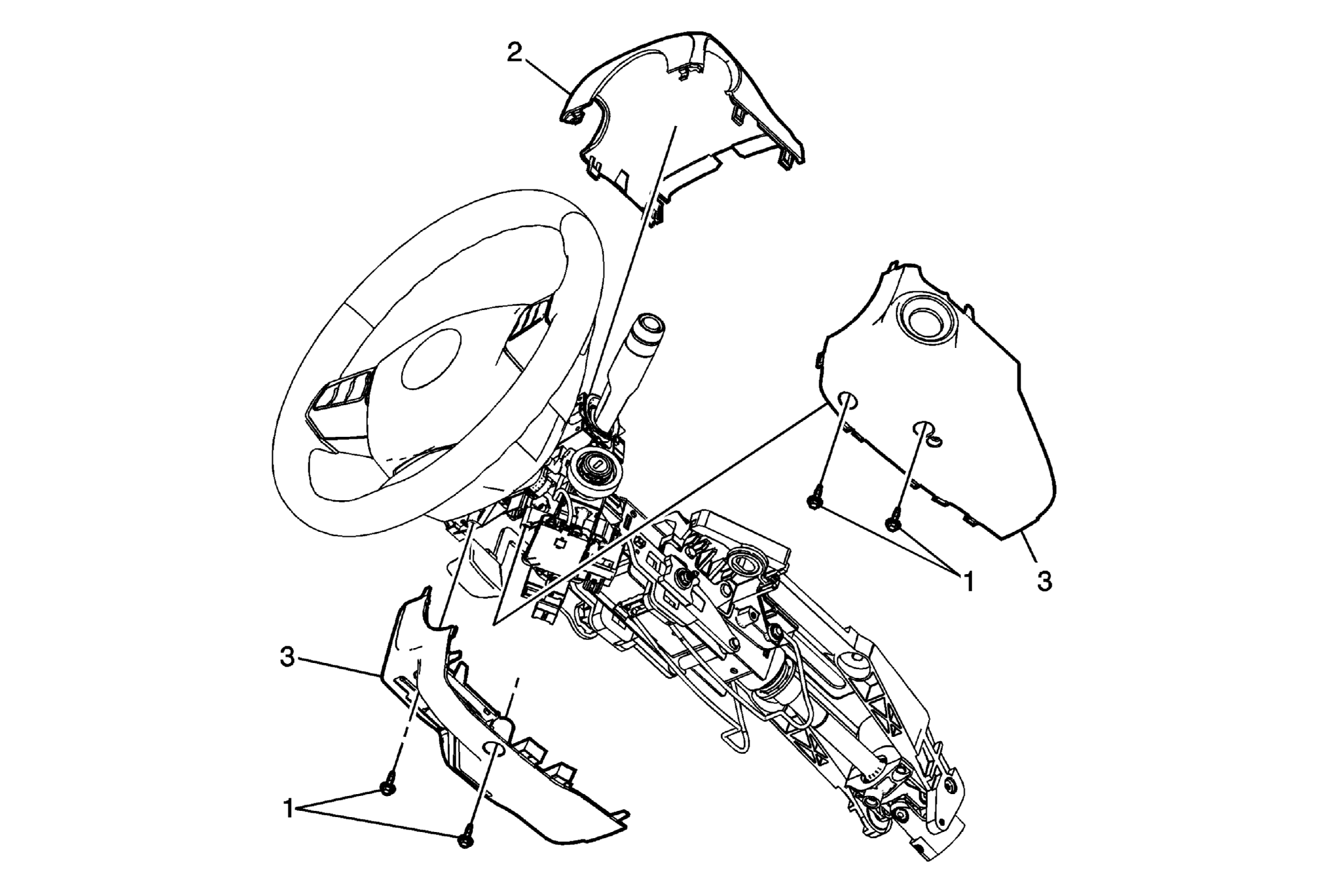

| Callout | Component Name |
|---|---|
| 1 | Steering Column Shroud Bolt (Qty: 4)
NOTE:
Refer to Fastener Notice
. Tip: When removing or replacing one side of the steering column shroud, remove all four steering column shroud bolts to allow for the slack needed to separate the pieces. Tighten: 2.5 N.m (22 lb in) |
| 2 | Steering Column Upper Shroud Tip: Remove the steering column upper shroud with the steering column housing cover attached. Transfer it as needed. |
| 3 | Steering Column Shroud (Qty: 2) Tip: Replace each piece of the steering column shroud as needed. |
