High/Low Planetary Carrier Assembly
WARNING: This page is about a different variant/trim than selected.

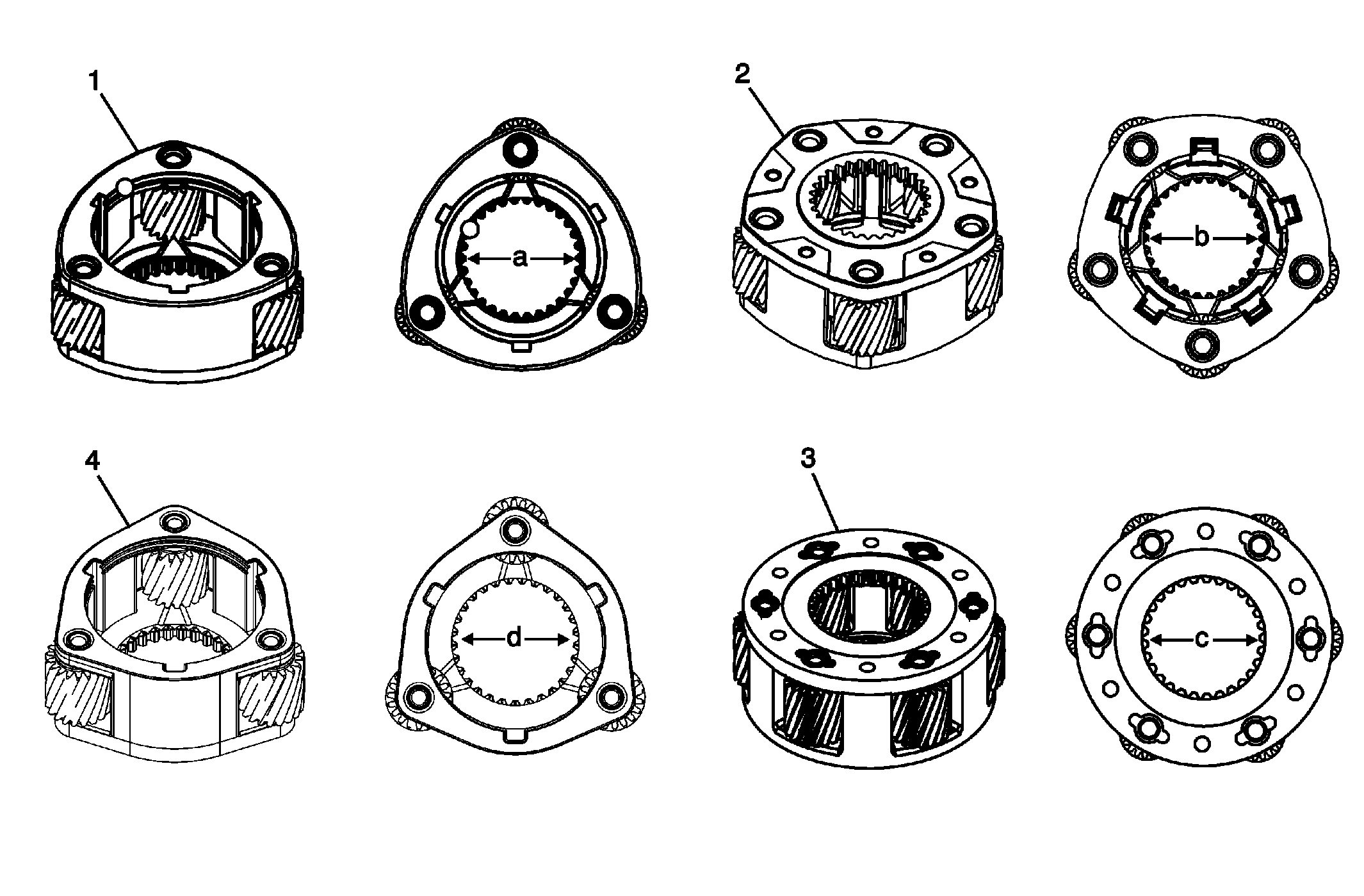

The first design light duty 3-pinion (1) and heavy duty 5-pinion (2) high/low planetary carriers can be identified as having a 30 tooth design with an inside diameter (a or b) of 61.3 mm (2.41 in).
The second design light duty 3-pinion (4) and heavy duty 6-pinion (3) high/low planetary carriers can be identified as having a 29 tooth design with an inside diameter (c or d) of 60.2 mm (2.37 in).
