Fuel Tank Heat Shield Replacement

Fuel Tank Heat Shield Replacement

Removal Procedure

1. Support the fuel tank with a suitable jack.

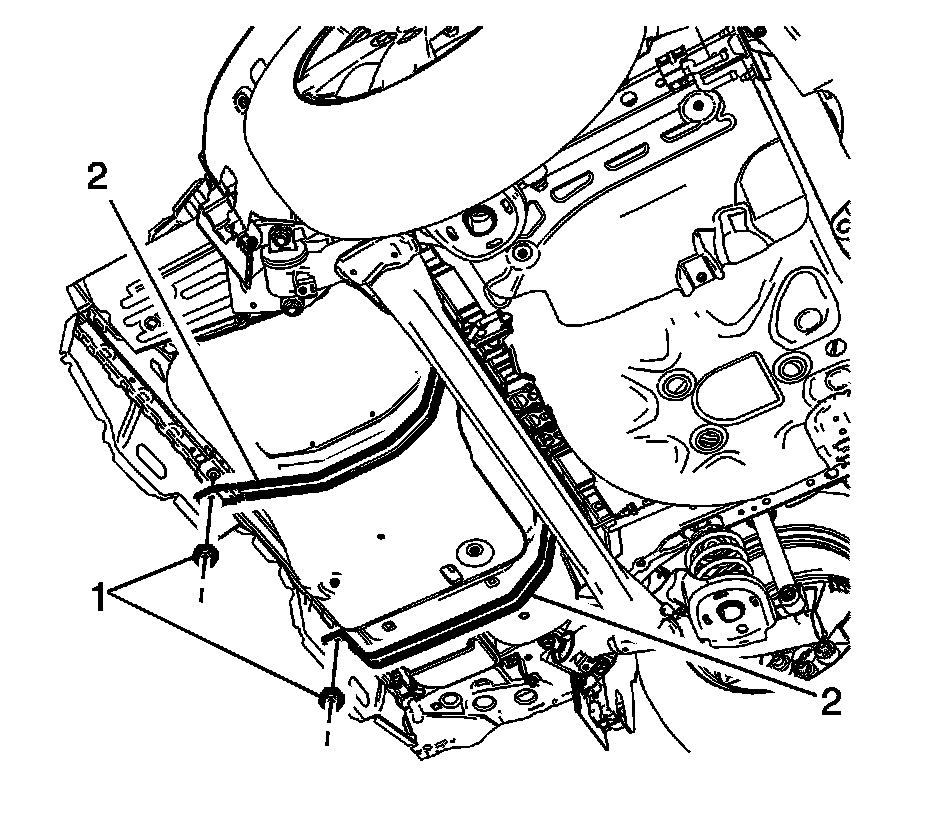

2. Remove the fuel tank strap fasteners (1) and lower the fuel tank straps (2).

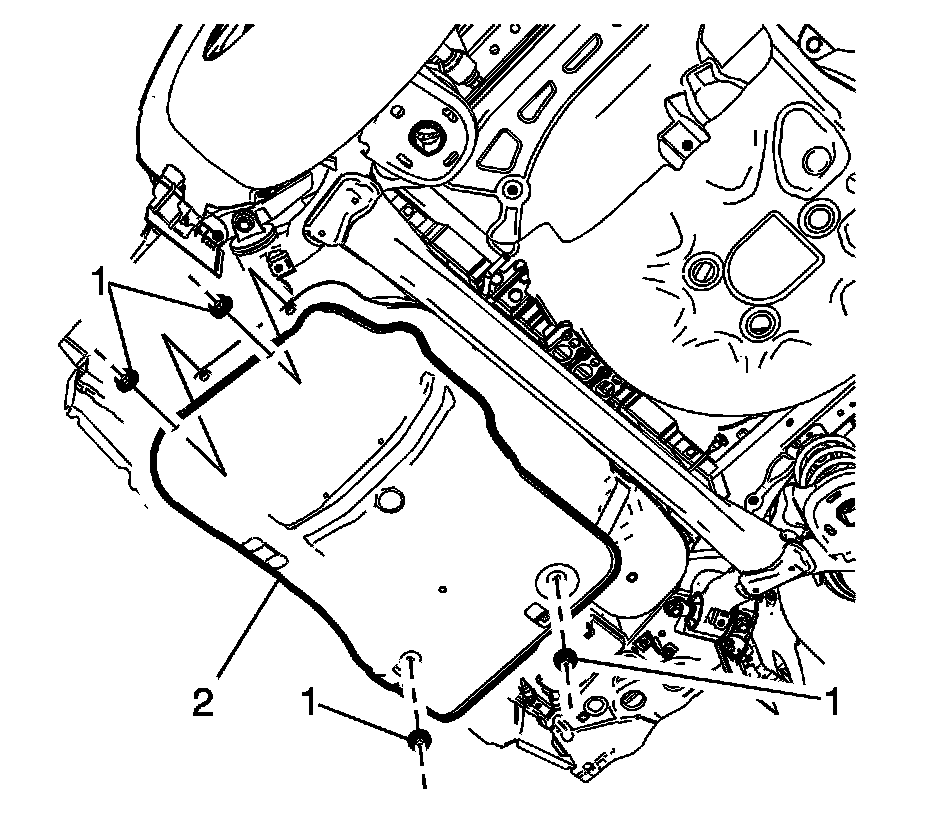

3. Remove the fuel tank heat shield fasteners (1) and remove the fuel tank heat shield (2).

Installation Procedure





Caution:
Refer to Fastener Caution Fastener Caution.

1. Install the fuel tank heat shield (2) and tighten the fasteners (1) to 10 Nm (89 lb in).





2. Install the fuel tank straps (2) and tighten the fasteners (1) to 22 Nm (16 lb ft).
