Home >> Chevrolet >> 2012 >> Sonic L4-1.8L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Diagrams >> Electrical Diagrams

Electrical Diagrams




Heated/Cooled Seat Schematics

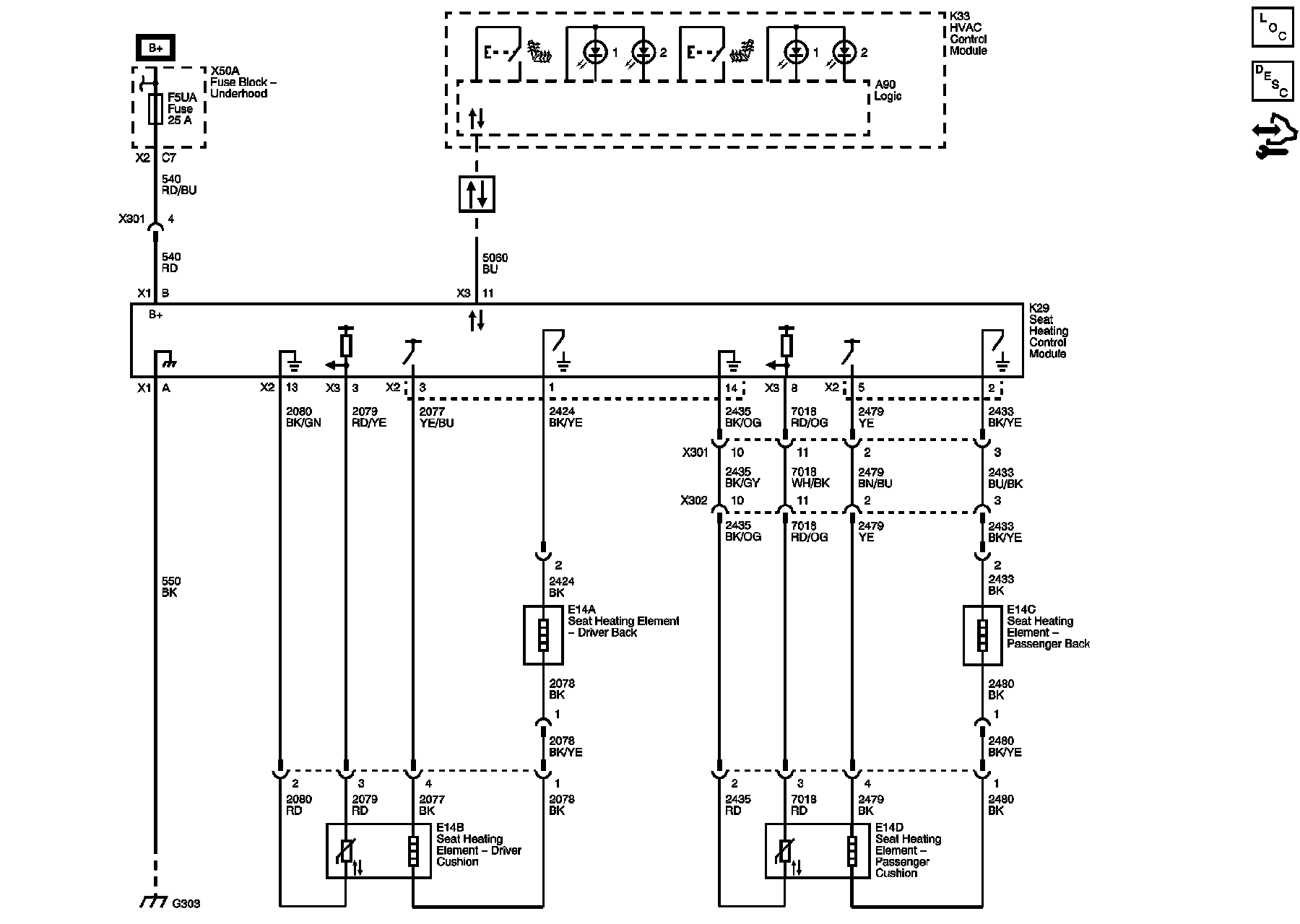

Heated Seats (KA1)





Master Electrical Component List
Heated Seats Description and Operation
Control Module References
F1UA, F2UA, F3UA, F4UA, F5UA, F6UA, F7UA, F8UA, and F32DA Fuses
Data Communication Schematics
G303 and G304
