Speaker - Left Front Tweeter




Passenger Compartment/Roof Component Views

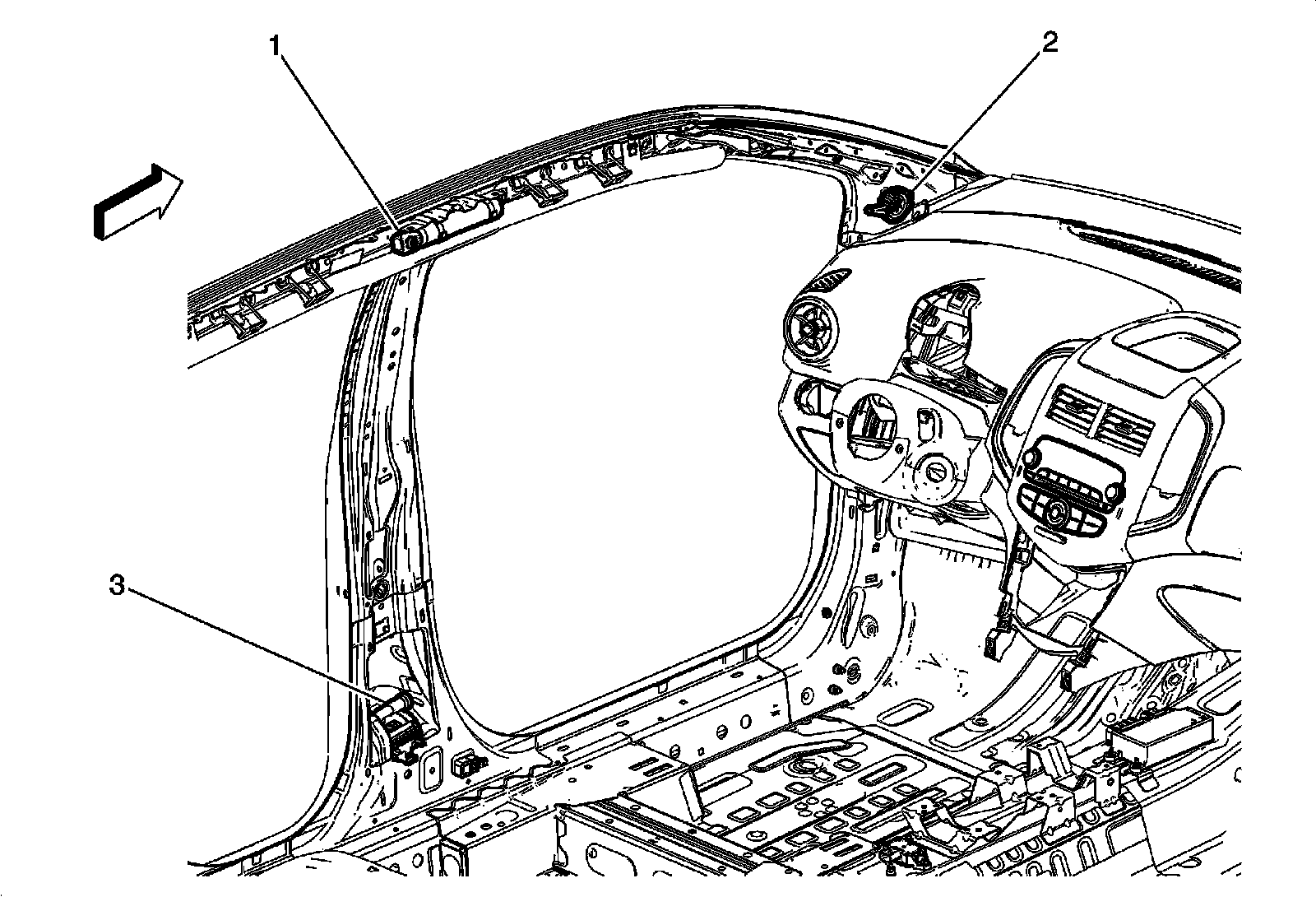

Left Front of Passenger Compartment Components





1 - F105L Roof Rail Air Bag - Left

2 - P19H Speaker - Left Front Tweeter

3 - F112D Seat Belt Retractor Pretensioner - Driver
