Rear Side Door Replacement

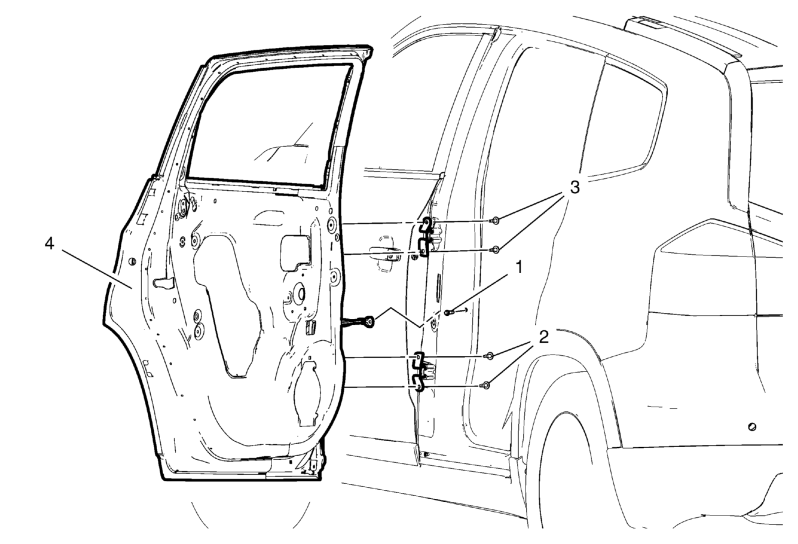

Fig 1: Rear Side Door
GM2501281Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Replacement

Callout Component Name
Preliminary Procedure
Remove rear side door trim. Refer to Rear Side Door Trim Replacement .
1 Rear Side Door Check Link Bolt
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .
  2. Disconnect the door electrical connector.
  3. Support the door before removing the hinge bolts.
  4. With the aid of an assistant, remove the door.

Tighten
25 N.m (18 lb ft)
2 Rear Side Door Hinge Bolt (Qty: 2)
Tighten
25 N.m (18 lb ft)
3 Rear Side Door Hinge Bolt (Qty: 2)
Tighten
25 N.m (18 lb ft)
4 Rear Side Door

Procedure

  1. Transfer all of the internal components.
  2. Adjust the rear side door as needed. Refer to Rear Side Door Adjustment .
