Liftgate Weatherstrip Replacement

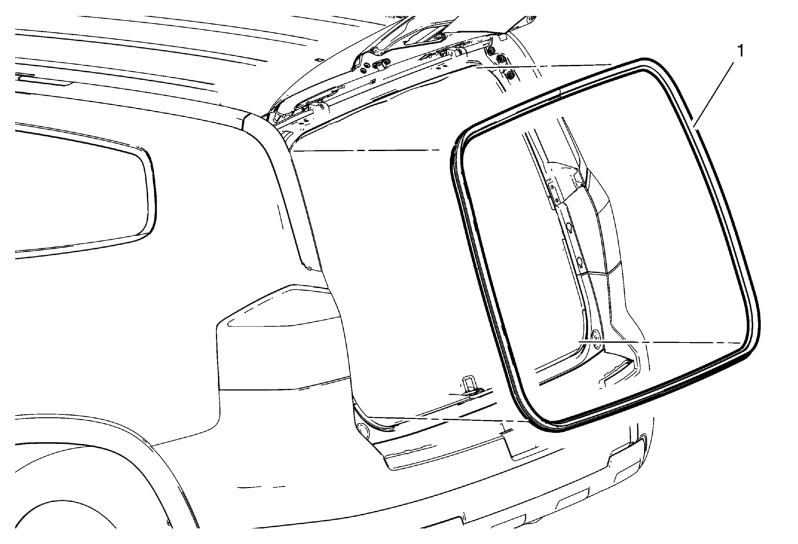

Fig 1: Liftgate Weatherstrip

GM2449885

Courtesy of GENERAL MOTORS COMPANY

Liftgate Weatherstrip Replacement

Callout

Component Name

1

Liftgate Weatherstrip

Procedure

Start at the upper corner of the trunk opening and pull the weatherstrip away from the trunk opening flange.
Position the weatherstrip in the upper corner of the trunk opening.
Working downward along the edge, install the weatherstrip on the trunk opening flange ensuring that the carrier is fully seated in the corners.
Using a rubber mallet, ensure that the weatherstrip is seated on the entire trunk opening flange.
