Steering Wheel Replacement

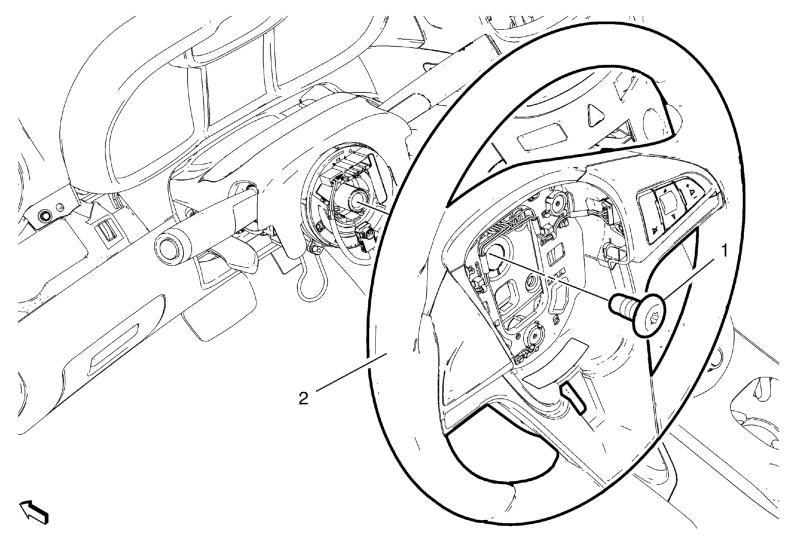

Fig 1: Steering Wheel & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Bolt CAUTION: Refer to Fastener Caution . Procedure Apply thread lock compound to bolt. Refer to Adhesives, Fluids, Lubricants, and Sealers . Tighten 30 N.m (22 lb ft)
2	Steering Wheel Procedure Disconnect any electrical connectors as needed. Remove the steering wheel carefully.

Callout

Component Name

Preliminary Procedures
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .

Steering Wheel Bolt

CAUTION:

Procedure
Apply thread lock compound to bolt. Refer to Adhesives, Fluids, Lubricants, and Sealers .
Tighten
30 N.m (22 lb ft)

Steering Wheel

Procedure
