Steering Column Upper Trim Cover Replacement

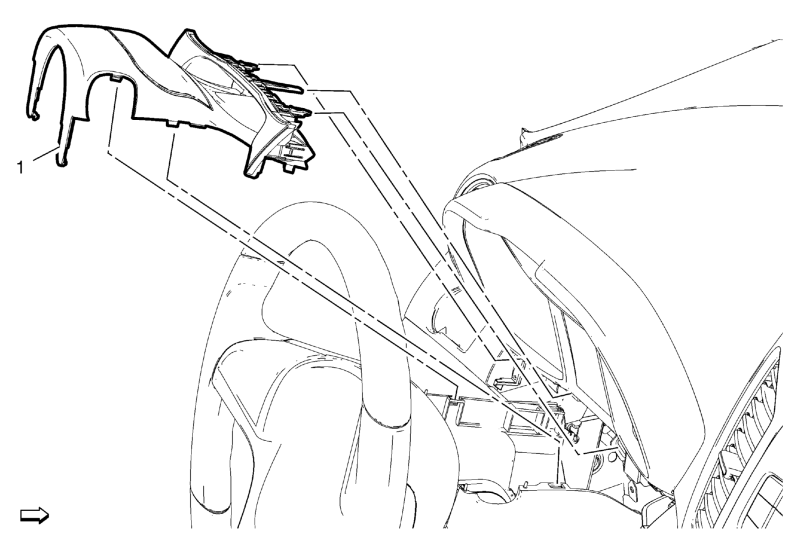

Fig 1: Steering Column Upper Trim Cover
GM2503245Courtesy of GENERAL MOTORS COMPANY
Steering Column Upper Trim Cover Replacement

Callout Component Name
1 Steering Column Upper Trim Cover

Procedure

  1. Unclip the steering column upper trim cover from the steering column lower trim cover.
  2. Disengage the steering column upper trim cover flexible part from instrument cluster.
  3. Carefully pull plastic part rearward from instrument cluster.
