Front Side Door Window Regulator Replacement

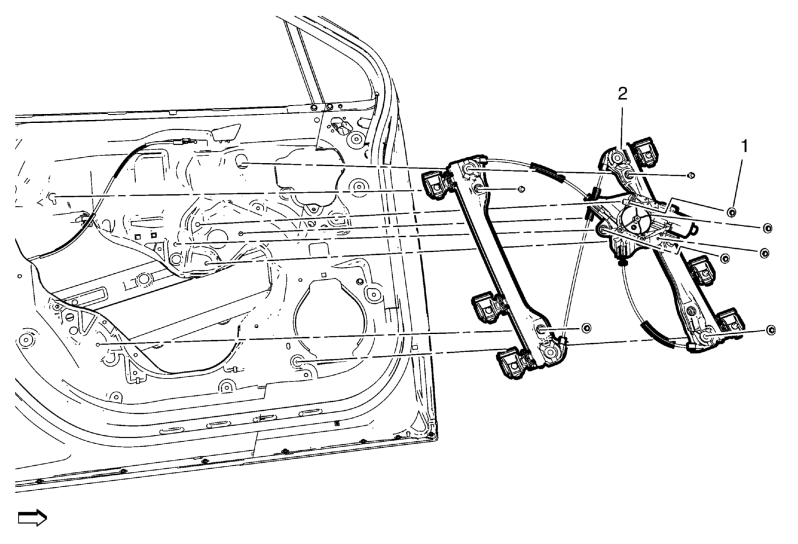

Fig 1: Front Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Regulator Replacement

Callout	Component Name
Preliminary Procedure  Remove the front side door window. Refer to Front Side Door Window Replacement .
1	Front Side Door Window Regulator Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Front Side Door Window Regulator
