Dome Lamp Bezel Replacement - Front

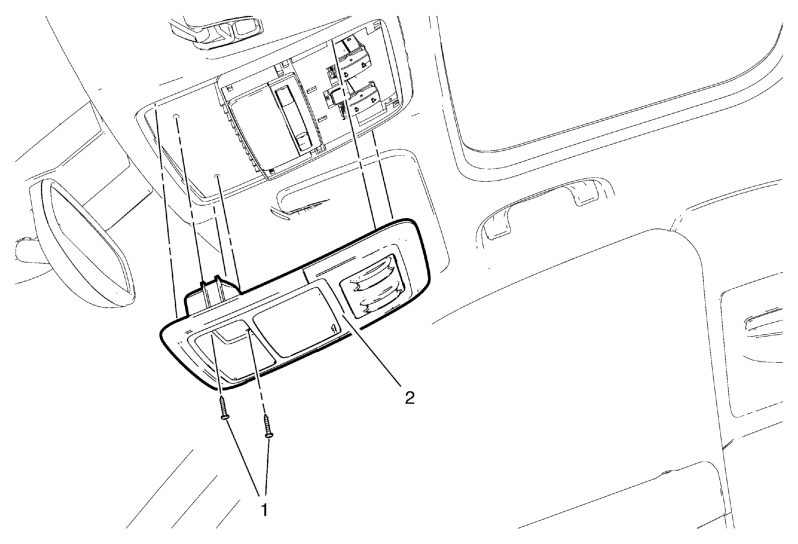

Fig 1: Dome Lamp Bezel - Front
GM2506332Courtesy of GENERAL MOTORS COMPANY
Dome Lamp Bezel Replacement - Front

Callout Component Name
1 Dome Lamp Bezel Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Dome Lamp Bezel- Front

Procedure

  1. Unclip dome lamp bezel (Qty: 4)
  2. Disconnect electrical connectors.
