Instrument Cluster Replacement

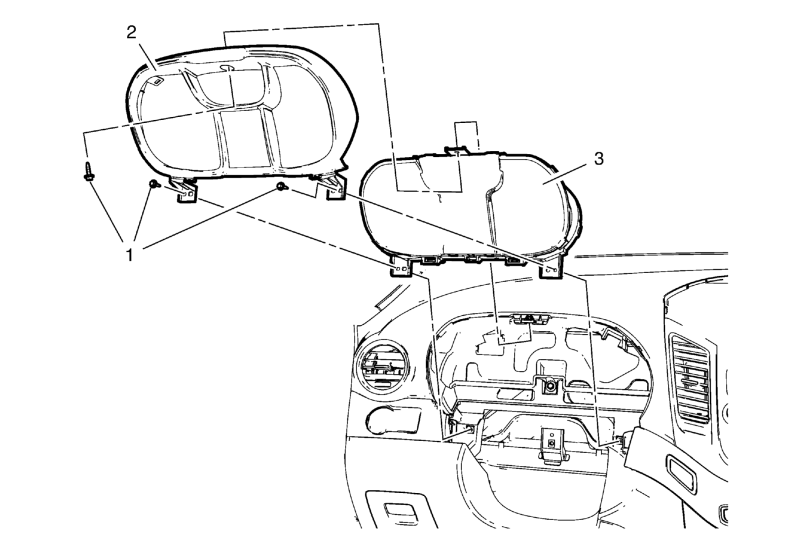

Fig 1: Instrument Cluster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Prepare instrument cluster for replacement. Refer to Control Module References . Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without Start/Stop System) . Remove the instrument panel steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
1	Instrument Cluster Bolt (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Instrument Cluster Upper Bezel
3	Instrument Cluster Procedures Disconnect electrical components. After repairs, refer to Control Module References for programming and set up information.
