Fuse Block- Auxiliary (9C1/9C3)

Harness Routing Views

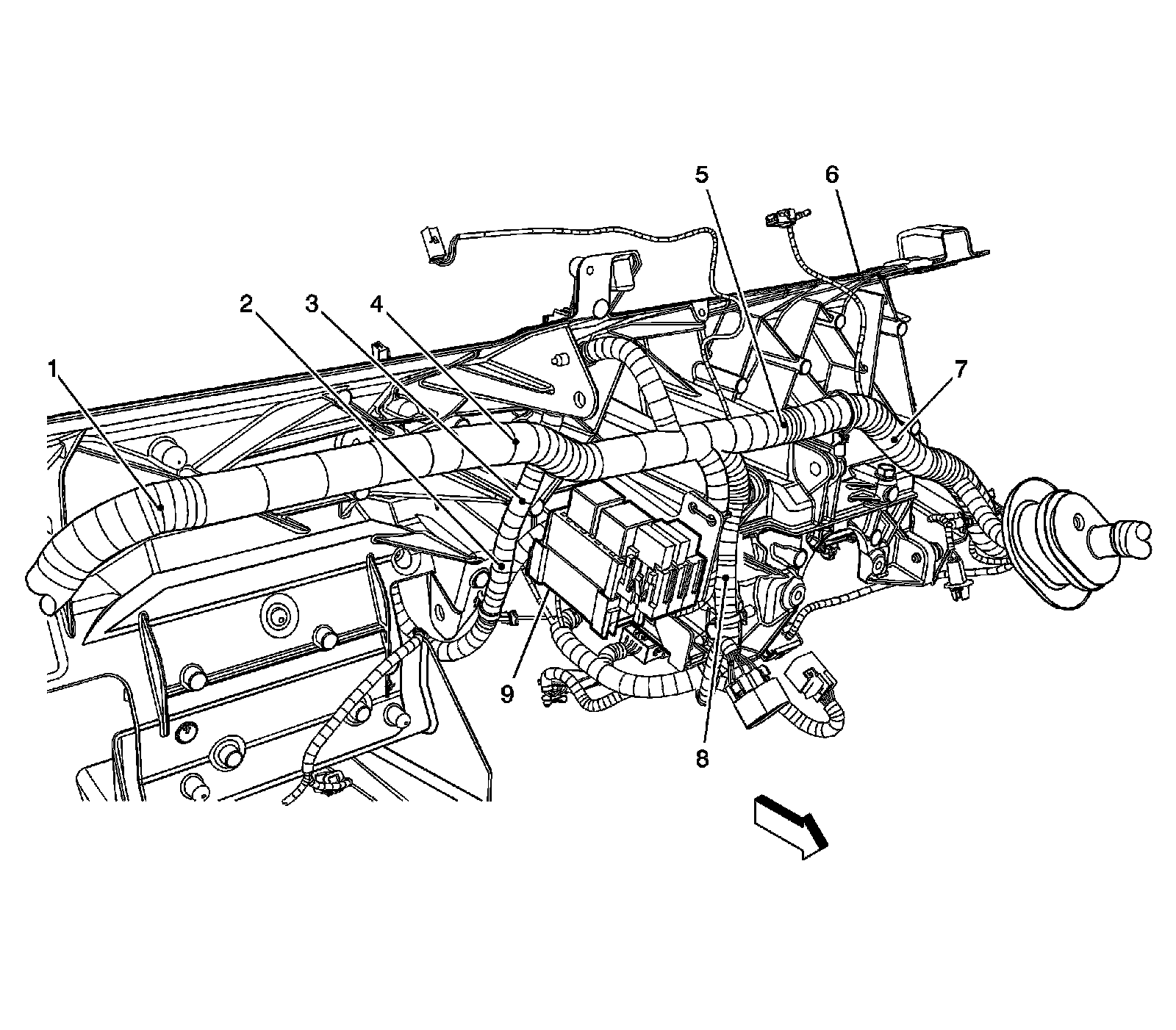

Instrument Panel Harness Routing- Rear of the Instrument Panel Carrier





1 - J282

2 - J203

3 - J239

4 - J250

5 - J218

6 - Instrument Panel Carrier

7 - J259

8 - J269

9 - Fuse Block- Auxiliary (9C1/9C3)
