Inflatable Restraint Side Impact Module- Right

Harness Routing Views

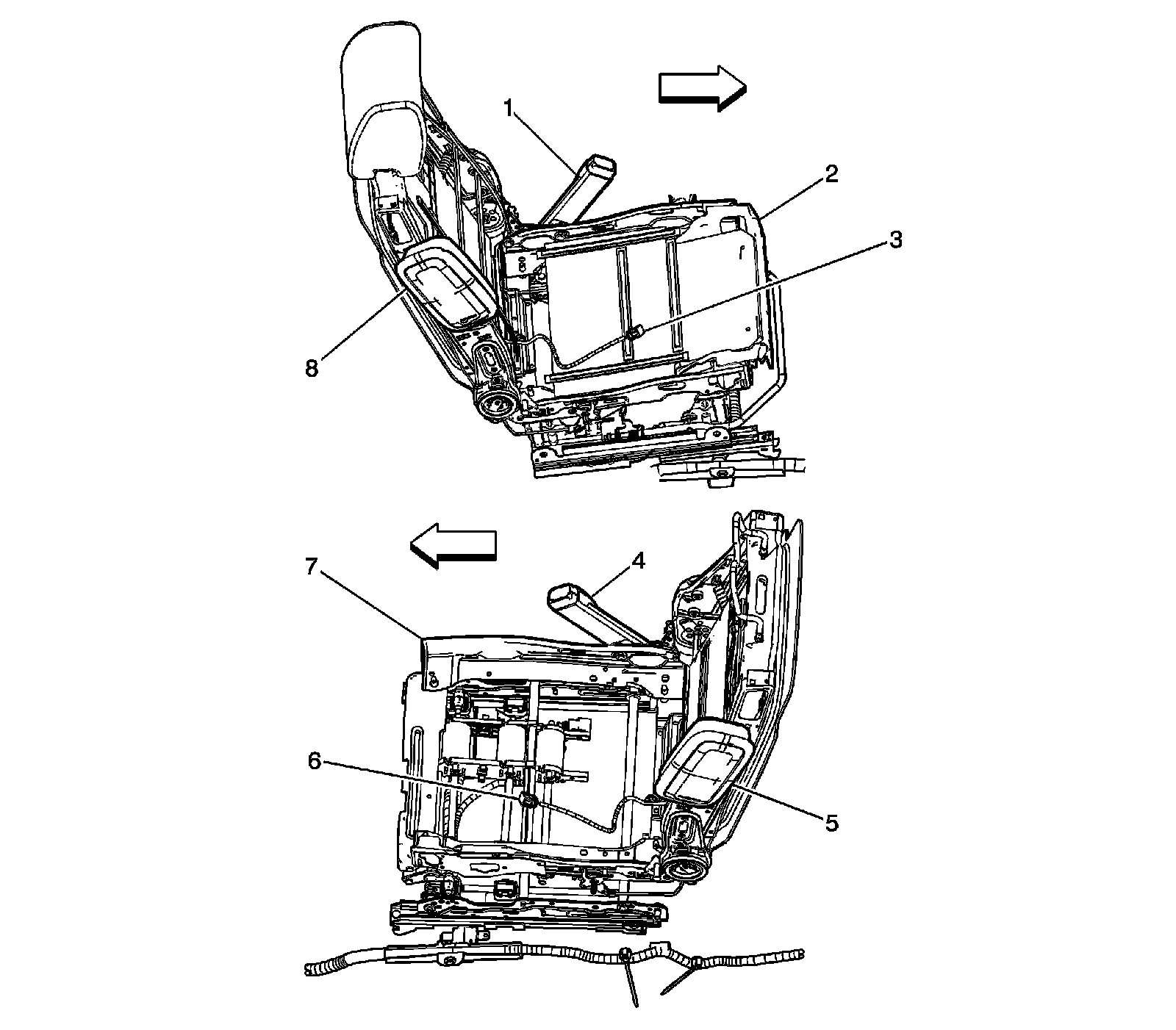

Seat Harness Routing- Airbags and Inlines





1 - Seat Belt Buckle- Passenger

2 - Passenger Seat

3 - X316

4 - Seat Belt Buckle- Driver

5 - Inflatable Restraint Side Impact Module- Left

6 - X315

7 - Driver Seat

8 - Inflatable Restraint Side Impact Module- Right
