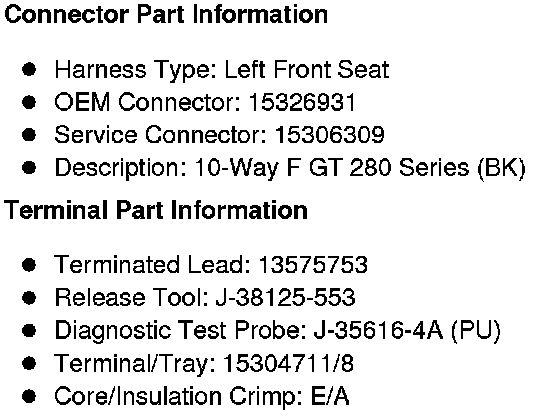

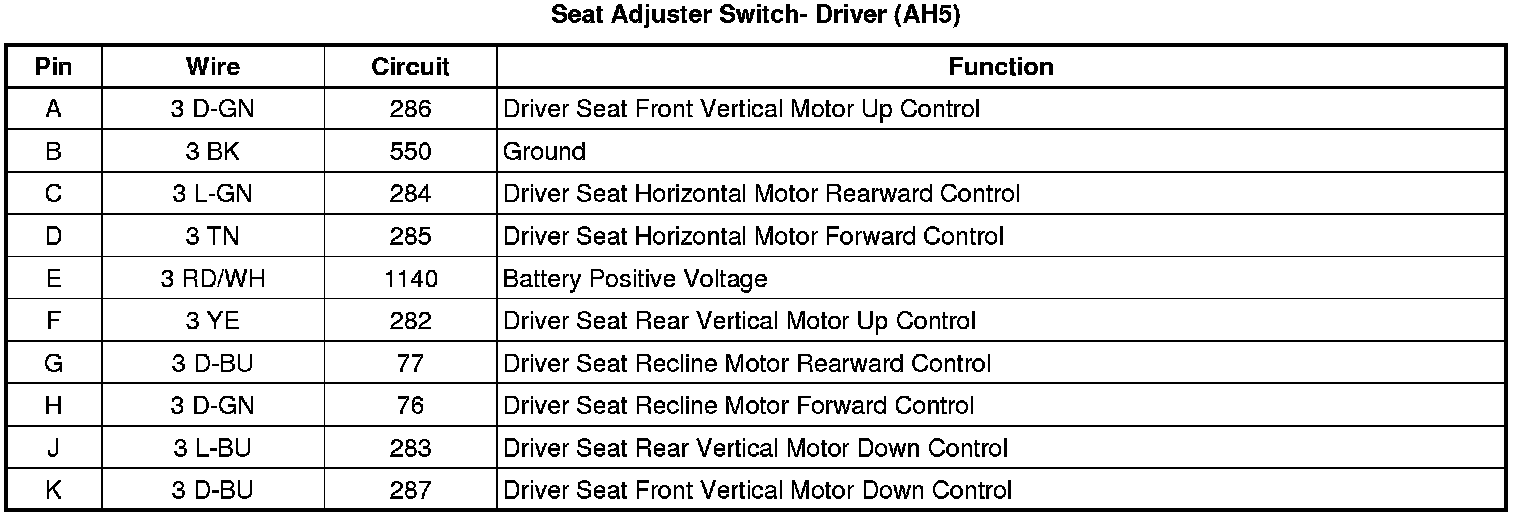

Home >> Chevrolet >> 2012 >> Impala V6-3.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Diagrams >> Seat Adjuster Switch- Driver (AH5)
