Seat Belt Retractor Pretensioner - Driver

Passenger Compartment/Roof Component Views

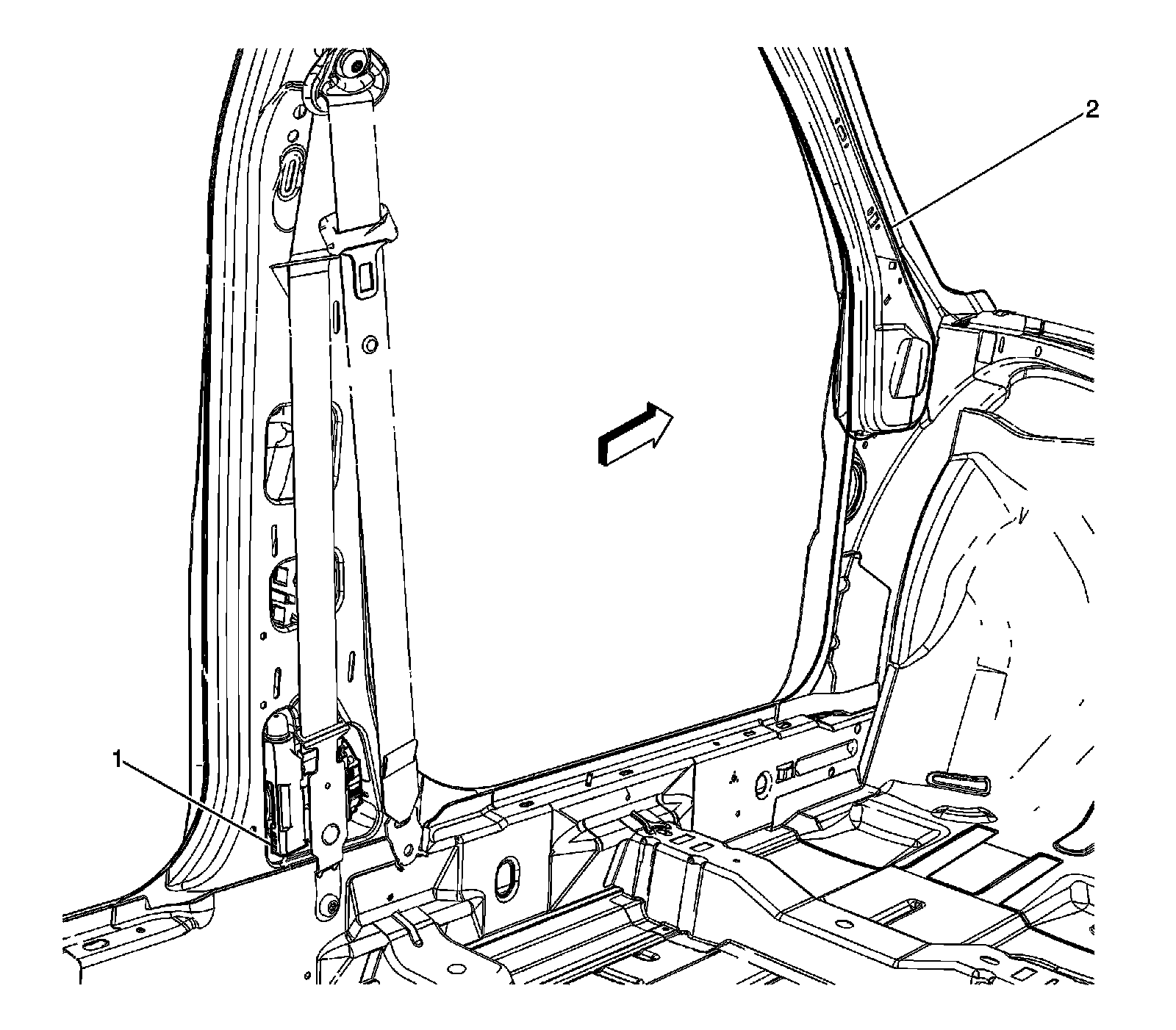

Left B-Pillar Components

1 - Seat Belt Retractor Pretensioner - Driver

2 - Left A-pillar
