Left Front of the Engine Compartment Components (NU5 or NU6)

Front of Vehicle/Engine Compartment Component Views

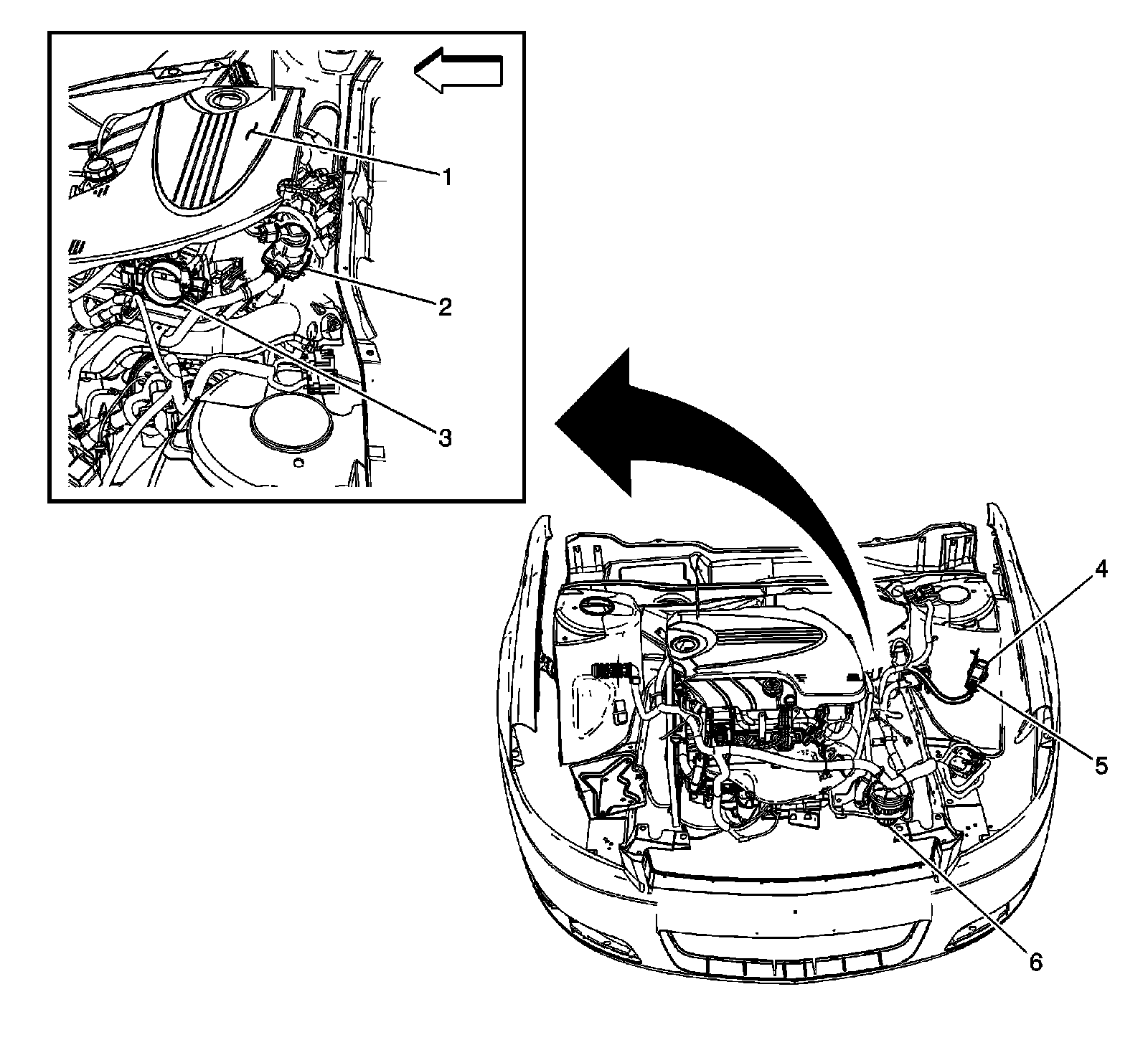

Left Front of the Engine Compartment Components (NU5 or NU6)





1 - Engine Cover

2 - Secondary Air Injection (AIR) Pump Solenoid

3 - Throttle Body

4 - Secondary Air Injection (AIR) Solenoid Relay

5 - Secondary Air Injection (AIR) Pump Relay

6 - Secondary Air Injection (AIR) Pump
