Engine Rear Mount Bracket Replacement

Engine Rear Mount Bracket Replacement

Removal Procedure





1. Remove the rear engine mount (1). Refer to Engine Rear Mount Replacement Engine Rear Mount Replacement.

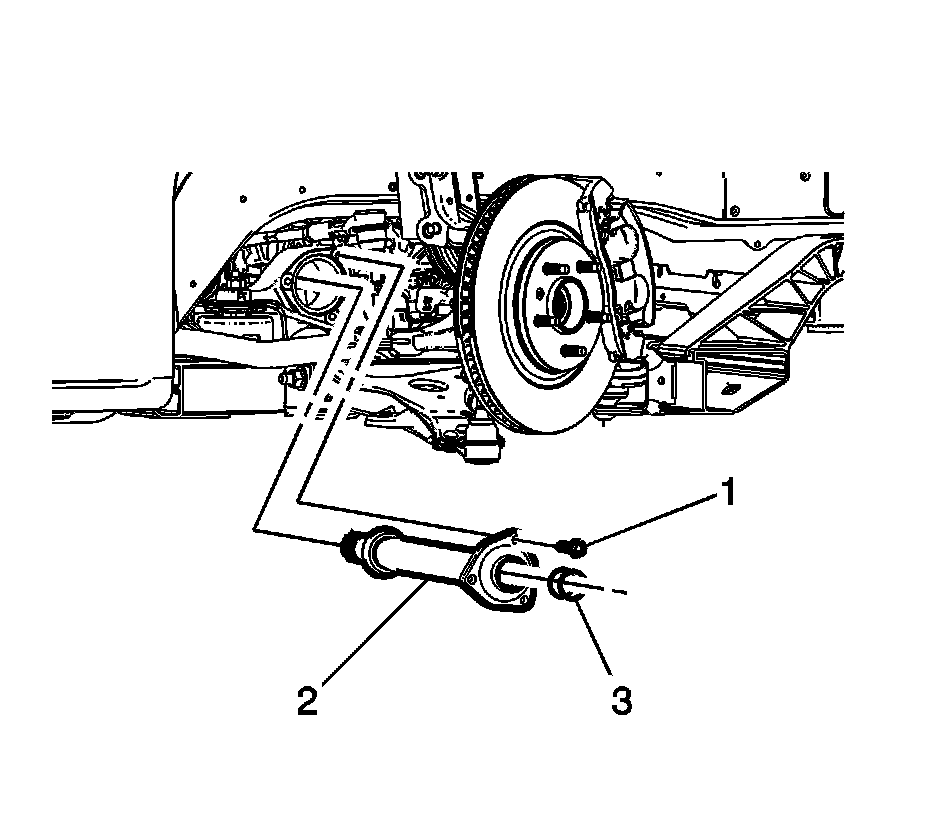

2. Remove the front wheel intermediate shaft (2). Refer to Front Wheel Drive Intermediate Shaft Replacement Front Wheel Drive Intermediate Shaft Replacement.





3. Remove the four rear engine mount bracket fasteners (1).

4. Remove the rear engine mount bracket (2).

Installation Procedure





1. Install the rear engine mount bracket (2).

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the four rear engine mount bracket fasteners (1) and tighten to 58 Nm (43 lb ft).





3. Install the front wheel intermediate shaft (2). Refer to Front Wheel Drive Intermediate Shaft Replacement Front Wheel Drive Intermediate Shaft Replacement.





4. Install the rear engine mount (1). Refer to Engine Rear Mount Replacement Engine Rear Mount Replacement.
