Right Rear Door Harness Routing

Harness Routing Views

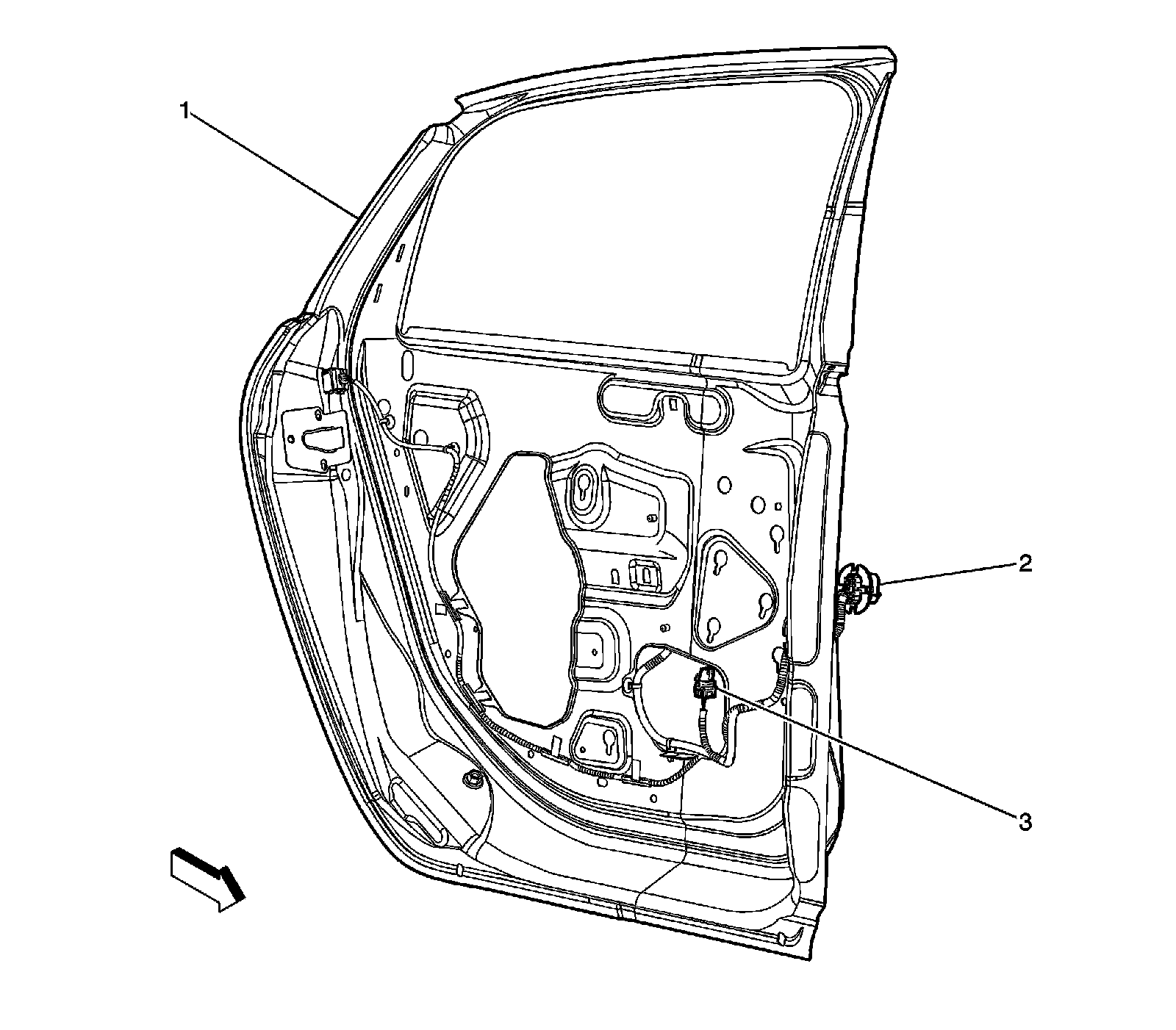

Right Rear Door Harness Routing

1 - Door Frame

2 - X800

3 - Window Motor- Right Rear Connector
