Rear Compartment Lid Harness Routing

Harness Routing Views

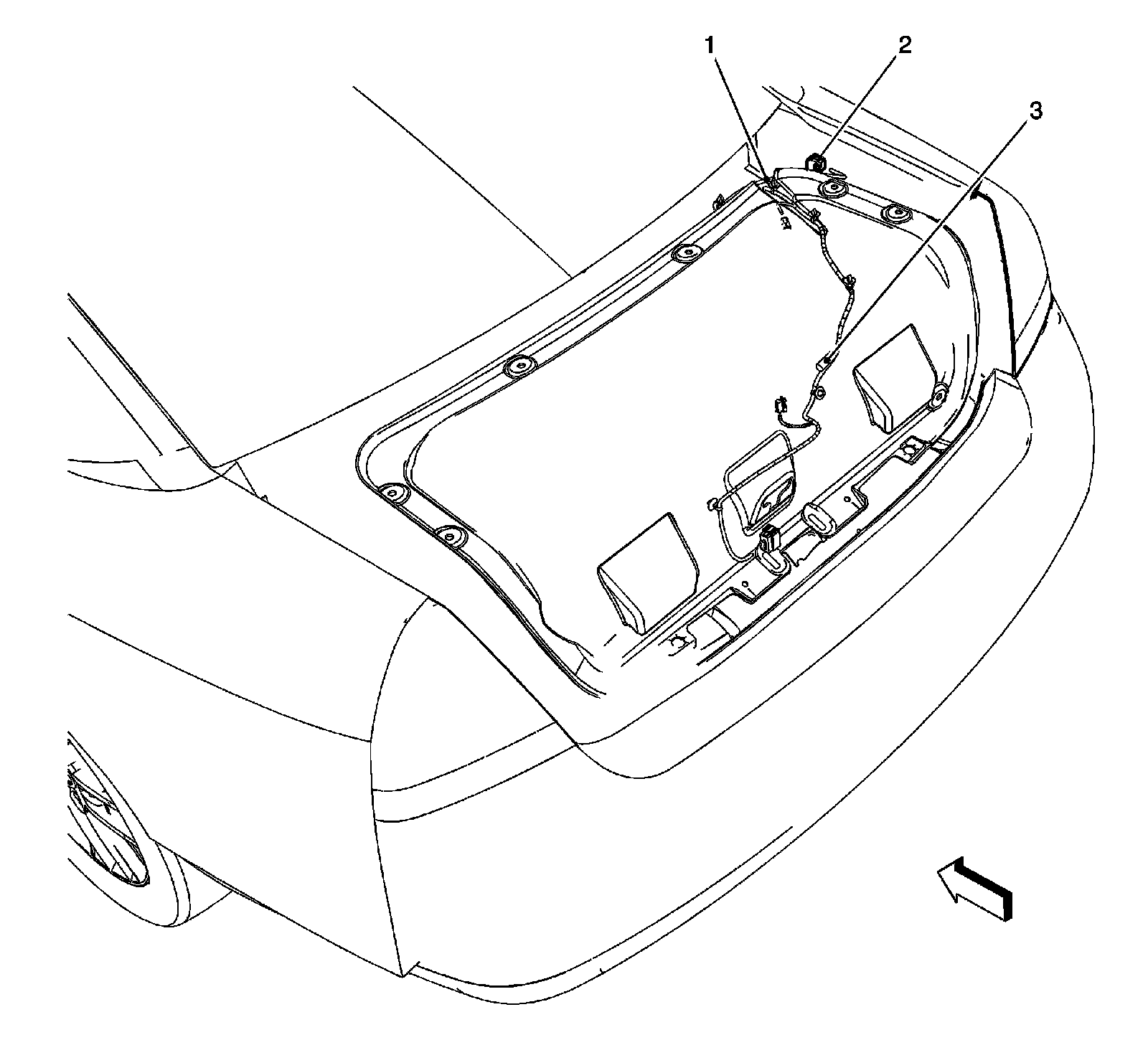

Rear Compartment Lid Harness Routing

1 - J902

2 - X430

3 - J901
