Body Harness Routing- Passenger Compartment Splices

Harness Routing Views

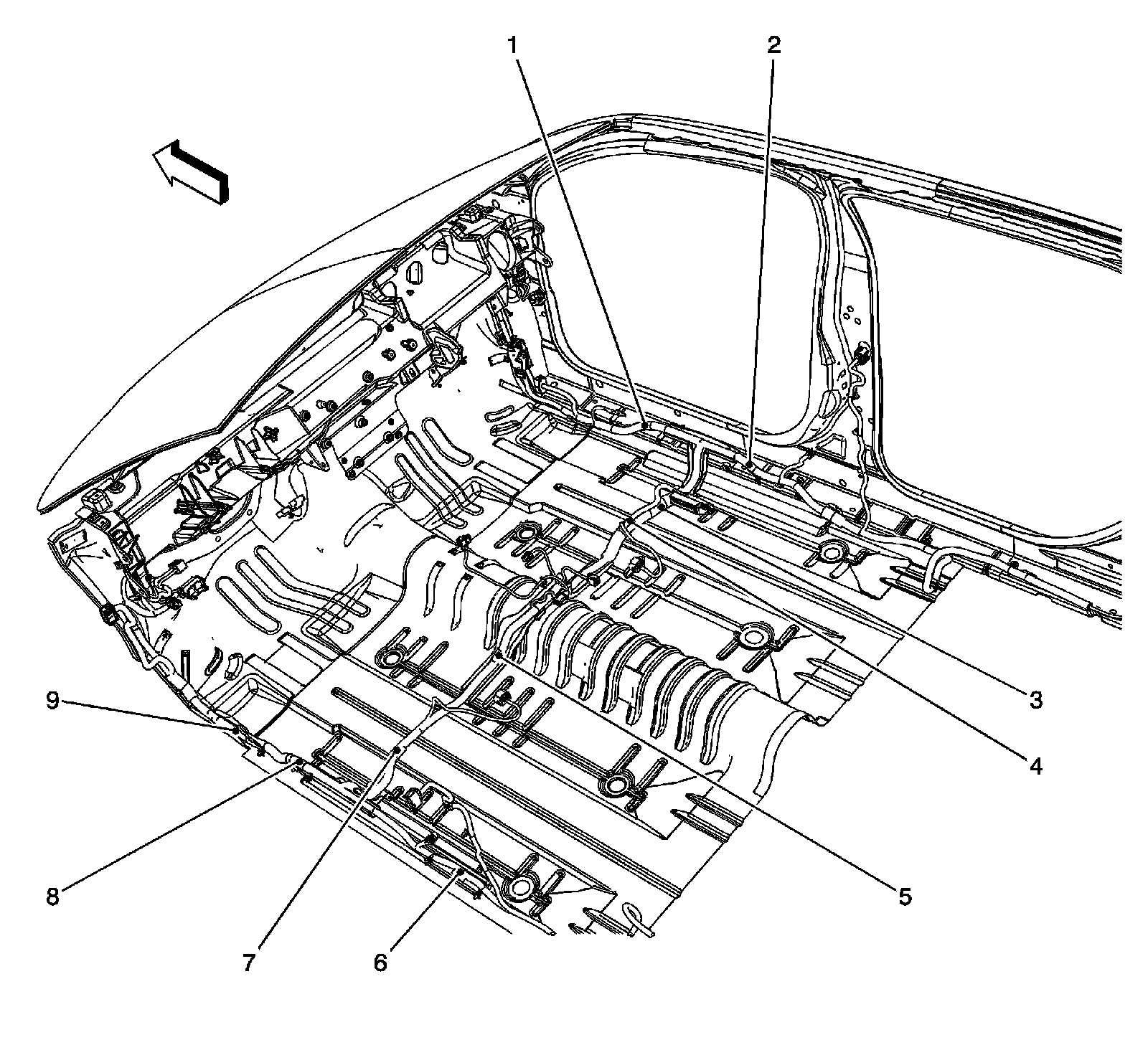

Body Harness Routing- Passenger Compartment Splices





1 - J350

2 - J375

3 - J314

4 - J315

5 - J359

6 - J332

7 - J303

8 - J308

9 - J307
