Power, Ground, and Gauges

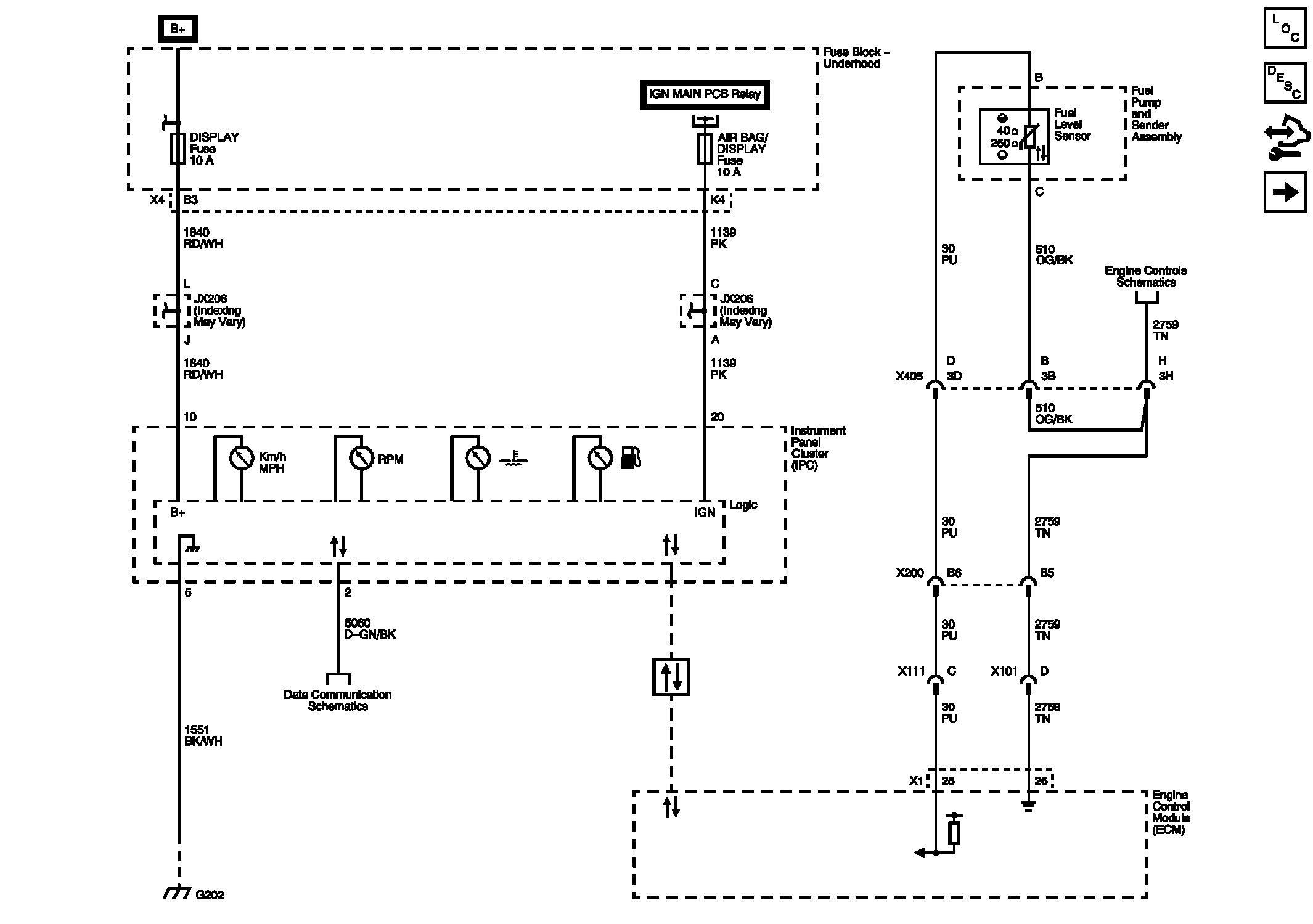

Fig 1: Power, Ground, And Gauges Wiring Schematic

GM2583081

Courtesy of GENERAL MOTORS COMPANY
